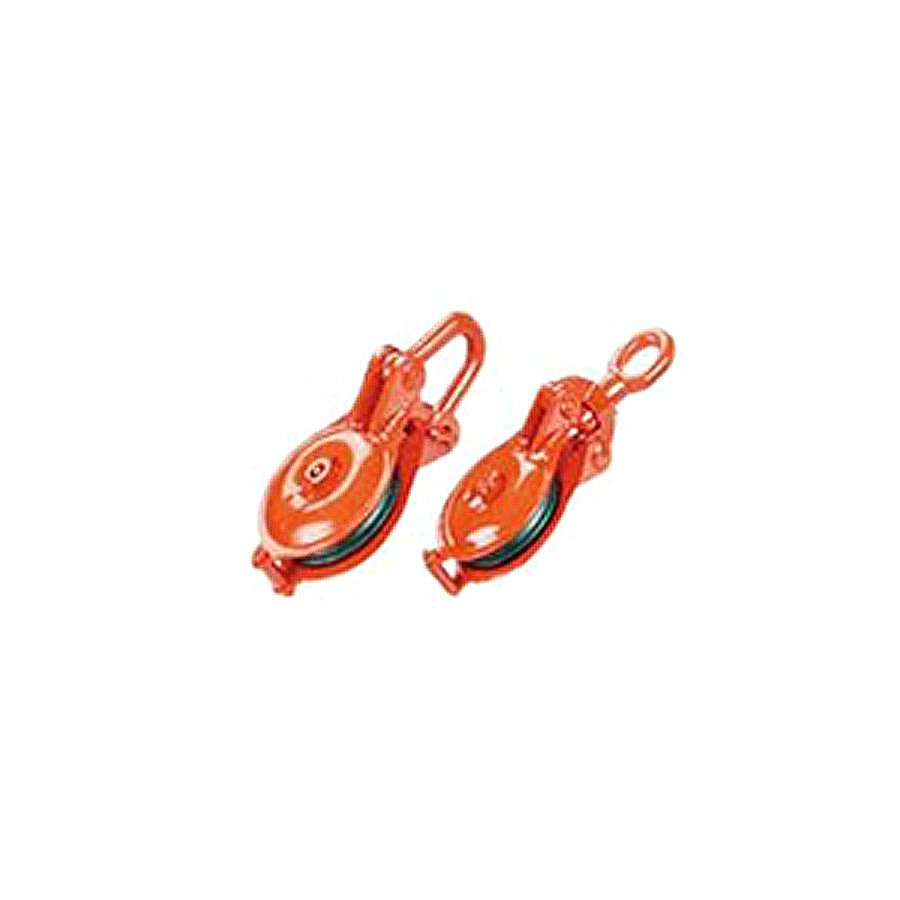

Marine Steel Block HM Type
Product Description

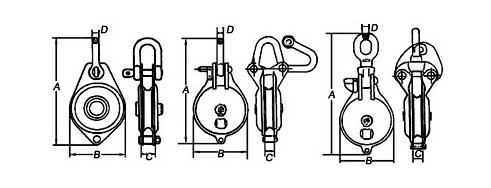

SHEAVE DIA | S.W.L (TON) | MAIN DIMENSIONS (mm) | FOR WIRE DIA (mm) | WEIGHT (kg) | |||
A | B | C | D | ||||
75 | 0.5 | 178 | 85 | 26 | 12 | 8 | 1.1 |
100 | 1 | 235 | 121 | 34 | 16 | 8 | 1.8 |
125 | 1.5 | 305 | 145 | 38 | 18 | 9 | 3.5 |
150 | 2 | 350 | 180 | 41 | 22 | 12 | 5.1 |
200 | 4 | 425 | 225 | 46 | 28 | 16 | 11.5 |
250 | 5 | 495 | 275 | 60 | 28 | 22 | 17 |
75 | 0.5 | 178 | 85 | 50 | 12 | 8 | 1.8 |
100 | 1 | 235 | 121 | 61 | 16 | 8 | 2.8 |
125 | 1.5 | 305 | 145 | 73 | 18 | 9 | 5.5 |
150 | 2 | 350 | 180 | 83 | 22 | 12 | 8.5 |
200 | 4 | 425 | 225 | 93 | 28 | 16 | 16.5 |
250 | 5 | 495 | 275 | 115 | 28 | 22 | 25.5 |
