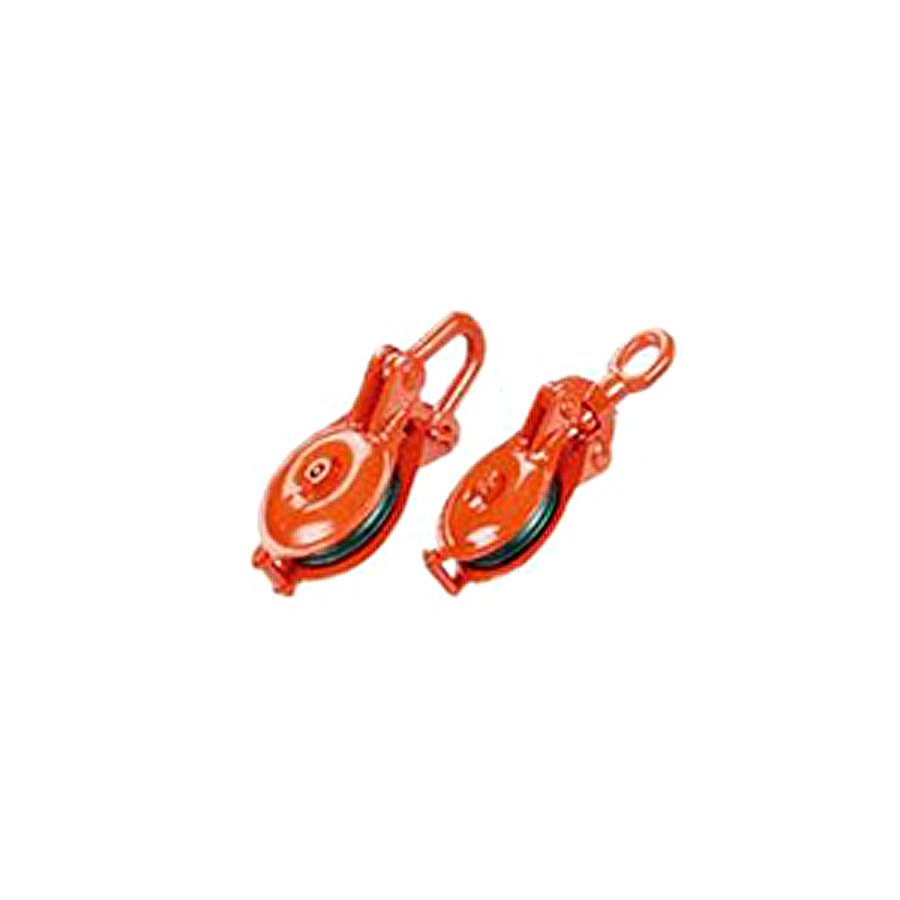

Marine Steel Block EM Type
Product Description

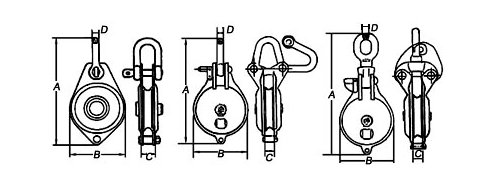

SHEAVE DIA | S.W.L(TON) | MAIN DIMENSIONS (mm) | FOR WIRE DIA (mm) | |||
A | B | C | D | |||
75 | 0.5 | 230 | 85 | 26 | 12 | 8 |
100 | 1 | 285 | 121 | 34 | 16 | 8 |
125 | 1.5 | 346 | 145 | 38 | 18 | 9 |
150 | 2 | 419 | 180 | 41 | 22 | 12 |
200 | 4 | 517 | 225 | 46 | 28 | 16 |
250 | 5 | 655 | 275 | 60 | 28 | 22 |
75 | 0.5 | 230 | 85 | 50 | 12 | 8 |
100 | 1 | 285 | 121 | 61 | 16 | 8 |
125 | 1.5 | 335 | 145 | 73 | 18 | 9 |
150 | 2 | 365 | 180 | 83 | 22 | 12 |
200 | 4 | 517 | 225 | 93 | 28 | 16 |
250 | 5 | 600 | 275 | 115 | 28 | 22 |
