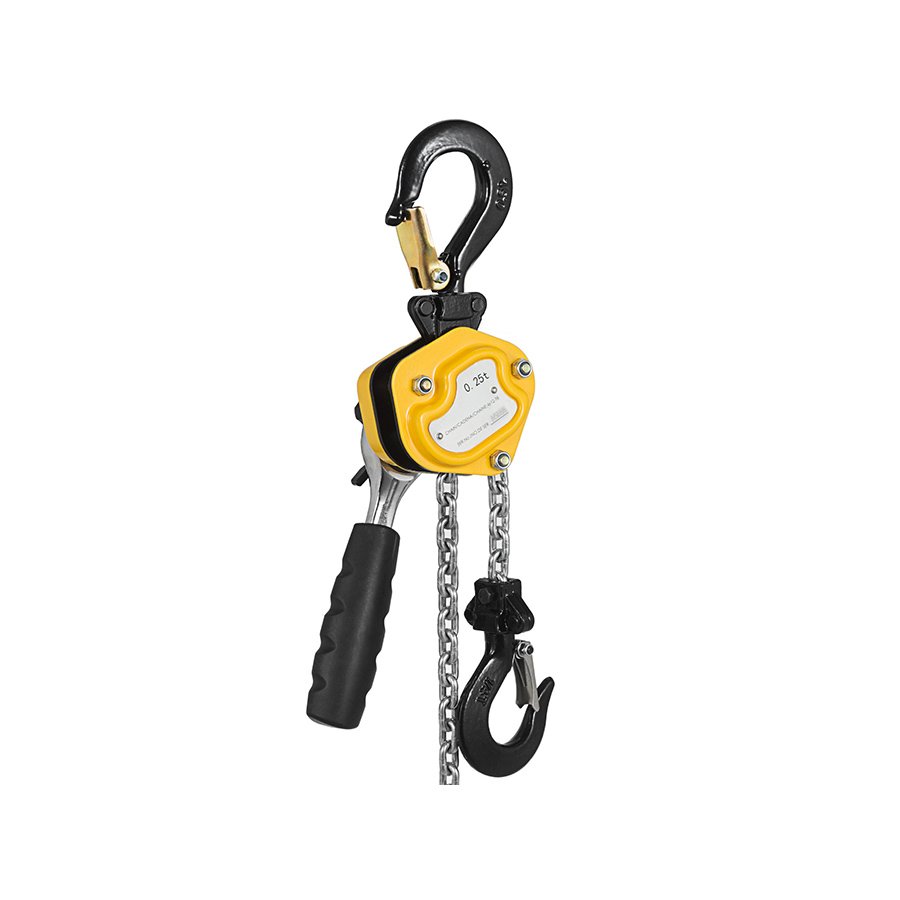

Mini Manual Hoist Lever Block DC 650
Capicity ranges from 0.25t to 5t
Subminiature, super light, simple structure
Subminiature and super light design enable to be operated in higher or narrow places
Low weight, small mounting sizes and small lever force at full load
Premium grade alloy load chain
Drop-forged and expertly heat treated hooks for great strength and longer wearing.
Product Description
Model | L650-0.25A | L650-0.5A | L650-0.75A | L650-1.5A | L650-2.5A | L650-2.5A | L650-5A | L650-5A | |
Capacity | tons | 0.25 | 0.5 | 0.75 | 1.5 | 2.5 | 3 | 5 | 6 |
Satandard lift | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Running test load | KN | 375 | 750 | 1125 | 2250 | 3750 | 4500 | 7500 | 9000 |
Effort required to lift rated load | N | 260 | 260 | 220 | 240 | 330 | 350 | 350 | 380 |
Strands of load chain | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | |
Diameter of load chain | mm | 4 | 4 | 5 | 7 | 9 | 9 | 9 | 9 |

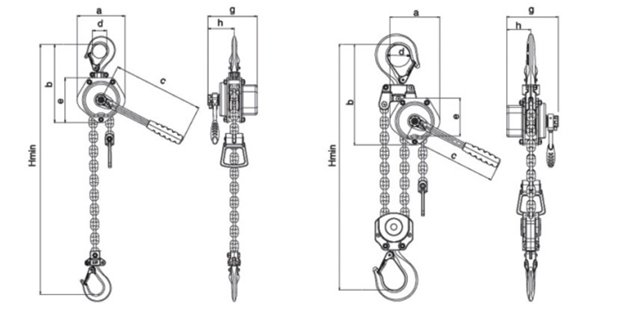

Dimension (mm) | A | 86 | 95 | 121 | 139 | 173 | 173 | 173 | 173 |
B | 155 | 178 | 204 | 235 | 286 | 286 | 340 | 340 | |
C | 170 | 170 | 240 | 240 | 335 | 385 | 335 | 385 | |
D | 30 | 35 | 30 | 42 | 52 | 52 | 60 | 60 | |
E | 79 | 87 | 112 | 133 | 162 | 162 | 162 | 162 | |
F | 245 | 285 | 335 | 365 | 448 | 448 | 600 | 600 | |
G | 97 | 117 | 124 | 159 | 178 | 178 | 178 | 178 | |
H | 77 | 80 | 84 | 90 | 97 | 97 | 97 | 97 | |
Net weight | kg | 2.2 | 3.2 | 5 | 7.6 | 14.5 | 14.5 | 22.5 | 22.5 |
Extra weight per metre of extra lift | kg | 0.346 | 0.346 | 0.541 | 1.1 | 1.8 | 1.8 | 1.8 | 1.8 |
