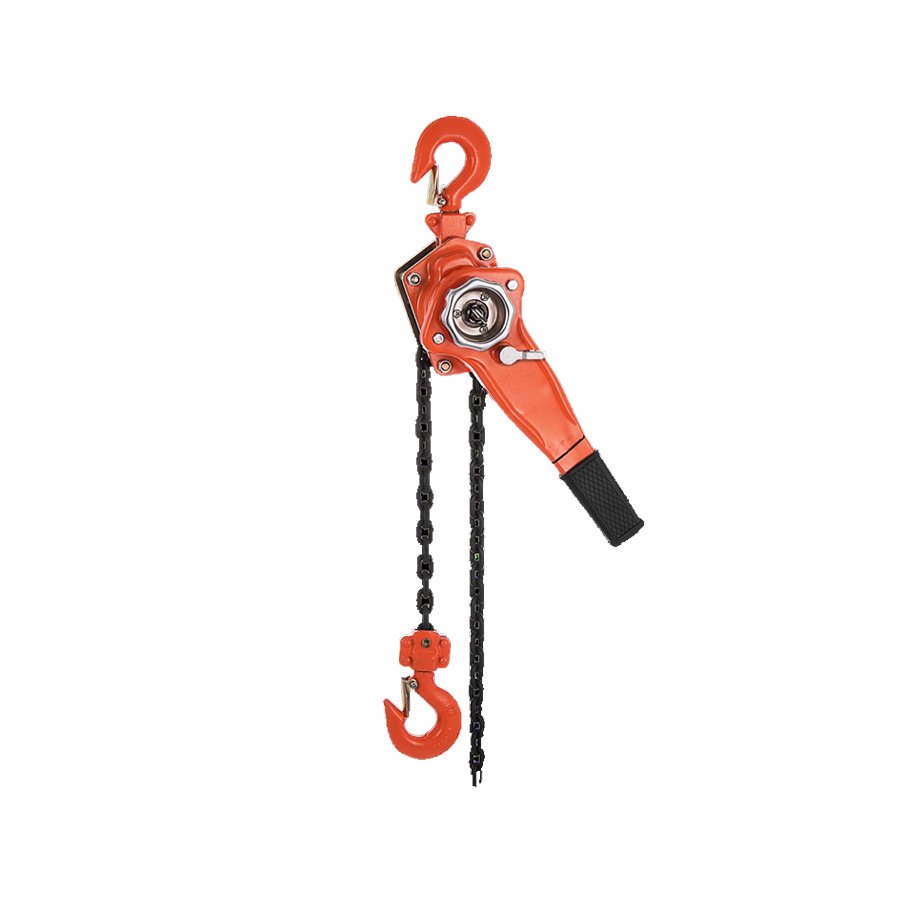

Lever Block LB-B DH VG
MANUAL LEVER BLOCK SPECIFICATIONCompact design and robust, deep drawn, stamped steel constructionHigh quality materials ensure light weight without infringing reliabilityLow weight, small mounting sizes and small lever force at full loadPremium grade alloy load chainDrop-forged and expertly heat treated hooks for great strength and longer wearing.Capicity ranges from 0.75t to 9tDefferent lifting length is available at requirement.
Product Description
Model LB-B | 80 | 100 | 160 | 320 | 630 | 900 | |
Capacity (ton) | 0.8 | 1 | 1.6 | 3.2 | 6.3 | 9 | |
Standard lifting height (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
Running test load (t) | 1.2 | 1.5 | 2.4 | 4.8 | 9.45 | 13.5 | |
Headtoom (mm) | 85 | 100 | 160 | 320 | 630 | 900 | |
Pulling efforts (kg) | 22 | 30 | 31 | 38 | 39 | 40 | |
Chainfall | 1 | 1 | 1 | 1 | 2 | 3 | |
Load chain diameter (mm) | 5.6×15.7 | 5.6×15.7 | 7.1×19.9 | 10×28 | 10×28 | 10×28 | |
Net weight (kg) | 6.3 | 6.3 | 8.5 | 14.2 | 26 | 40 | |

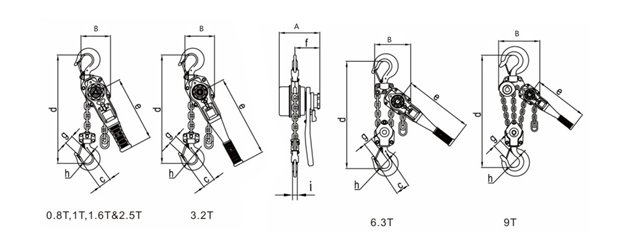

Dimensions(mm) | H | 300 | 300 | 350 | 395 | 540 | 680 |
A | 150 | 150 | 168 | 201 | 201 | 201 | |
B | 100 | 100 | 104 | 118 | 118 | 118 | |
C | 119 | 119 | 126 | 159 | 218 | 298 | |
D | 24 | 24 | 32 | 35 | 44 | 60 | |
L | 245 | 245 | 265 | 415 | 415 | 415 | |
