For light duty purpose and limited using life
Premium Grade 80 Alloy Load Chain and Zinc Plated Hand Chain.
Capicity ranges from 0.5t to 20t

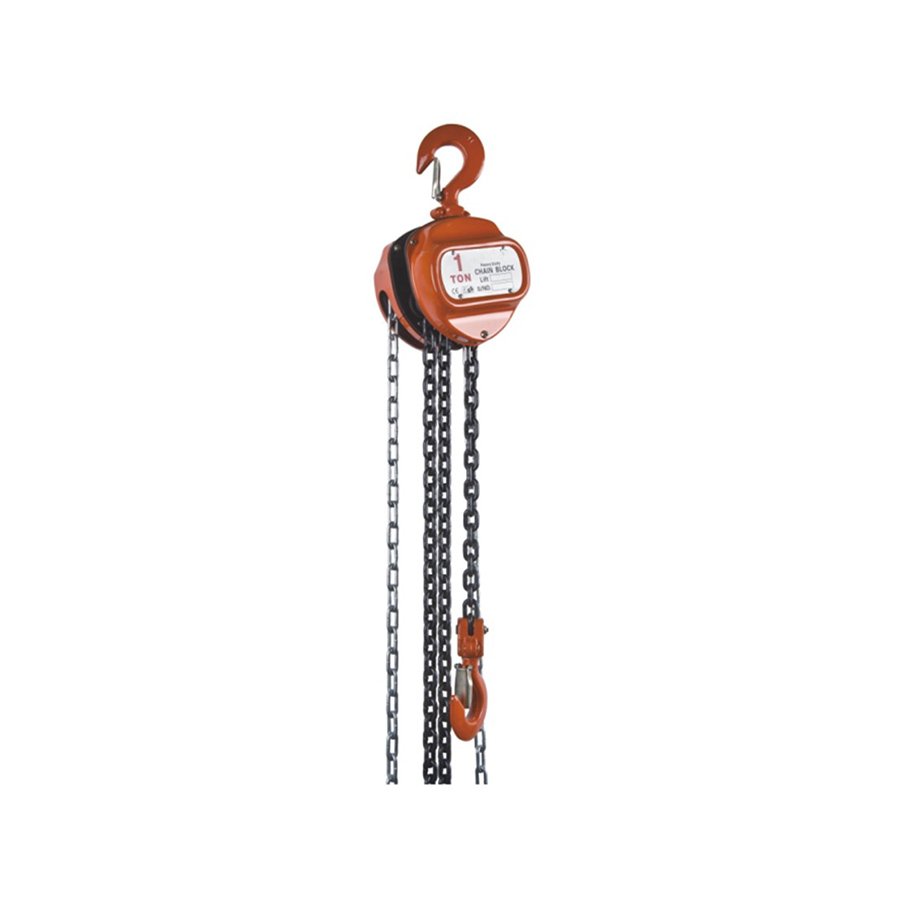

SRCK A620 Chain Block Chain Hoist
For light duty purpose and limited using life
Premium Grade 80 Alloy Load Chain and Zinc Plated Hand Chain.
Capicity ranges from 0.5t to 20t
Product Description

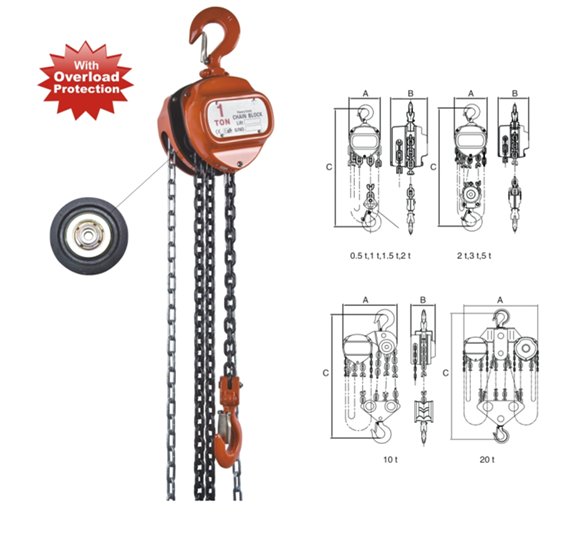

ITEM CODE | Capacity t | Standard lift m | Running test load t | No. of fails of load chain | Load chain dia mm | A | B | C | N.W. kg |
SRCK01 | 0.5 | 2.5 | 0.75 | 1 | 6 | 113 | 125 | 270 | 9 |
SRCK02 | 1 | 2.5 | 1.5 | 1 | 6 | 131 | 150 | 317 | 11.5 |
SRCK03 | 1.5 | 2.5 | 2.25 | 1 | 8 | 146 | 183 | 399 | 17.5 |
SRCK04 | 2 | 3 | 3 | 1 | 6 | 131 | 150 | 414 | 16 |
SRCK05 | 3 | 3 | 4.5 | 2 | 8 | 146 | 183 | 465 | 27 |
SRCK06 | 5 | 3 | 7.5 | 2 | 10 | 169 | 213 | 636 | 43 |
SRCK07 | 10 | 3 | 15 | 4 | 10 | 169 | 405 | 750 | 75 |
SRCK08 | 20 | 3 | 30 | 8 | 10 | 191 | 595 | 1000 | 185 |
