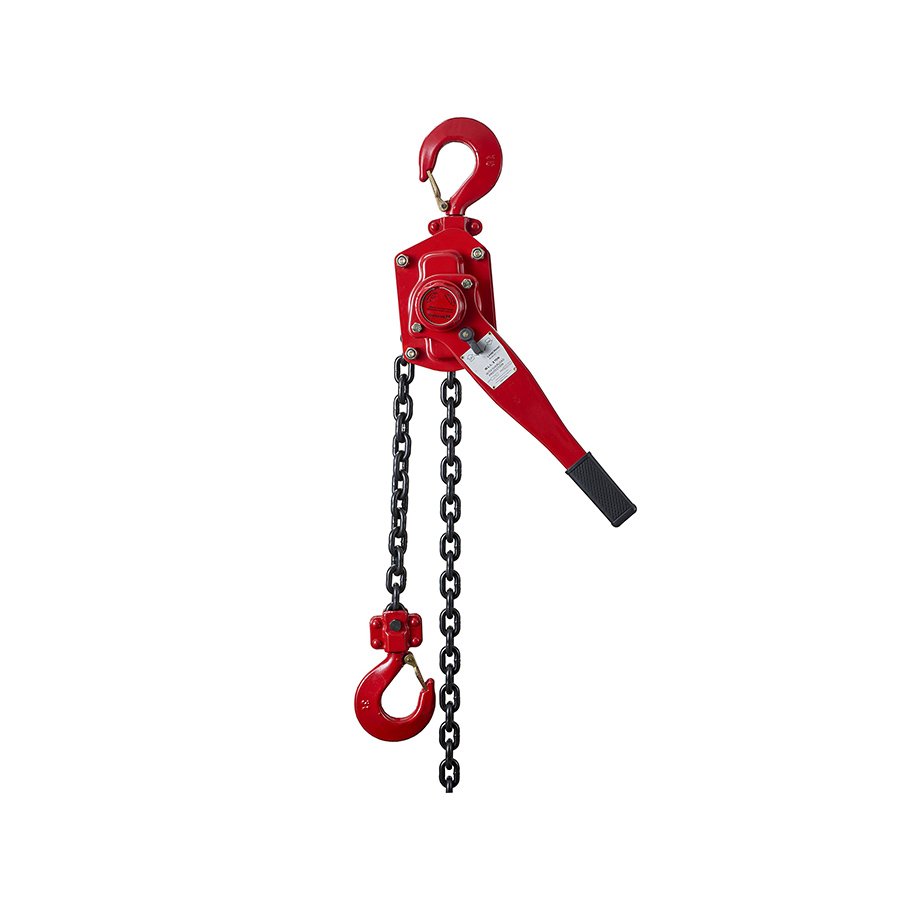

Lever Block LB-A VP 616

3
Lever Block LB-A VP 616

Lever Block LB-A VP 616

Technical Features:
Superior Grad 800 load chain-wafios link, Din standard.
Forged and Heat Treated load Hooks with batch traceability and stretch indicators
360° handle rotation with stroke to ratchet indicators
Double pawl Brake linings
Forged Safety Latch
Sealed Roller Bearings
100% Load Tested to 1.5*WLL
MBL of 400% of WLL
2000 Cycle Batch Test
Asbestos free brake linings


Product Description

Model LB-A

75

100

150

200

300

600

900

Capacity (ton)

0.75

1

1.5

2

3

6

9

Standard lifting   height (m)

1.5

1.5

1.5

1.5

1.5

1.5

1.5

Running test   load (t)

1.13

1.5

2.25

3

4.5

9

13.5

Pulling efforts   (kg)

14

16

22

26

32

34

36

Chainfall

1

1

1

1

1

2

3

Load chain   diameter (mm)

6

6

8

8

10

10

10

Net weight (kg)

6.2

6.5

10.8

11.2

18.5

32.5

47

Dimensions(mm)

A

148

148

176

176

195

195

195

B

280

280

410

410

410

410

410

C

32

32

36

36

46

46

57

D

135

135

155

155

211

254

319

E

320

320

380

380

480

600

700

lever block A series:
Remarks:in addition the standard lifr we accept orders to 12m lift
