CB-B: CB-B series has different design and appearance, but same quality as CB-A serious.
Technical Parameter of CB-B
Chain Block CB-B Series
The chain block have got TVU/GS and CE Certificates

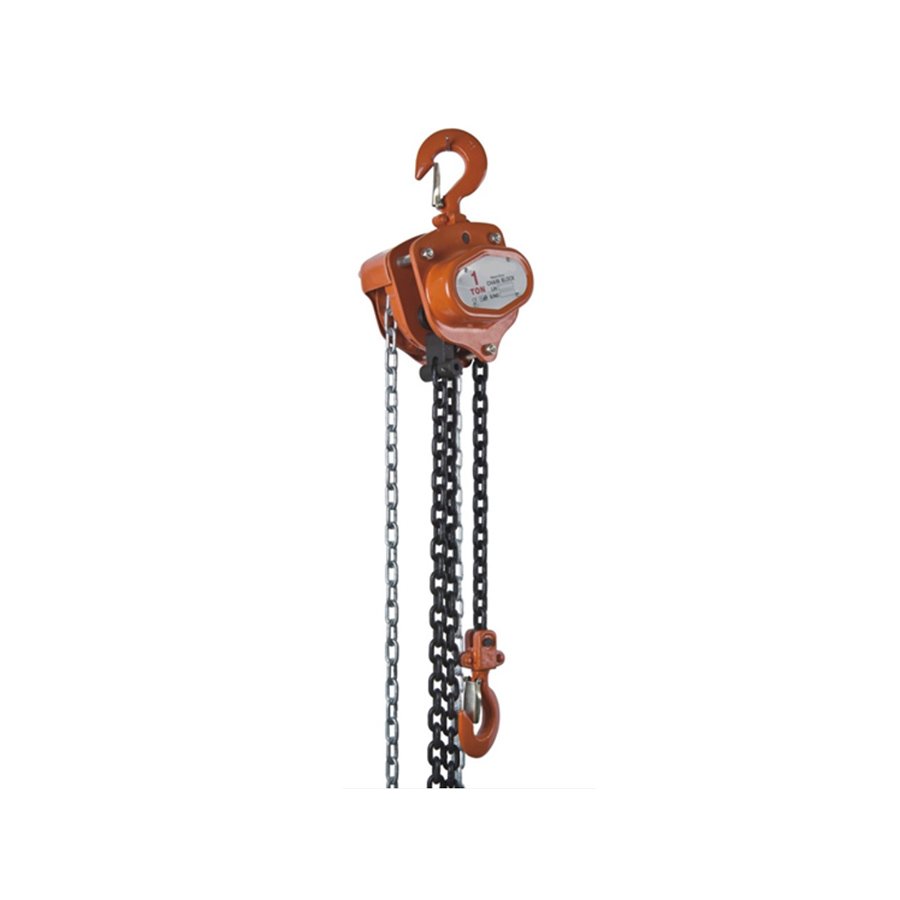

Chain Block VC-B
CB-B: CB-B series has different design and appearance, but same quality as CB-A serious.
Technical Parameter of CB-B
Chain Block CB-B Series
The chain block have got TVU/GS and CE Certificates
Product Description

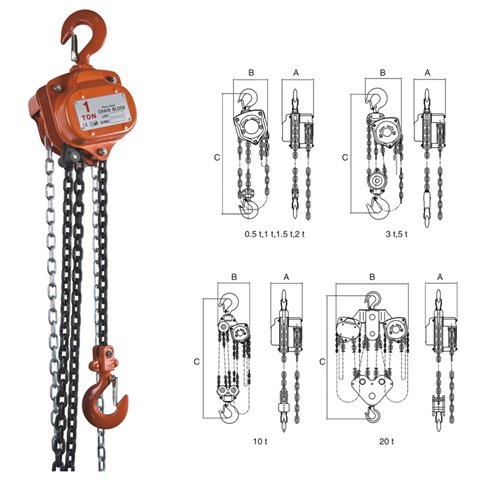

ITEM CODE | Capacity t | Standard lift m | Running test load t | No. of fails of load chain | Load chain dia mm | A | B | C | N.W. kg |
SRVCB01 | 0.5 | 2.5 | 0.75 | 1 | 5 | 129 | 136 | 270 | 8.4 |
SRVCB02 | 1 | 2.5 | 1.5 | 1 | 6.3 | 151 | 145 | 317 | 12 |
SRVCB03 | 1.5 | 2.5 | 2.25 | 1 | 7.1 | 150.5 | 164.5 | 399 | 16.2 |
SRVCB04 | 2 | 3 | 3 | 1 | 8 | 161.5 | 187 | 414 | 20 |
SRVCB05 | 3 | 3 | 4.5 | 2 | 7.1 | 150.5 | 164.5 | 465 | 24 |
SRVCB06 | 5 | 3 | 7.5 | 2 | 9 | 161.5 | 211 | 636 | 41 |
SRVCB07 | 10 | 3 | 15 | 4 | 9 | 207 | 398 | 798 | 79 |
SRVCB08 | 20 | 3 | 30 | 8 | 9 | 215 | 650 | 890 | 193 |
SRVCB09 | 30 | 3 | 45 | 12 | 9 | 350 | 680 | 1380 | 220 |
SRVCB10 | 50 | 3 | 75 | 24 | 9 | 406 | 962 | 2578 | 1092 |
