CB-A: CB-A series Chain block lifting is of modern design, featured by a very sturdy construction and safe operation, in combination with compactness and a low operating force. The same type with HSZ-622A.
Size: 0.5ton-50ton

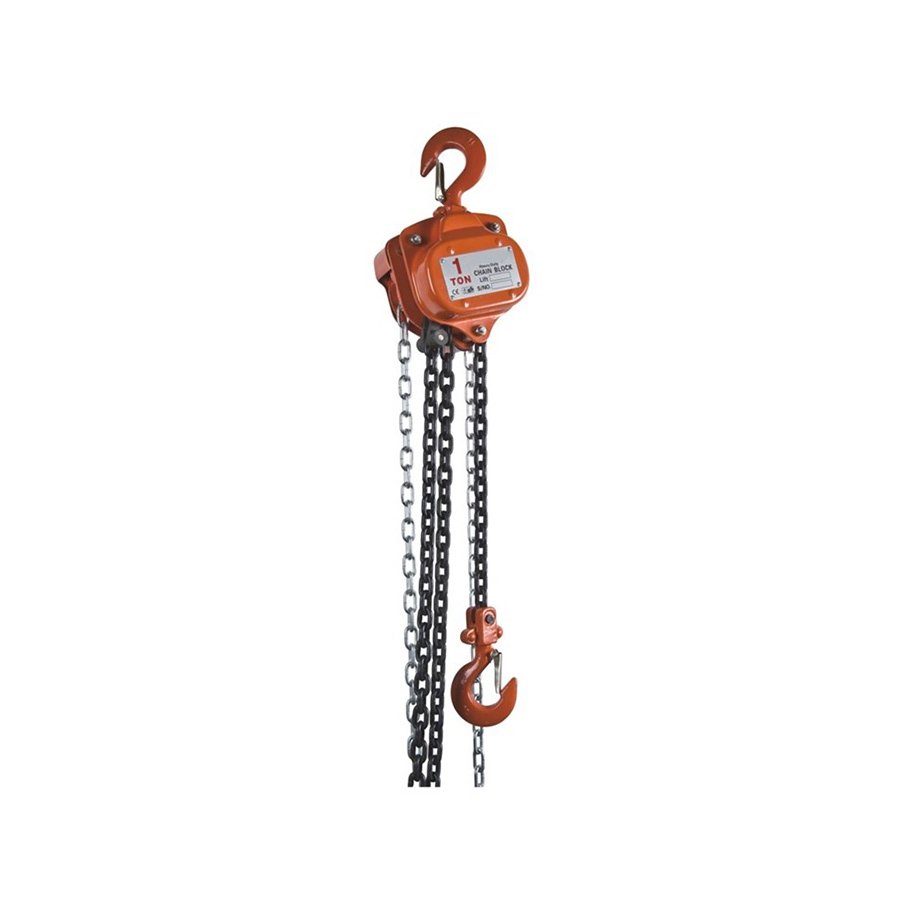

Chain Block VC-A CB-A 622A
CB-A: CB-A series Chain block lifting is of modern design, featured by a very sturdy construction and safe operation, in combination with compactness and a low operating force. The same type with HSZ-622A.
Size: 0.5ton-50ton
Product Description
Technical Parameter of CB-A
material:high tensile alloy steel chain and hooks;
finish:powder coated
proof load:1.5 times of limit
Features of chain block :
Compact and light weight for flexible application;
Heat treated steel plates, gears, shafts safety latches;
Forged upper, low hooks with forged steel safety latches.

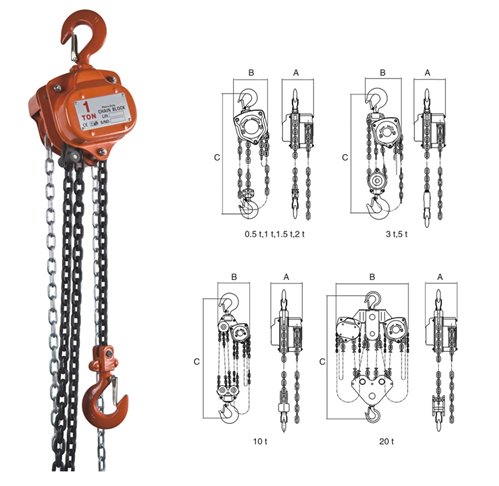

ITEM CODE | Capacity t | Standard lift m | Running test load t | No. of fails of load chain | Load chain dia mm | A | B | C | N.W. kg |
SRVCA01 | 0.5 | 2.5 | 0.75 | 1 | 5 | 129 | 136 | 270 | 8.4 |
SRVCA02 | 1 | 2.5 | 1.5 | 1 | 6.3 | 151 | 145 | 317 | 12 |
SRVCA03 | 1.5 | 2.5 | 2.25 | 1 | 7.1 | 150.5 | 164.5 | 399 | 16.2 |
SRVCA04 | 2 | 3 | 3 | 1 | 8 | 161.5 | 187 | 414 | 20 |
SRVCA05 | 3 | 3 | 4.5 | 2 | 7.1 | 150.5 | 164.5 | 465 | 24 |
SRVCA06 | 5 | 3 | 7.5 | 2 | 9 | 161.5 | 211 | 636 | 41 |
SRVCA07 | 10 | 3 | 15 | 4 | 9 | 207 | 398 | 798 | 79 |
SRVCA08 | 20 | 3 | 30 | 8 | 9 | 215 | 650 | 890 | 193 |
SRVCA09 | 30 | 3 | 45 | 12 | 9 | 350 | 680 | 1380 | 220 |
SRVCA10 | 50 | 3 | 75 | 24 | 9 | 410 | 965 | 1950 | 1092 |
