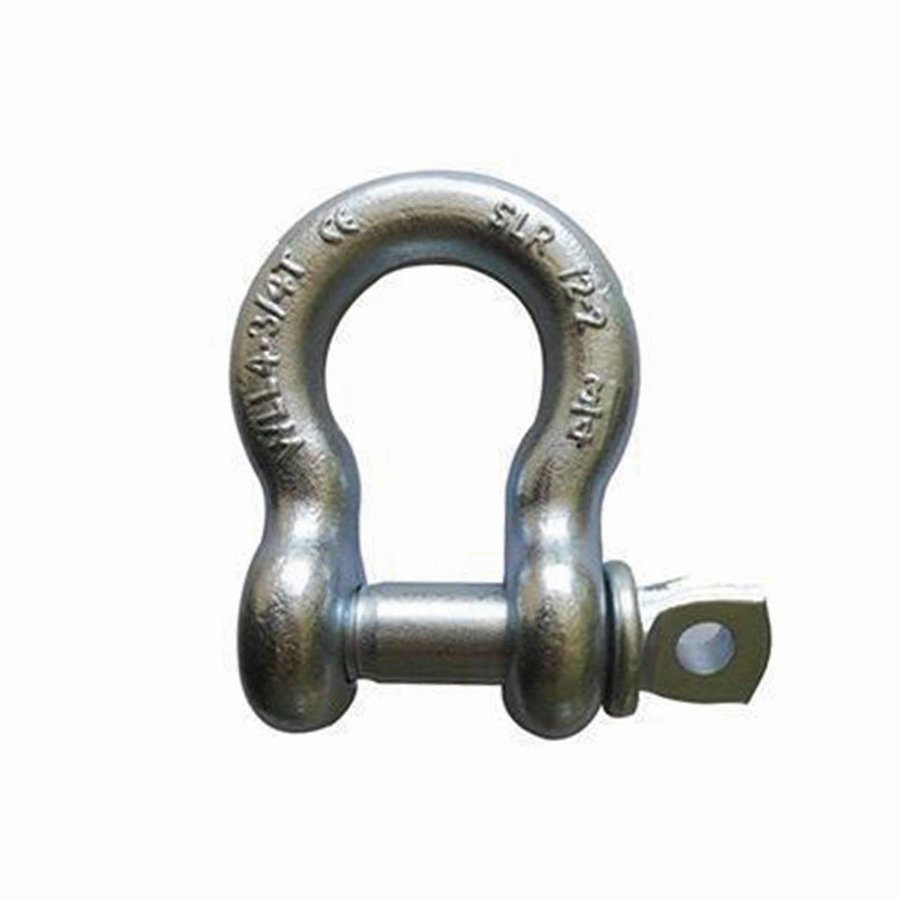

SR364 HIGH STRENGTH BOLT TYPE BOW SHACKLE
Features
● It can be used for lifting.
● It is forged and then heat treated.
● The surface treatment of shackle: hot galvanizing/cold galvanizing.
● Nut surface treatment: cold galvanizing.
● Bolt surface treatment: hot galvanizing/cold galvanizing/plastic spraying.
● Ultimate load is 6 times the Working Load Limit.
● It can not be used beyond working load limit.
● Normal mark: 3/8 WLL1T CE SLR
Product Description

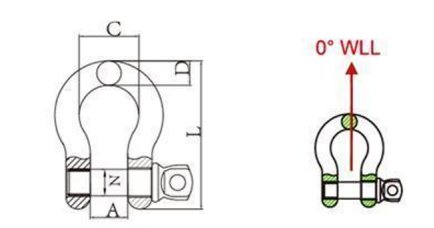

Parameters (Unit: mm)
Item Code | Weight/lbs | Working Load Limit/t | Breaking Load/t | A±1.2 | C±1.2 | D±0.5 | N±0.2 | L1±2 |
SR-364-3/16 | 0.06 | 0.33 | 1.98 | 9.65 | 15.3 | 4.8 | 6 | 37.5 |
SR-364-1/4 | 0.10 | 0.5 | 3 | 12 | 19.8 | 6.4 | 7.5 | 46.8 |
SR-364-5/16 | 0.19 | 0.75 | 4.5 | 13.5 | 21.4 | 8 | 9.5 | 53 |
SR-364-3/8 | 0.31 | 1 | 6 | 16.8 | 26.2 | 9.7 | 11.5 | 63.2 |
SR-364-7/16 | 0.38 | 1.5 | 9 | 19.1 | 29.5 | 11.2 | 13.4 | 78 |
SR-364-1/2 | 0.73 | 2 | 12 | 20.6 | 33.3 | 12.7 | 15.5 | 83.3 |
SR-364-5/8 | 1.37 | 3.25 | 19.5 | 27 | 42.9 | 16 | 19.5 | 106.5 |
SR-364-3/4 | 2.36 | 4.75 | 28.5 | 32 | 50.8 | 20.6 | 21.2 | 126.5 |
SR-364-7/8 | 3.62 | 6.5 | 39 | 36.6 | 58 | 24.6 | 24 | 148 |
SR-364-1 | 5.03 | 8.5 | 51 | 43 | 68.4 | 27 | 26.5 | 167 |
DLR-364-1-1/8 | 7.41 | 9.5 | 57 | 46 | 74 | 31.8 | 29.5 | 190 |
SR-364-1-1/4 | 9.50 | 12 | 72 | 51.6 | 82.6 | 35 | 35.7 | 209.6 |
SR-364-1-3/8 | 13.53 | 13.5 | 81 | 57.2 | 92.2 | 38.1 | 39 | 232.7 |
SR-364-1-1/2 | 17.20 | 17 | 102 | 60.5 | 98.6 | 41 | 39 | 254 |
SR-364-1-3/4 | 27.78 | 25 | 150 | 73.2 | 127 | 57 | 48 | 313.5 |
SR-364-2 | 45.00 | 35 | 210 | 82.6 | 146 | 61 | 56 | 347.5 |
SR-364-4-1/2 | 85.75 | 55 | 330 | 105 | 184.2 | 79.5 | 67.5 | 453.2 |
