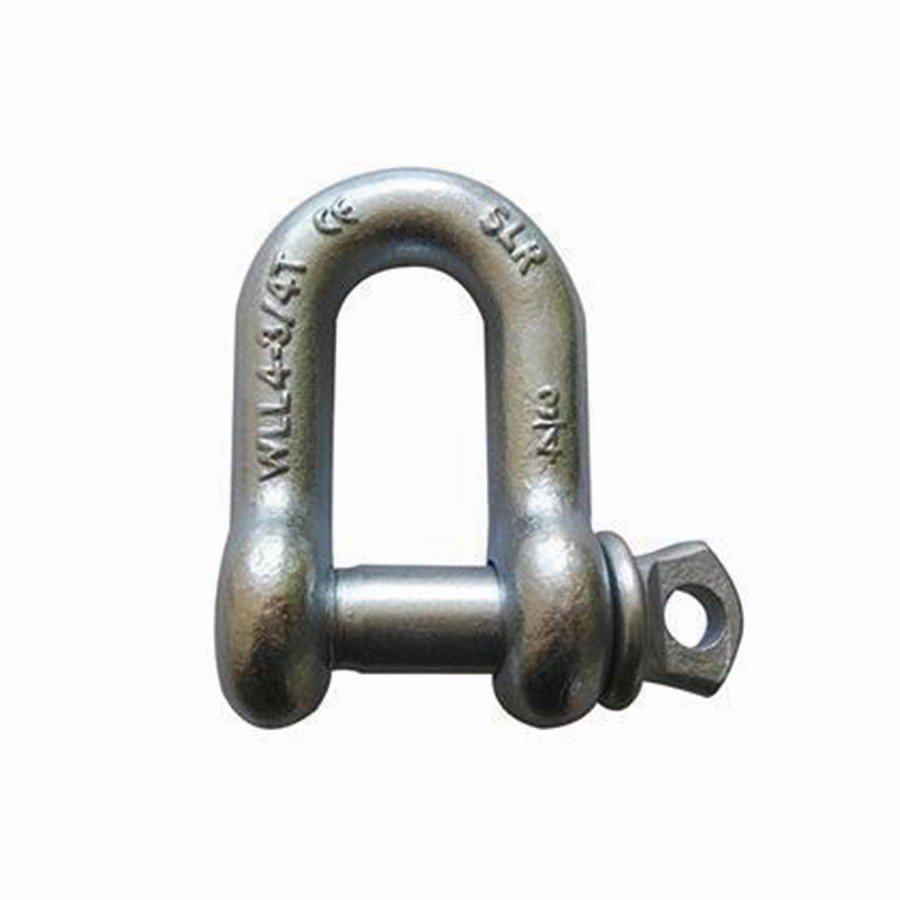

SR365 HIGH STRENGTH BOLT TYPE DEE SHACKLE
Features
● It can be used for lifting.
● It is forged and then heat treated.
● The surface treatment of shackle: hot galvanizing/cold galvanizing.
● Nut surface treatment: cold galvanizing.
● Bolt surface treatment: hot galvanizing/cold galvanizing/plastic spraying.
● Ultimate load is 6 times the Working Load Limit.
● It can not be used beyond working load limit.
● Normal mark: 3/8 WLL1T CE SLR.
Product Description

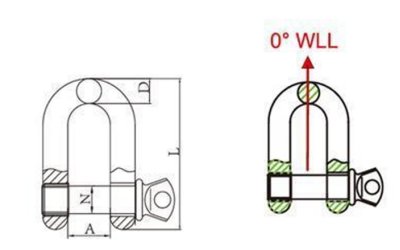

Parameters (Unit: mm)
Item Code | Weight/lbs | Working Load Limit/t | Breaking Load/t | A±1 | D±0.5 | L±2 | N±0.2 |
SR-365-1/4 | 0.11 | 0.5 | 3 | 12 | 6.35 | 40.4 | 7.5 |
SR-365-5/16 | 0.17 | 0.75 | 4.5 | 13.5 | 8 | 48.5 | 9.5 |
SR-365-3/8 | 0.28 | 1 | 6 | 16.8 | 9.7 | 58.5 | 11.5 |
SR-365-7/16 | 0.43 | 1.5 | 9 | 19 | 11.2 | 67.6 | 13.4 |
SR-365-1/2 | 0.59 | 2 | 12 | 20.6 | 12.7 | 77 | 15.5 |
SR-365-5/8 | 1.25 | 3.25 | 19.5 | 27 | 15.5 | 95.5 | 19.5 |
SR-365-3/4 | 2.63 | 4.75 | 28.5 | 32 | 20.6 | 116.6 | 21.5 |
SR-365-7/8 | 3.16 | 6.5 | 39 | 36.6 | 24.6 | 135.5 | 24 |
SR-365-1 | 4.75 | 2 | 12 | 20.6 | 25.4 | 150.8 | 26.5 |
DLR-365-1-1/8 | 6.75 | 9.5 | 57 | 46 | 31.75 | 172.2 | 29.5 |
SR-365-1-1/4 | 9.06 | 12 | 72 | 51.6 | 35 | 190.5 | 35.7 |
SR-365-1-3/8 | 11.63 | 13.5 | 81 | 57.2 | 38.1 | 210.3 | 39 |
SR-365-1-1/2 | 15.92 | 17 | 102 | 60.5 | 41.1 | 230.1 | 39 |
SR-365-1-3/4 | 26.75 | 25 | 150 | 73.2 | 53.8 | 278.6 | 48 |
SR-365-2 | 42.31 | 35 | 210 | 82.5 | 50.8 | 321 | 56 |
SR-365-2-1/2 | 71.75 | 55 | 330 | 105 | 66.5 | 377 | 67.5 |
