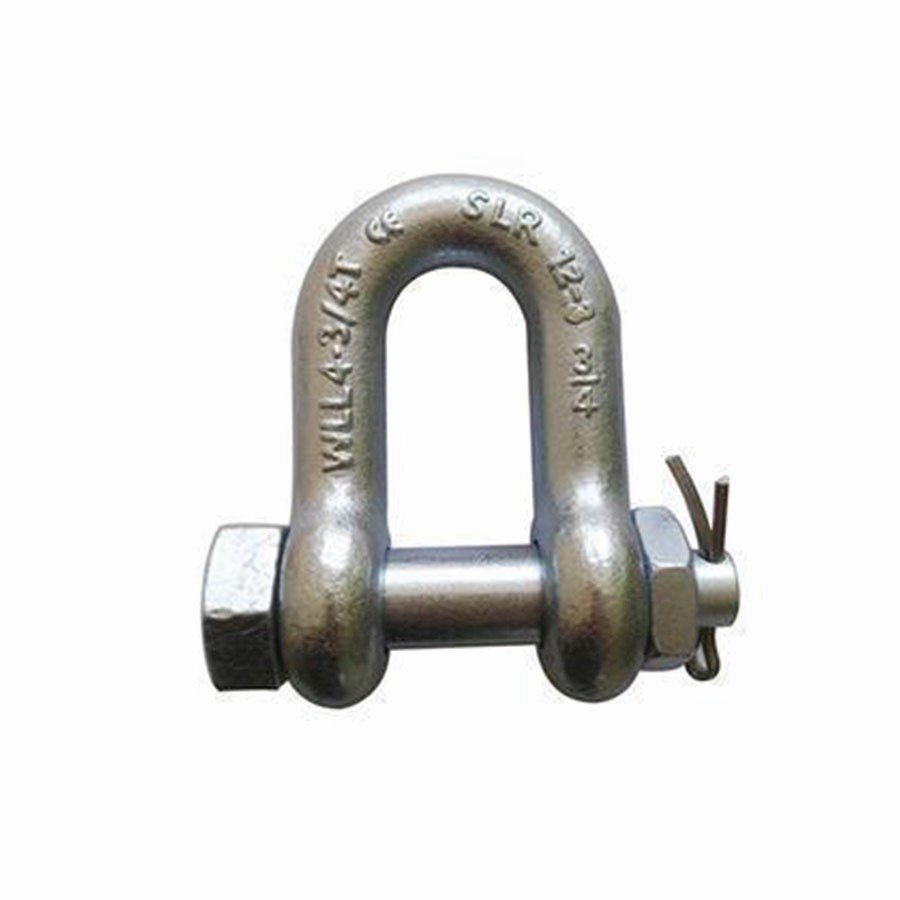

SR363 HIGH STRENGTH BOLT TYPE DEE SHACKLE
Features
● It can be used for lifting.
● It is forged and then heat treated.
● The surface treatment of shackle: hot galvanizing/cold galvanizing.
● Nut surface treatment: cold galvanizing.
● Bolt surface treatment: hot galvanizing/cold galvanizing/plastic spraying.
● Ultimate load is 6 times the Working Load Limit.
● It can not be used beyond working load limit.
● Normal mark: 3/8 WLL1T CE SLR.
Product Description

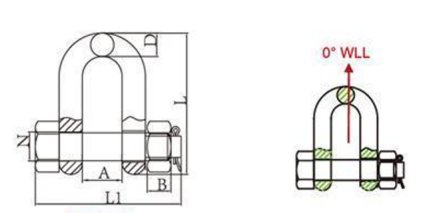

Parameters (Unit: mm)
Item Code | Weight/lbs | Working Load Limit/t | Breaking Load/t | A±1.2 | D±0.5 | N±0.2 | L±2 | L1±0.5 | B |
SR-363-3/16 | 0.02 | 0.33 | 1.98 | 9.7 | 4.8 | 7 | 34.15 | 32 | 3.2 |
SR-363-1/4 | 0.13 | 0.5 | 3 | 11.9 | 6.4 | 8 | 40.4 | 40 | 4 |
SR-363-5/16 | 0.23 | 0.75 | 4.5 | 13.5 | 8 | 9.7 | 48.5 | 48.4 | 5 |
SR-363-3/8 | 0.33 | 1 | 6 | 16.8 | 9.7 | 11.2 | 58.7 | 57.8 | 6 |
SR-363-7/16 | 0.49 | 1.5 | 9 | 19 | 11.2 | 12.7 | 67.8 | 65.9 | 7 |
SR-363-1/2 | 0.75 | 2 | 12 | 20.6 | 12.7 | 16.3 | 77 | 73.7 | 8 |
SR-363-5/8 | 1.47 | 3.25 | 19.5 | 27 | 16 | 20 | 95.5 | 94 | 10 |
SR-363-3/4 | 2.52 | 4.75 | 28.5 | 32 | 20.6 | 22.6 | 115 | 108.7 | 10 |
SR-363-7/8 | 3.85 | 6.5 | 39 | 36.6 | 24.6 | 25.9 | 135.4 | 127.8 | 12 |
SR-363-1 | 5.55 | 8.5 | 51 | 43 | 25.4 | 29.2 | 151 | 145.8 | 13.5 |
DLR-363-1-1/8 | 7.50 | 9.5 | 57 | 46 | 31.75 | 31.8 | 172.2 | 163.7 | 15 |
SR-363-1-1/4 | 10.81 | 12 | 72 | 51.6 | 35 | 35.6 | 190.5 | 178.4 | 18 |
SR-363-1-3/8 | 13.75 | 13.5 | 81 | 57.2 | 38.1 | 38.9 | 210.3 | 188.3 | 19 |
SR-363-1-1/2 | 18.5 | 17 | 102 | 60.5 | 41.2 | 42.2 | 230 | 211 | 20 |
SR-363-1-3/4 | 31.4 | 25 | 150 | 73.2 | 53.8 | 51.8 | 278.7 | 281.6 | 39 |
SR-363-2 | 46.75 | 35 | 210 | 82.5 | 59.9 | 58.4 | 323.6 | 313.5 | 46 |
SR-363-4-1/2 | 85.00 | 55 | 330 | 105 | 66.8 | 71.1 | 377.2 | 375 | 58 |
SR-363-3 | 124.24 | 85 | 510 | 127 | 90 | 82.6 | 42835 | 444.4 | 64 |
