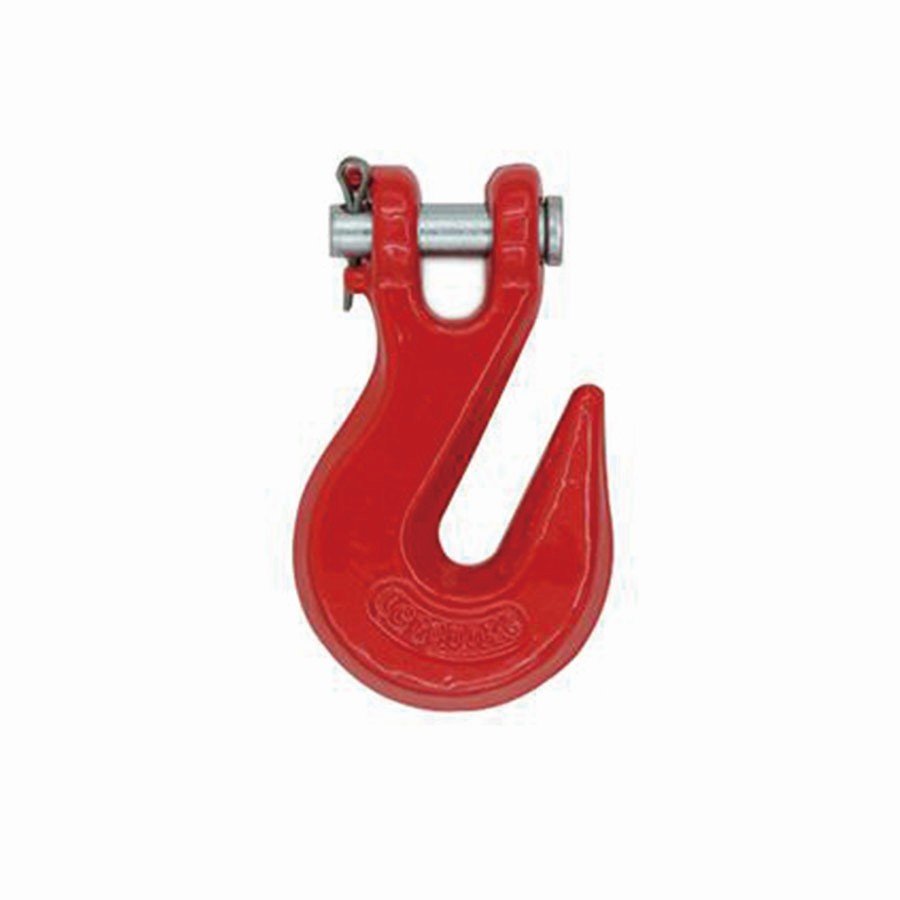

Alloy Steel Clevis Grab Hook
Features
● G70 grab hook material: forged alloy steel;
● G43 grab hook material: carbon steel;
● It is strictly heat treated.
● It can be matched with G70 or G43 chains.
● It can be only used for lashing and pulling but not lifting.
● Ultimate load is 4 times the Working Load Limit.
Product Description

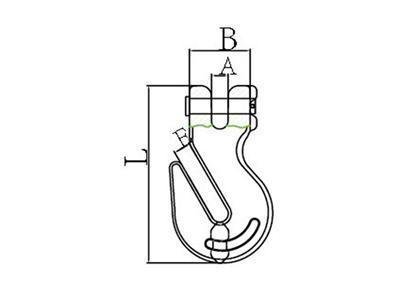

Parameters (Unit: mm)
Item code | Weight (kg) | Load Capacity/kg | Breaking load/kg | A±0.5 | B±1 | E±0.5 | L±1.2 |
SR-099-6mm | 0.23 | 2300 | 4600 | 9.5 | 26 | 9.5 | 83 |
SR-099-8mm | 0.38 | 3800 | 7600 | 12 | 35 | 12 | 99 |
SR-099-10mm | 0.62 | 6000 | 12000 | 13.5 | 36 | 13.5 | 115 |
SR-099-13mm | 1.24 | 9000 | 18000 | 18 | 48.5 | 18 | 152 |
Ultimate load is 2 times the Working Load Limit.
