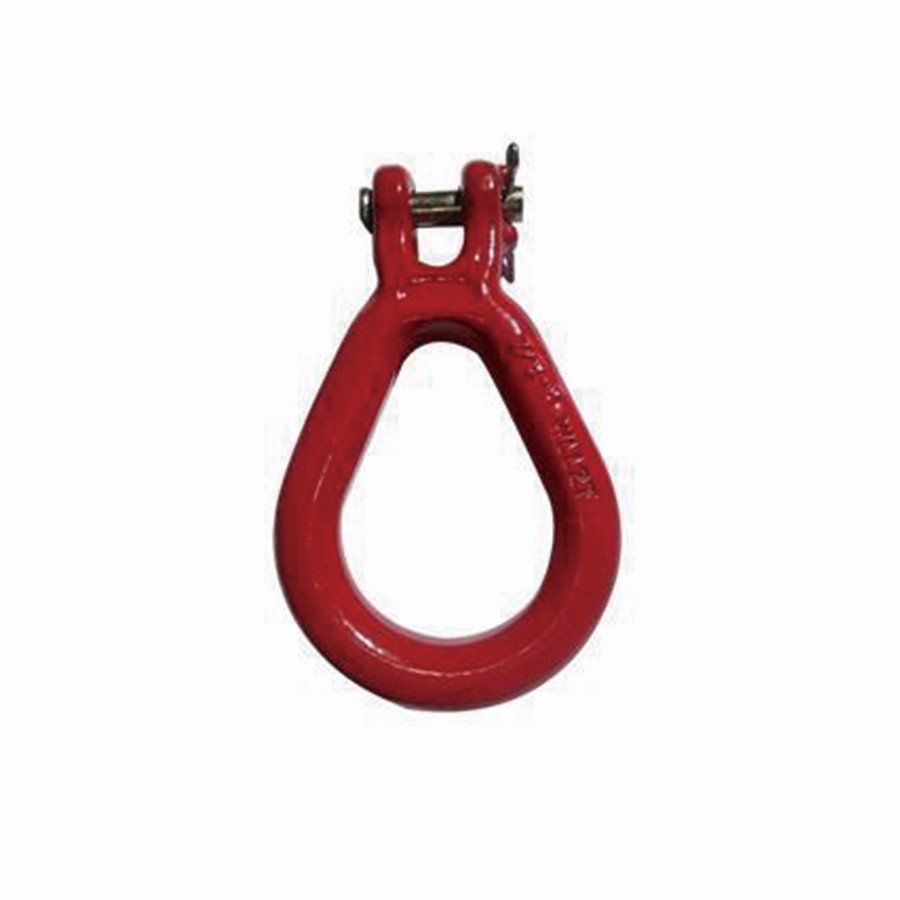

Alloy Steel Clevis Lug Link

Your current location:

Home
Products
Rigging Hardware
G80 & G100 Rigging
Regular Rigging Hardware

Features
● It is a G70 product. So it can be only used for lashing and pulling, but not lifting!
● It is forged by alloy steel. The strict heat treatment ensures its intensity and toughness.
● It can be matched with G70 chains.
● Ultimate load is 2 times the Working Load Limit.

Product Description

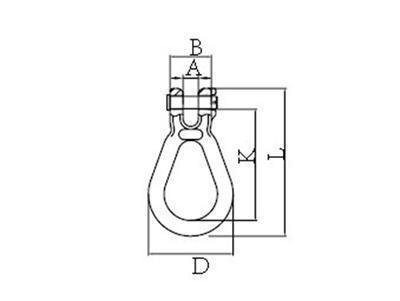

Parameters (Unit: mm)

Item code	Weight (KG)	Load capacity/KG	Breaking load /KG	B±1.5	A±0.5	D±2	K±2	L±2
SR057-8mm	0.555	3800	7600	35	12	86	108	142
SR057-10mm	0.63	6000	12000	36	13.5	95	119	156
SR057-13mm	0.93	9000	18000	48.5	18	100	132	175
