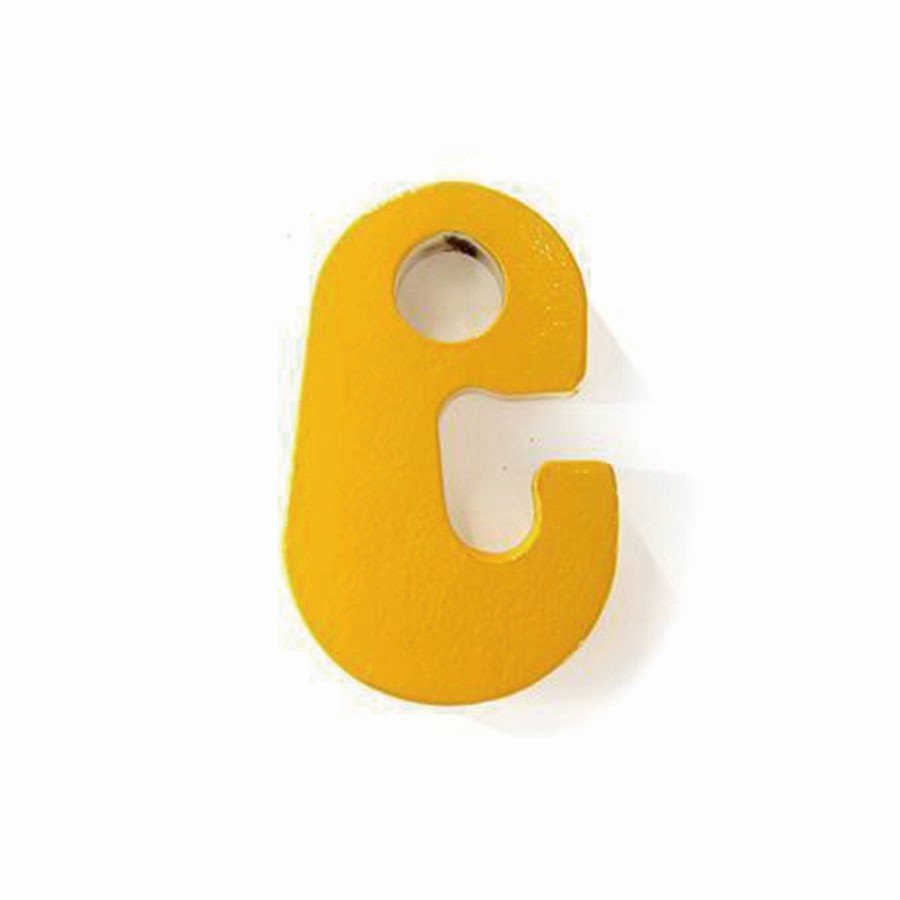

Alloy Steel Chain Lifting G Hook

3
Alloy Steel Chain Lifting G Hook

Alloy Steel Chain Lifting G Hook

Features

● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

Product Description

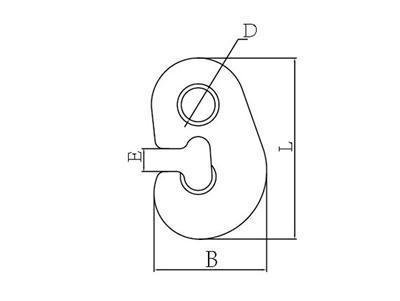

Parameters (Unit: mm)

Item Code

Weight (kg)

Working Load Limit/t

Breaking Load/t

D±1

B±2

E±0.5

L±1.5

8-SR066-1.0T

0.33

1

5

17

57

11.5

91

8-SR066-1.5T

0.6

1.5

7.5

20

66

13

107

8-SR066-3.2T

0.9

3.2

16

26

77

15

123

8-SR066-5.6T

3.1

5.6

28

38

115

23

180
