● All sizes: main ring is forged and sub-ring is welded.
● According to standard EN1677-4.

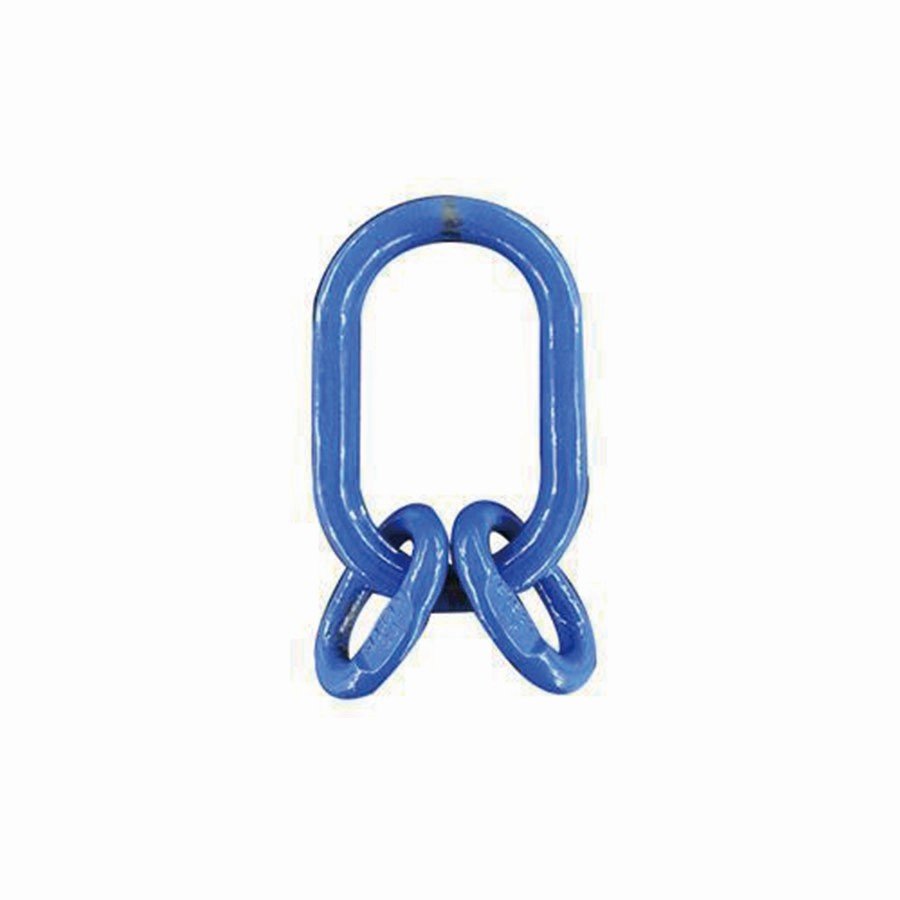

SR1012-G100 MASTER LINK ASSEMBLY
● All sizes: main ring is forged and sub-ring is welded.
● According to standard EN1677-4.
Product Description
Parameters (Unit: mm)
Item Code | G100 Chain Diameter mm | Weight (kg) | Working load limit (t) | Dimension (mm) | |||||
For 3/4 Leg Sling | A | B | D | a | b | d | |||
8-SR1012-6 | 6MM | 1.3 | 3 | 135 | 75 | 19 | 84 | 25 | 13 |
8-SR1012-8 | 8MM | 2.33 | 5.3 | 160 | 90 | 23 | 70 | 35 | 16.5 |
8-SR1012-10 | 10MM | 3.7 | 8 | 180 | 100 | 27 | 85 | 40 | 19 |
8-SR1012-13 | 13MM | 6.5 | 14 | 200 | 110 | 33 | 115 | 50 | 23 |
8-SR1012-16 | 16MM | 10.1 | 21.2 | 260 | 140 | 36 | 140 | 65 | 27 |
8-SR1012-20 | 19/20MM | 22.8 | 33.6 | 350 | 190 | 50 | 150 | 70 | 33 |
8-SR1012-22 | 22MM | 26 | 33.9 | 350 | 190 | 50 | 180 | 100 | 36 |
All sizes: there will be pressing flat only on request.
The pressing flat is for use with SLR1027-G100 OMEGA LINK.
