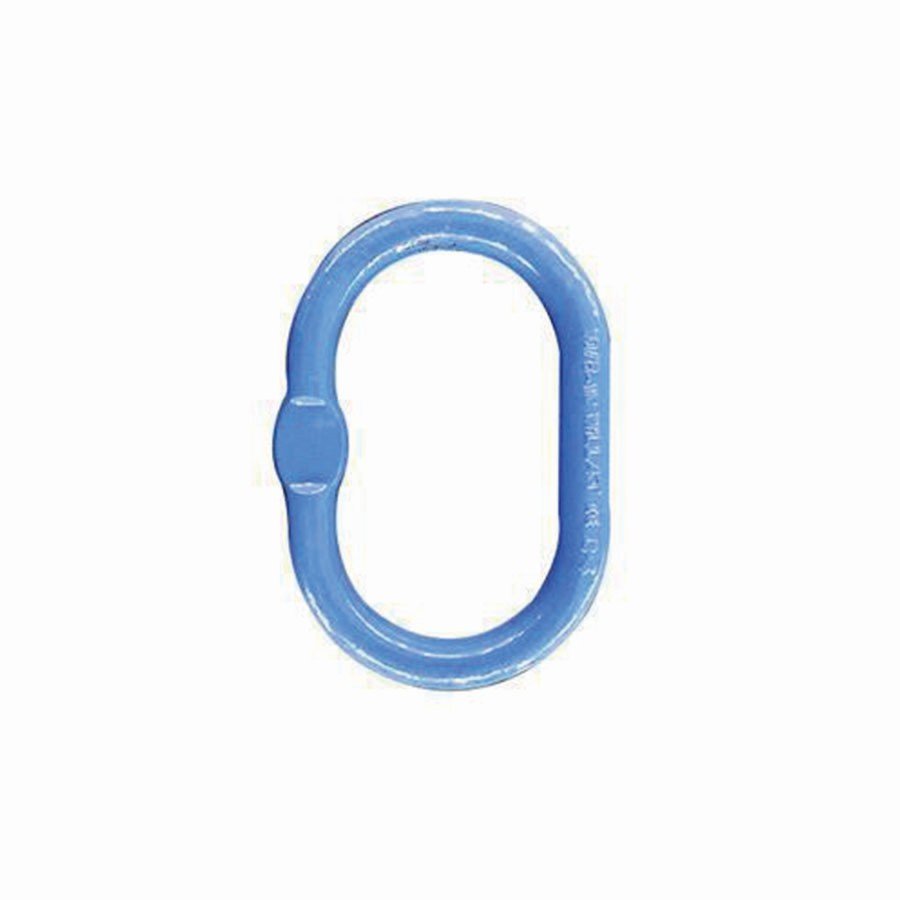

SR1011 MASTER LINK
● It can be matched with G100 chains.
● The performance is increased by 25% compared with G80 products.
● Each workpiece should pass testing at 2.5 times of working load limit.
● We should carry out sampling and 20000 times of fatigue testing.
● We should carry out 100% magnetic powder flaw detection.
● Surface treatment: plastics spraying.
● Color code: Blue RAL5015.
● All sizes are forged.
Product Description
Parameters (Unit: mm)
Item Code | G100 Chain Diametermm | Weight (kg) | Working load limit(t) | Dimension (mm) | |||
1 Leg Sling | 2 Leg Sling | A | B | D | |||
8-SR1011-13 | 6+7 | 6 | 0.34 | 2.3 | 110 | 60 | 13 |
8-SR1011-16 | 8 | 7 | 0.53 | 3.5 | 110 | 60 | 16 |
8-SR1011-18 | 10 | 8 | 0.86 | 5 | 135 | 75 | 18 |
8-SR1011-23 | 13 | 10 | 1.6 | 7.6 | 160 | 90 | 23 |
8-SR1011-27 | 16 | 13 | 2.46 | 10 | 180 | 100 | 27 |
8-SR1011-33 | 19 | 16 | 4.14 | 14 | 200 | 110 | 33 |
8-SR1011-36 | 22 | 19 | 6.22 | 25.1 | 260 | 140 | 36 |
8-SR1011-45 | 26 | 22 | 12.85 | 30.8 | 340 | 180 | 45 |
8-SR1011-50 | 32 | 26 | 16.22 | 40 | 350 | 190 | 50 |
