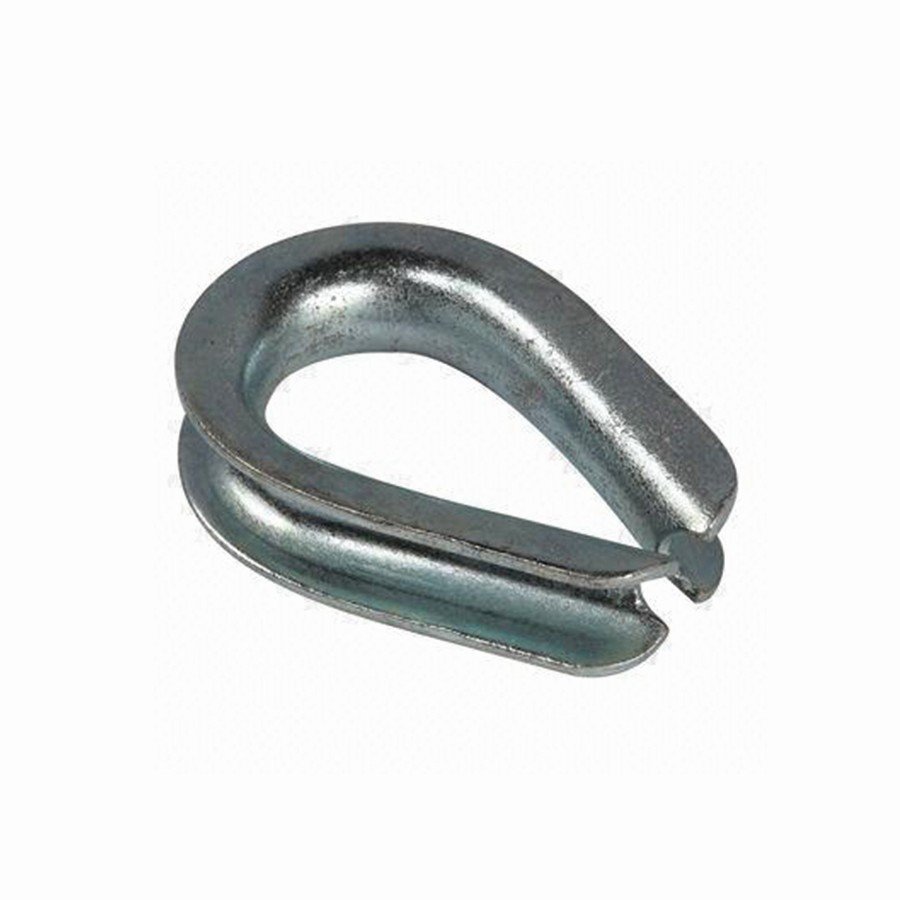

Heavy Duty US Type Wire Rope Thimble G414
▪ G-414 meets the performance requirements of Federal Specification FF-T-276b
▪ Type Ⅲ,except for those provisions required of the contractor.
▪ Available in Hot Dip galvanized or Stainless Steel(Type 304).
▪ Stainless steel recommended for more corrosive environments where greater protection is required.
▪ Greater protection against wear and deformation of the wire rope eye.
▪ Longer service life.
Product Description
PART NO. | ROPE | DIMENSIONS | |||||||
DIA. | (inch) | ||||||||
(inch) | A | B | C | D | E | F | G | H | |
RHDT0104 | *1/4 | 2.19 | 1.62 | 1.5 | 0.88 | 0.41 | 0.28 | 0.06 | 0.25 |
RHDT0516 | *5/16 | 2.5 | 1.88 | 1.81 | 1.06 | 0.5 | 0.34 | 0.08 | 0.3 |
RHDT0308 | *3/8 | 2.88 | 2.12 | 2.12 | 1.12 | 0.63 | 0.41 | 0.11 | 0.39 |
RHDT0716 | 7/16 | 3.25 | 2.38 | 2.38 | 1.25 | 0.72 | 0.47 | 0.12 | 0.45 |
RHDT0916 | *1/2-9/16 | 3.62 | 2.75 | 2.75 | 1.5 | 0.89 | 0.59 | 0.15 | 0.48 |
RHDT0508 | 5/8 | 4.25 | 3.25 | 3.12 | 1.75 | 1 | 0.66 | 0.16 | 0.53 |
RHDT0304 | 3/4 | 5 | 3.75 | 3.81 | 2 | 1.22 | 0.78 | 0.22 | 0.69 |
RHDT0708 | 7/8 | 5.5 | 4.25 | 4.25 | 2.25 | 1.38 | 0.94 | 0.22 | 0.78 |
RHDT1000 | 1 | 6.12 | 4.5 | 4.75 | 2.5 | 1.56 | 1.06 | 0.25 | 0.88 |
RHDT1104 | 1-1/8-1-1/4 | 7 | 5.12 | 5.88 | 2.88 | 1.88 | 1.31 | 0.25 | 1.25 |
RHDT1308 | 1-1/4-1-3/8 | 9.08 | 6.5 | 6.81 | 3.5 | 2.25 | 1.44 | 0.37 | 1.29 |
RHDT1102 | 1-3/8-1-1/2 | 9 | 6.25 | 7.12 | 3.5 | 2.62 | 1.56 | 0.5 | 1.31 |
RHDT1508 | 1-5/8 | 11.25 | 8 | 8.12 | 4 | 3 | 1.72 | 0.5 | 1.38 |
RHDT1304 | 1-3/4 | 12.19 | 9 | 8.5 | 4.5 | 3.06 | 1.84 | 0.5 | 1.5 |
RHDT2000 | 1-7/8-2 | 15.12 | 12 | 10.38 | 6 | 3.38 | 2.09 | 0.5 | 1.69 |
RHDT2104 | 2-1/4 | 17.5 | 14 | 11.88 | 7 | 3.88 | 2.38 | 0.62 | 1.82 |
