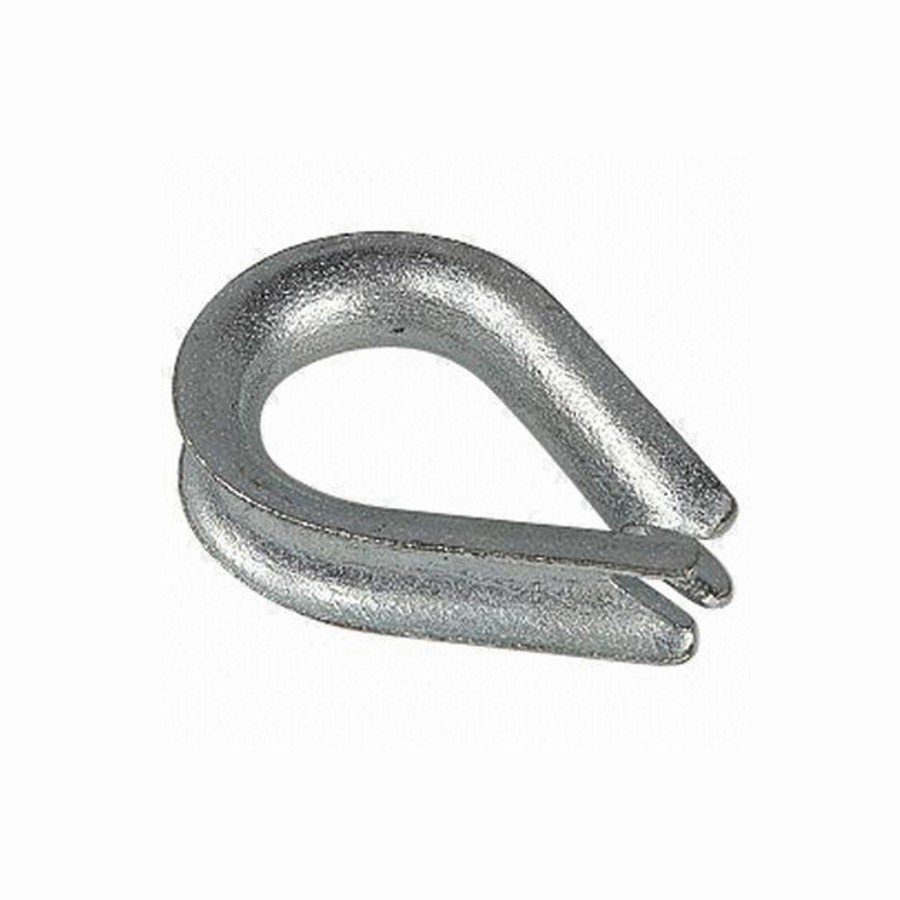

DIN6899B Wire Rope Thimble
Product Description
PART NO. | ROPE | DIMENSIONS | |||
DIA. | (mm) | ||||
(mm) | A | H | C | S | |
R6BT0025 | 2.5 | 3 | 19 | 12 | 1.6 |
R6BT0035 | 3.5 | 4 | 21 | 13 | 1.6 |
R6BT0040 | 4 | 5 | 23 | 14 | 1.9 |
R6BT0050 | 5 | 6 | 25 | 16 | 2.4 |
R6BT0060 | 6 | 7 | 28 | 18 | 2.4 |
R6BT0070 | 7 | 8 | 32 | 20 | 2.8 |
R6BT0090 | 9 | 10 | 38 | 24 | 3.1 |
R6BT0100 | 10 | 12 | 45 | 28 | 3.3 |
R6BT0130 | 13 | 13 | 48 | 30 | 3.3 |
R6BT0140 | 14 | 14 | 51 | 32 | 3.7 |
R6BT0150 | 15 | 16 | 58 | 36 | 3.8 |
R6BT0170 | 17 | 17 | 61 | 38 | 4.7 |
R6BT0160 | 16 | 18 | 64 | 40 | 4.7 |
R6BT0180 | 18 | 20 | 72 | 45 | 5.7 |
R6BT0200 | 20 | 22 | 80 | 50 | 5.7 |
R6BT0220 | 22 | 24 | 90 | 56 | 6.5 |
R6BT0240 | 24 | 26 | 99 | 62 | 6.3 |
R6BT0260 | 26 | 28 | 112 | 70 | 8 |
R6BT0280 | 28 | 30 | 120 | 75 | 8 |
R6BT0300 | 30 | 32 | 128 | 80 | 8 |
R6BT0320 | 32 | 34 | 152 | 95 | 8.5 |
