SAFETY FACTOR: 4:1
SHACKLE (SB TYPE) OR HOOK (HB TYPE)
DROP FORGED WHEEL

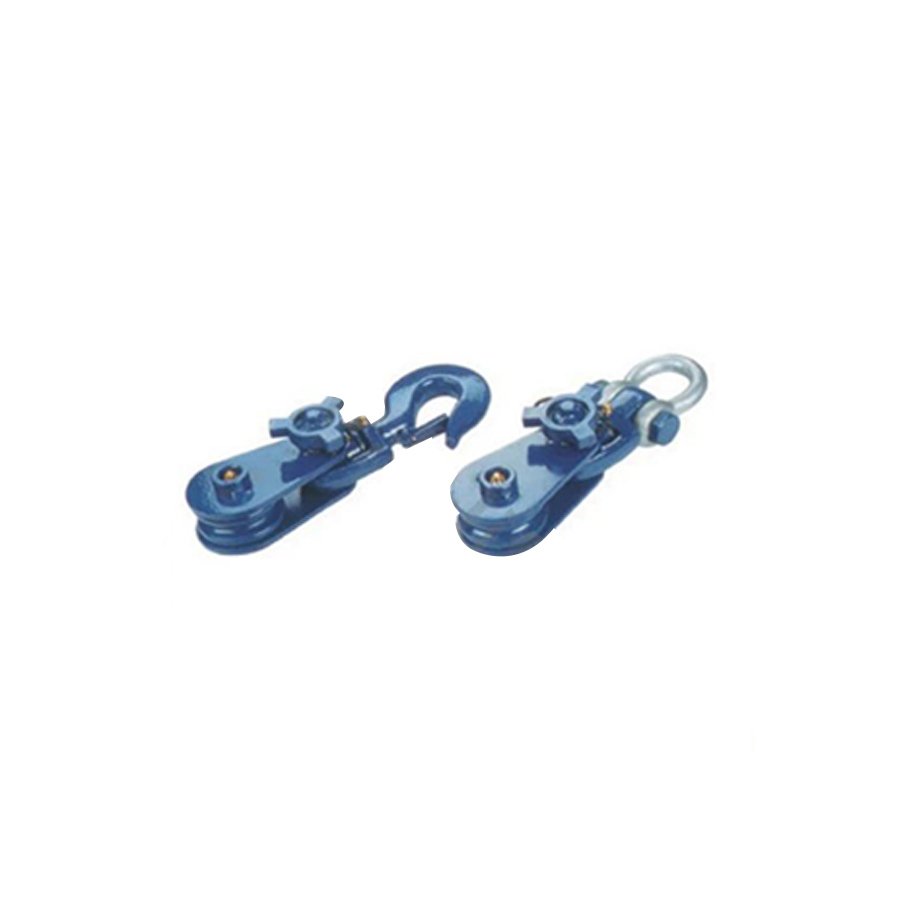

Heavy Duty Snatch Block, SB & HB Type
SAFETY FACTOR: 4:1
SHACKLE (SB TYPE) OR HOOK (HB TYPE)
DROP FORGED WHEEL
Product Description

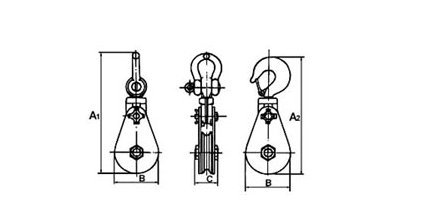

S.W.L | SHEAVE DIA | SHACKLE | HOOK | B | C | WIRE ROPE SIZE | WEIGHT |
A1 | A2 | ||||||
TON | mm | kg | |||||
2 | 75 | 286 | 292 | 82 | 70 | 7~9 | 4 |
4 | 115 | 345 | 358 | 120 | 70 | 10~12 | 6.1 |
4 | 150 | 399 | 412 | 160 | 70 | 16~18 | 13.8 |
8 | 150 | 475 | 498 | 160 | 93 | 20~22 | 14.4 |
8 | 200 | 528 | 549 | 210 | 93 | 20~22 | 16 |
15 | 200 | 663 | 672 | 230 | 102 | 22~24 | 24 |
10 | 250 | 679 | 695 | 260 | 115 | 24~26 | 37.5 |
12 | 250 | 679 | 701 | 260 | 115 | 24~26 | 42 |
12 | 300 | 767 | 797 | 310 | 133 | 24~26 | 56 |
15 | 300 | 884 | 797 | 365 | 133 | 26~28 | 65 |
22 | 355 | 952 | 960 | 365 | 140 | 28~32 | 90 |
22 | 400 | 1019 | 1027 | 415 | 140 | 28~32 | 108 |
30 | 400 | 1126 | 1085 | 415 | 155 | 32~35 | 135 |
30 | 500 | 1256 | 1177 | 514 | 162 | 32~35 | 210 |
