SAFETY FACTOR: 4:1
HOOK (HS TYPE) OR EYE (ES TYPE)
DOUBLE SHEAVE

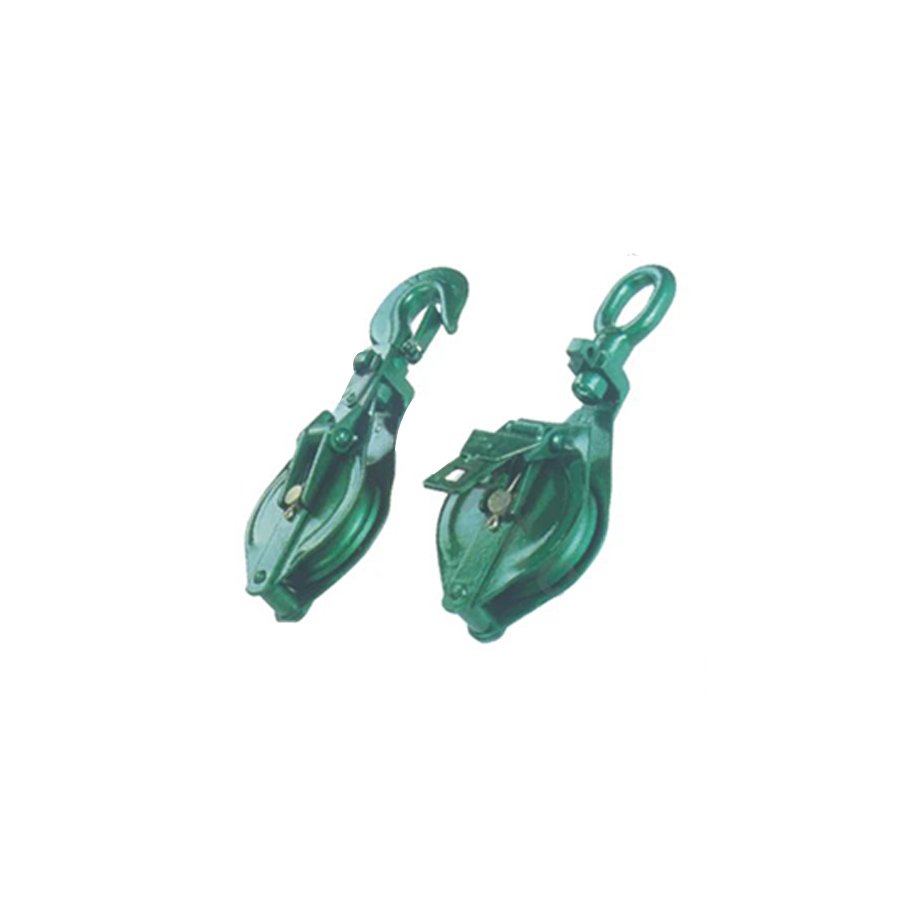

Double Sheave Snatch Block, HD and ED Type
SAFETY FACTOR: 4:1
HOOK (HS TYPE) OR EYE (ES TYPE)
DOUBLE SHEAVE
Product Description

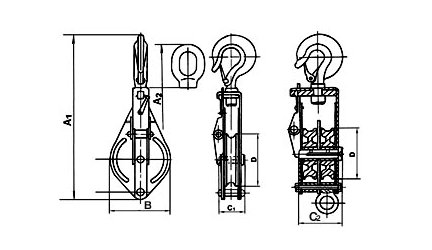

S.W.L | SHEAVE DIA | MAIN DIMENSIONS (mm) | WIRE ROPE SIZE | WEIGHT | |||
TON | D(mm) | HOOK A1 | EYE A2 | B | C2 | MM | kg |
0.5 | 75 | 268 | 227 | 87 | 77 | 8 | 2.8 |
1 | 100 | 311.5 | 284.5 | 112 | 88 | 10 | 4.3 |
1.5 | 125 | 370 | 344 | 140 | 100 | 13 | 7.8 |
2 | 150 | 442.5 | 417 | 168 | 146 | 16 | 12.2 |
3 | 180 | 498 | 478 | 204 | 157 | 19 | 18.5 |
4 | 200 | 590.5 | 556 | 226 | 188 | 22 | 31 |
5 | 250 | 706.5 | 651 | 276 | 220 | 25 | 49.8 |
6 | 300 | 795 | 775 | 330 | 238 | 26 | 72 |
10 | 350 | 934 | 898 | 395 | 260 | 28 | 102 |
