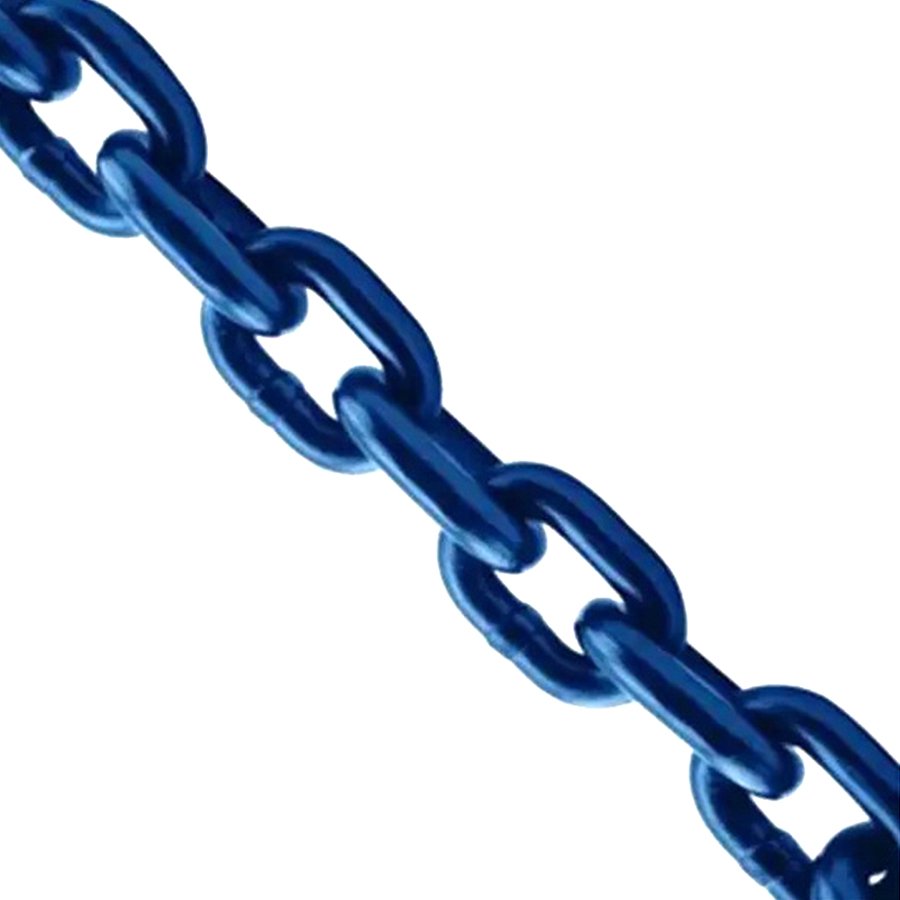

G100 Alloy Steel Lifting Chain
Material: Alloy steel
Finish: Black treated or painted or galvanized
Manufacturer’s test certificate can be supplied as required
100% proof load tested and 100% calibrated
Every meter is stamped with manufacturer’s ID Number Grade Number can be marked as required.
Product Description

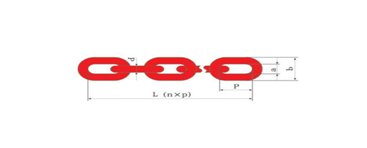

Art No. | Size | WLL/T | BL/T | d(mm) | p(mm) | a(mm) | b(mm) |
SRG1006 | 6 | 1.4 | 5.6 | 6±0.24 | 18±0.5 | 8.7 | 21.6 |
SRG1007 | 7 | 1.9 | 7.6 | 7±0.28 | 21±0.6 | 9.5 | 25.2 |
SRG1008 | 8 | 2.5 | 10 | 8±0.32 | 24±0.7 | 10.9 | 28.8 |
SRG1010 | 10 | 4 | 16 | 10±0.4 | 30±0.9 | 13.5 | 36 |
SRG1013 | 13 | 6.7 | 26.8 | 13±0.52 | 39±1.2 | 17.5 | 46.8 |
SRG1016 | 16 | 10 | 40 | 16±0.64 | 48±1.4 | 21.5 | 57.6 |
SRG1019 | 19 | 14 | 56 | 19±0.9 | 57±1.6 | 25.6 | 68.4 |
SRG1022 | 22 | 19 | 76 | 22±1.1 | 66±2 | 29.5 | 79.2 |
SRG1026 | 26 | 21.2 | 84.8 | 26±1.3 | 78±2.3 | 33.8 | 96.2 |
SRG1032 | 32 | 31.5 | 126 | 32±1.6 | 96±2.9 | 41.6 | 118 |
