Features
● It is forged by superior alloy steel which is heat treated.
● It can only be used for lashing and pulling but not lifting.
● Ultimate load is 4 times the Working Load Limit.

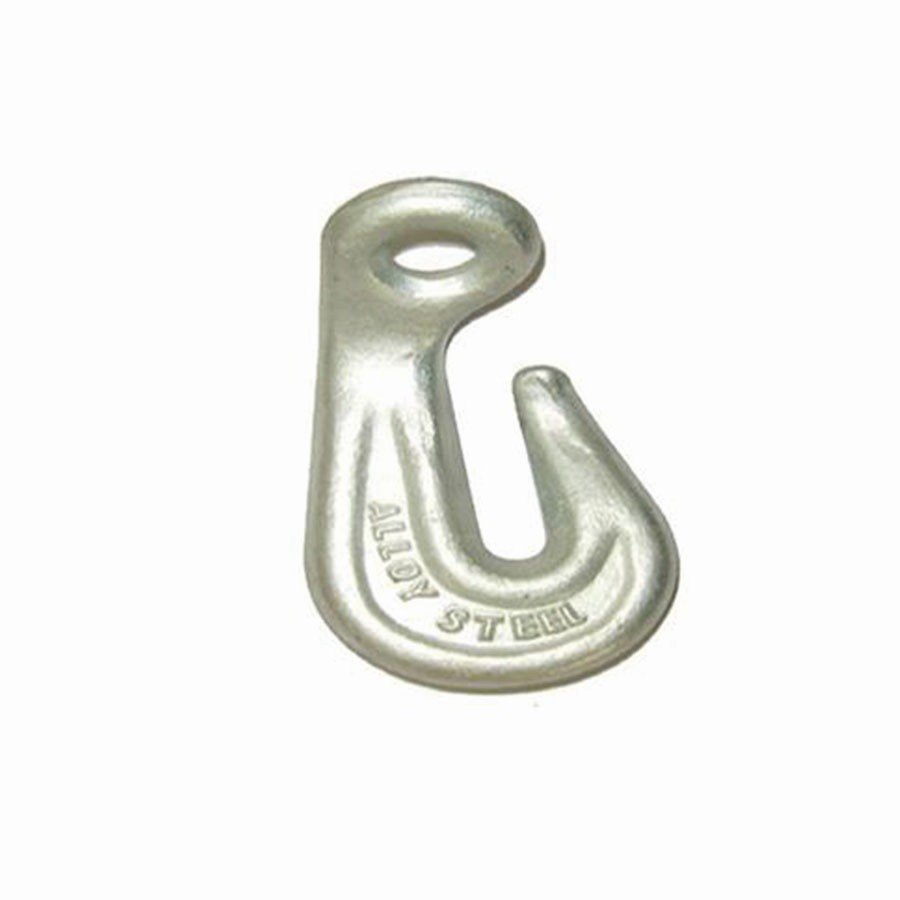

Alloy Steel Eye Bend Lifting Hook
Features
● It is forged by superior alloy steel which is heat treated.
● It can only be used for lashing and pulling but not lifting.
● Ultimate load is 4 times the Working Load Limit.
Product Description

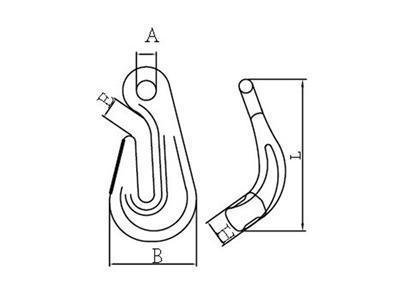

Parameters (Unit: mm)
Item code | Weight (kg) | Breaking load (t) | A±1 | B±2 | E±0.5 | L±2 | H±1 |
8-SR063-1.86T | 0.4 | 7.44 | 13 | 57 | 15 | 100 | 18.5 |
8-SR063-2T | 0.5 | 8 | 13 | 58 | 10 | 105 | 20 |
8-SR063-5T | 1.7 | 20 | 20 | 92.5 | 16 | 170 | 30 |
