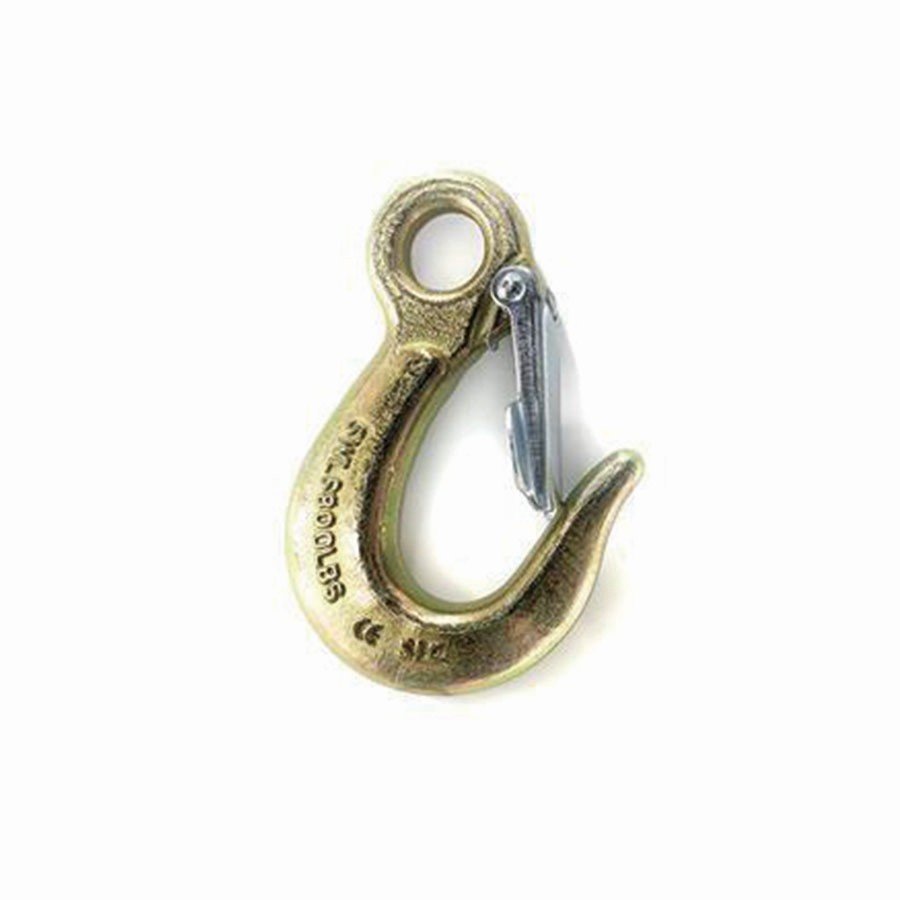

Alloy Steel Eye Latch Lifting Hook

3
Alloy Steel Eye Latch Lifting Hook

Alloy Steel Eye Latch Lifting Hook

Features
● It has large eye and small cross section so that the connection and the passing through of the eye can be quite convenient.
● It is forged by superior alloy steel with high intensity and high toughness.
● It can only be used for normal lifting but not over-head lifting.
● Ultimate load is 2 times the Working Load Limit.


Product Description

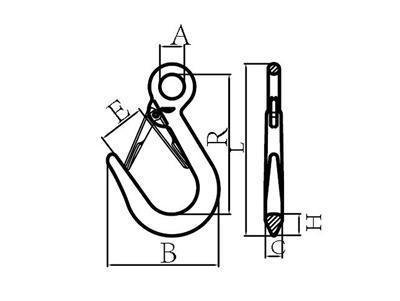

Parameters (Unit: mm)

Item Code

Weight (kg)

Working Load Limit/t

Breaking Load/t

A±0.5

B±1

C±0.5

L±1

R±1

E±1

H

SR-115-2.2T

0.499

3.2

4.4

23

97

16

162

133

37

20.6

SR-115-3.1T

0.739

3.1

6.2

22

108

20.3

168

133.5

40

24
