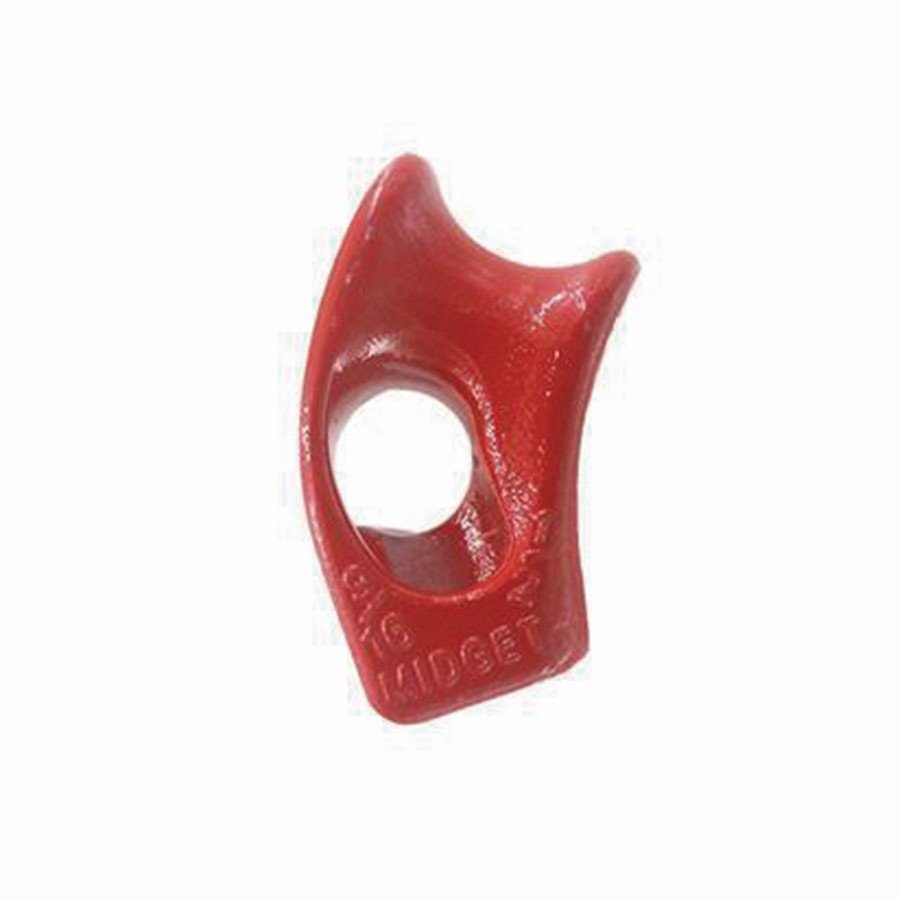

Cast Alloy Steel Wire Rope Choker

3
Cast Alloy Steel Wire Rope Choker

Cast Alloy Steel Wire Rope Choker

Features
● It can be matched with sling and G80 chains which can meet the standard EN818-2.
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020 yellow RAL1003.

Product Description

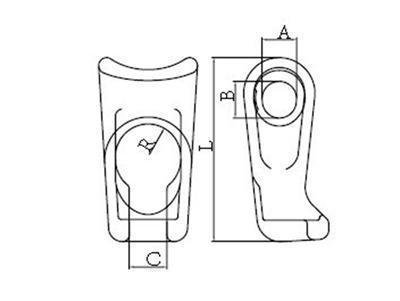

Parameters (Unit: mm)

Item Code

Weight (kg)

Working Load Limit/t

Breaking Load/t

A±0.3

B±0.3

C±0.3

R±0.3

L±0.6

SR-227-LS3

0.3

2

8

17.5

20

19

16.5

93

SR-227-LS4

0.62

2

8

18

20.5

19.2

15.8

112

SR-227-HIGH STRENGTH

0.436

2

10

18

18

16

15

101
