Features
● It is forged by general mild steel.
● Surface treatment: white zinc electroplating.
● It can only be used for lashing and pulling but not lifting.

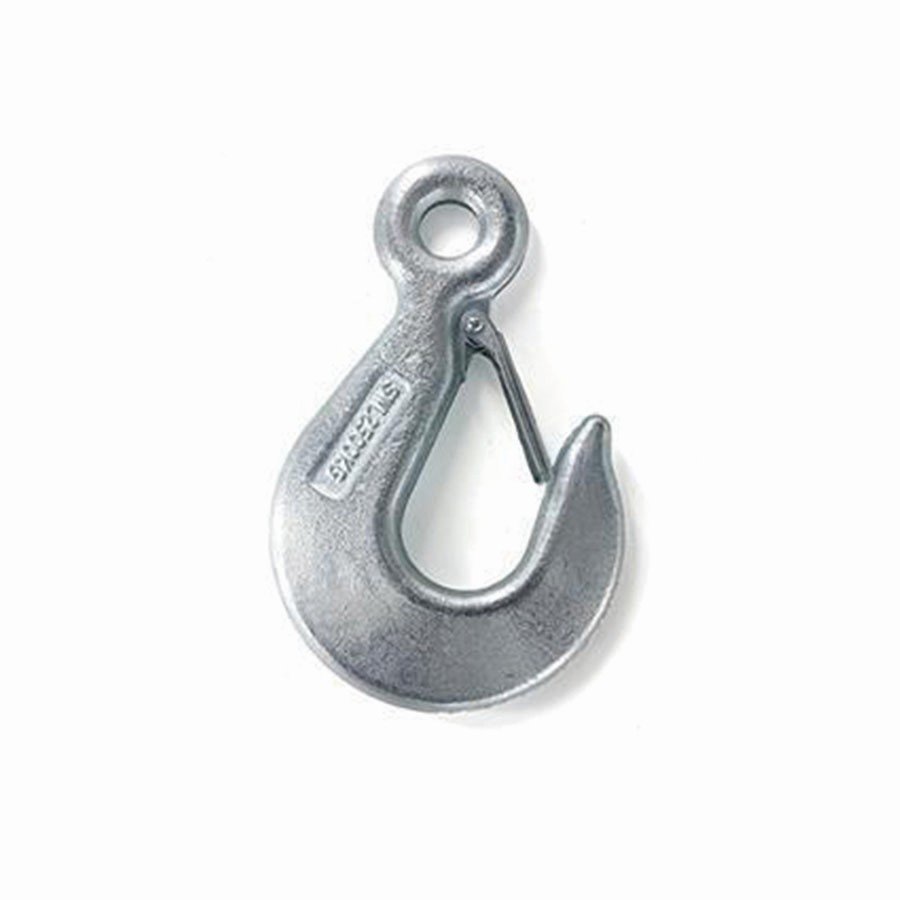

DIN 689 Carbon Steel Hook with Latch
Features
● It is forged by general mild steel.
● Surface treatment: white zinc electroplating.
● It can only be used for lashing and pulling but not lifting.
Product Description

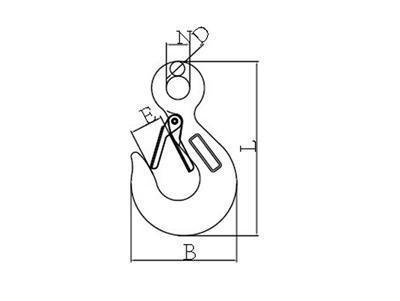

Parameters (Unit: mm)
Item N0. | Weight/kg | Safe working load/KG | N±0.5 | B±1 | E±1.2 | D±0.5 | L±1 |
SR-020-250KG | 0.15 | 250 | 12 | 52.5 | 18 | 7.5 | 88 |
SR-020-500KG | 0.32 | 500 | 16 | 70 | 23 | 10 | 117 |
SR-020-1000KG | 0.84 | 1000 | 20 | 98 | 34 | 13 | 160 |
SR-020-1600KG | 1.3 | 1600 | 22 | 111 | 37 | 16 | 186 |
SR-020-2500KG | 2.55 | 2500 | 25 | 145 | 48 | 20 | 233 |
