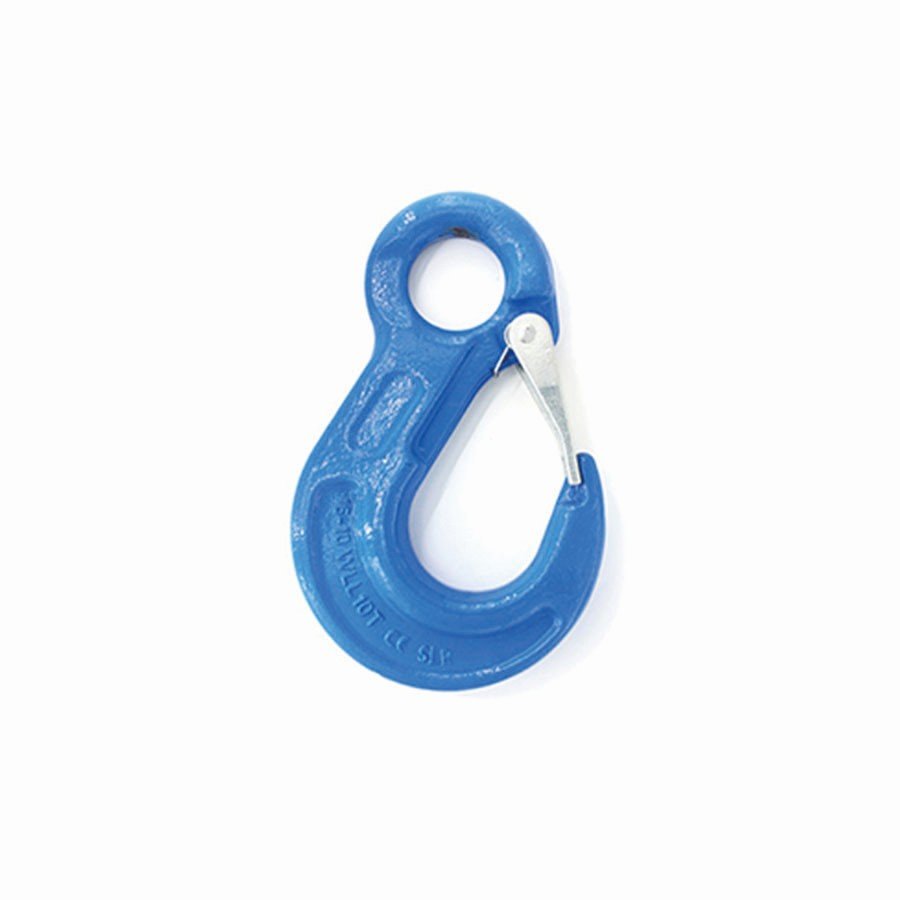

Alloy Steel Eye Sling Hook with Latch

Your current location:

● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● Surface treatment: Powder plastified;
● Color code: Blue RAL5015

Part of the eye sling hook is flat, so that the SLR1027-G100 omega ring can go through it for cooperation.

Product Description

Parameters (Unit: mm)

Item code	Weight (kg)	Working load limit (t)	Breaking load (t)	D±1	E±2	H±1	M±1	L±2.5
10-SR1003-06	0.32	1.4	5.6	10	18.5	21	20.5	111
10-SR1003-08	0.6	2.5	10	11	25	27.5	25	137.5
10-SR1003-10	1.2	4	16	16	28	33	34	171.5
10-SR1003-13	2.2	6.7	26.8	19	38	43.5	43	219
10-SR1003-16	3.5	10	40	24.5	44	50	50	260
10-SR1003-20	7.15	16	64	27	52	56	55	298
10-SR1003-22	11.5	19	76	29	66	62	60	330
10-SR1003-26	12.2	26.5	106	35	73	75	70	376
10-SR1003-32	17.5	39.3	157.2	39	87	89	81.5	458

Ultimate load is 4 times the Working Load Limit.
