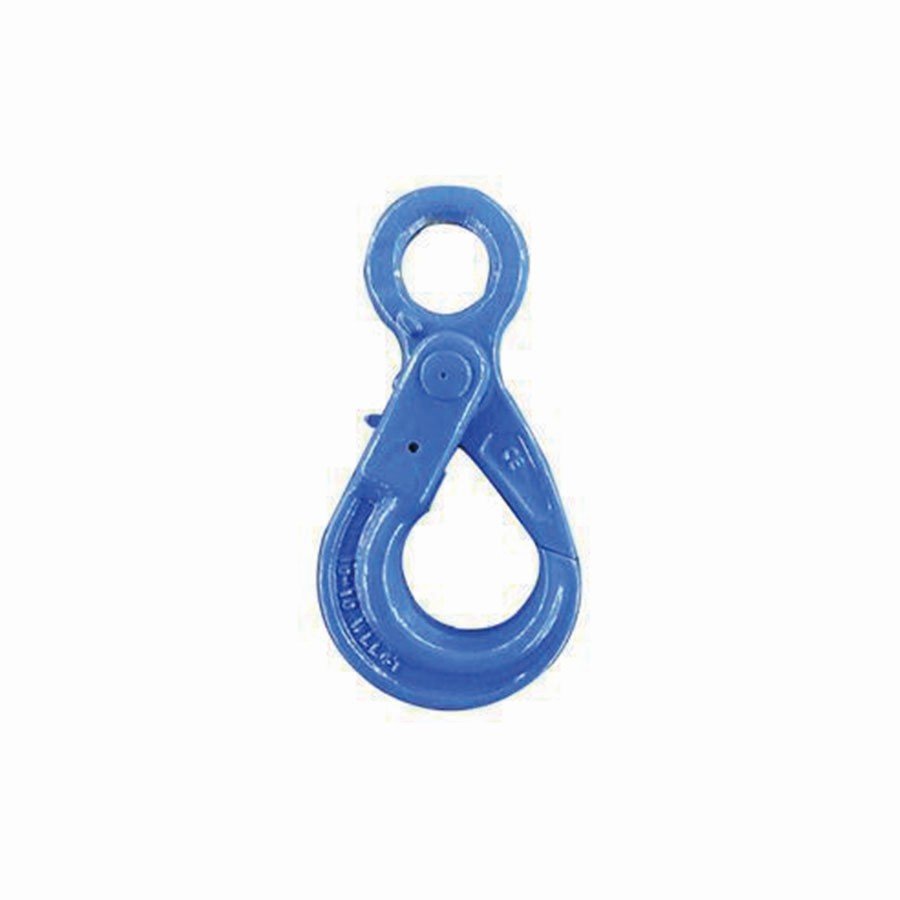

Alloy Steel Self Locking Eye Hook

Your current location:

The alloy steel self locking eye hook has the following features
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying;
● Color code: Blue RAL5015.

Product Description

Parameters (Unit: mm)

Item code	Weight (kg)	Working load limit (t)	Breaking load (t)	A	D±1	E±1	H±1	R±2	M±2	L±3
10-SR1005-06	0.5	1.4	5.6	21	43	28	20	110	70	141
10-SR1005-08	0.9	2.5	10	27	51	35.5	26	137	90	175
10-SR1005-10	1.5	4	16	34.5	64.3	45	30	169	108	212.5
10-SR1005-13	2.7	6.7	26.8	40	80	53.5	40.5	209	138.5	270
10-SR1005-16	5.7	10	40	50	104	62	50.5	254	170.5	331
10-SR1005-20	7.9	16	64	60	120	76.5	62	277	192.5	369
10-SR1005-22	11.2	19	76	70	134	80	66	319.5	205	417
