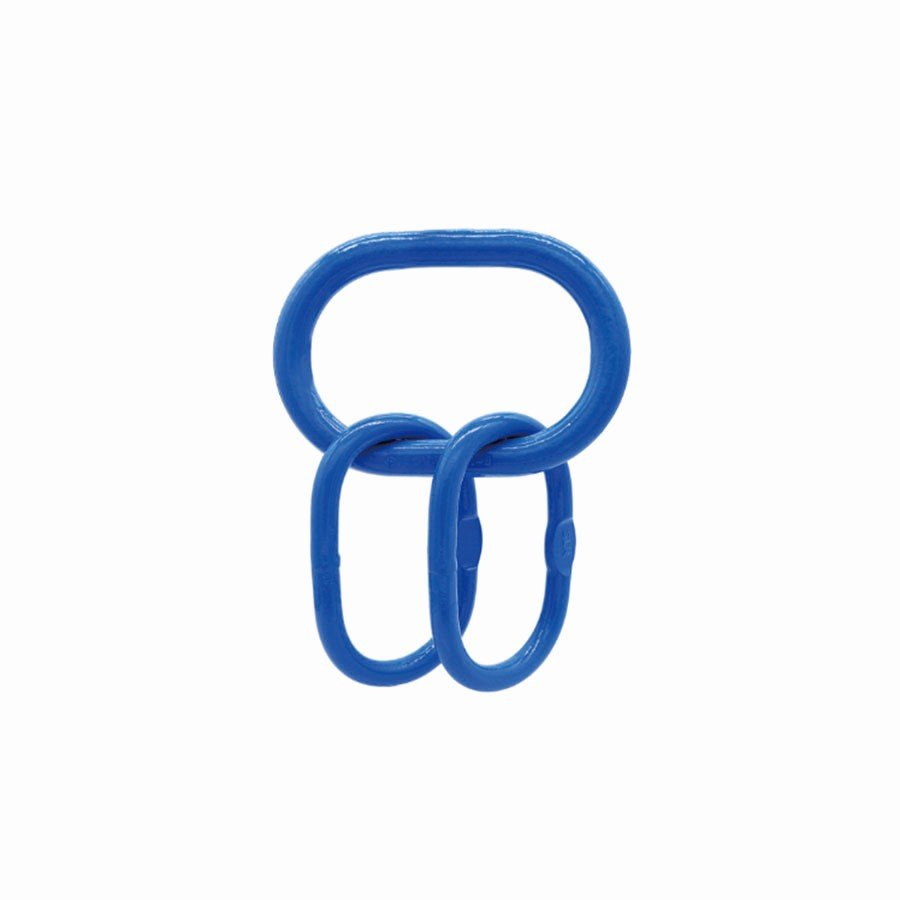

G100 Master Link Assembly
Product Description

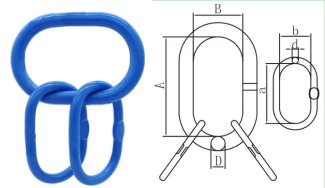

ITEM CODE | WEIGHT(Kg) | WLL(T) | B.L(T) | DIMENSION(MM) | |||||
A | B | D | a | b | d | ||||
10-SRML1015-06 | 1.8 | 3.5 | 14 | 150±5 | 90±4 | 19±1.5 | 120±5 | 70±4 | 14±1.5 |
10-SRML1015-08 | 3 | 5 | 20 | 160±5 | 95±4 | 22±1.5 | 140±5 | 80±4 | 17±1.5 |
10- SRML1015-10 | 6.5 | 11.5 | 46 | 200±5 | 120±5 | 30±1.5 | 160±5 | 95±4 | 22±1.5 |
10-SRML1015-13 | 15 | 17 | 68 | 250±6 | 150±5 | 40±2 | 190±5 | 110±5 | 25±1.5 |
10-SRML1015-16 | 23 | 28 | 112 | 300±6 | 200±5 | 50±2 | 200±5 | 120±5 | 32±2 |
