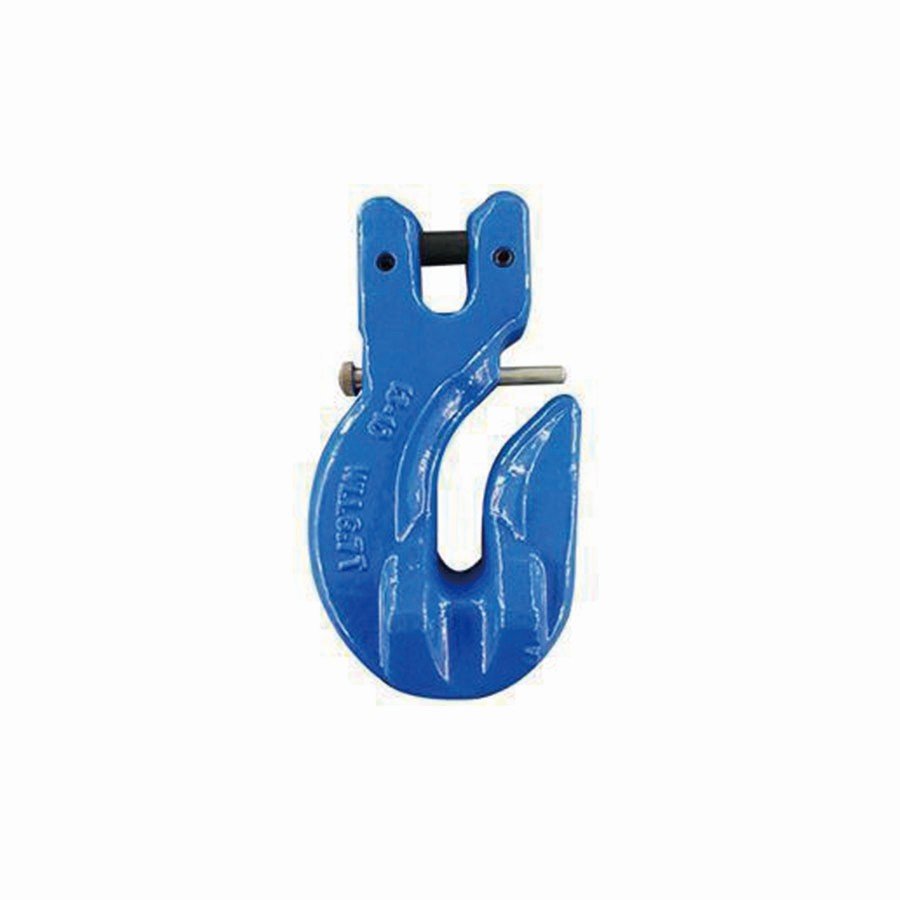

G100 SPECIAL CLEVIS GRAB HOOK WITH SAFETY PIN
Product Description
Parameters (Unit: mm)
Item Code | Weight (kg) | Working load limit (t) | Breaking load (t) | A±1 | B±0.8 | R±0.5 | E2±0.5 | E±0.5 | L±3 |
10-SR1024-8 | 0.5 | 2.5 | 10 | 35 | 25 | 12 | 16.5 | 10.5 | 110 |
10-SR1024-10 | 1.0 | 4 | 16 | 64 | 32 | 15 | 21 | 14 | 136.5 |
10-SR1024-13 | 2.2 | 6.7 | 26.8 | 57 | 40 | 20.5 | 27.5 | 15.5 | 180 |
Ultimate load is 4 times the Working Load Limit.
