● All sizes are forged.
● Ultra-large dimension (big inside width and big inside length).

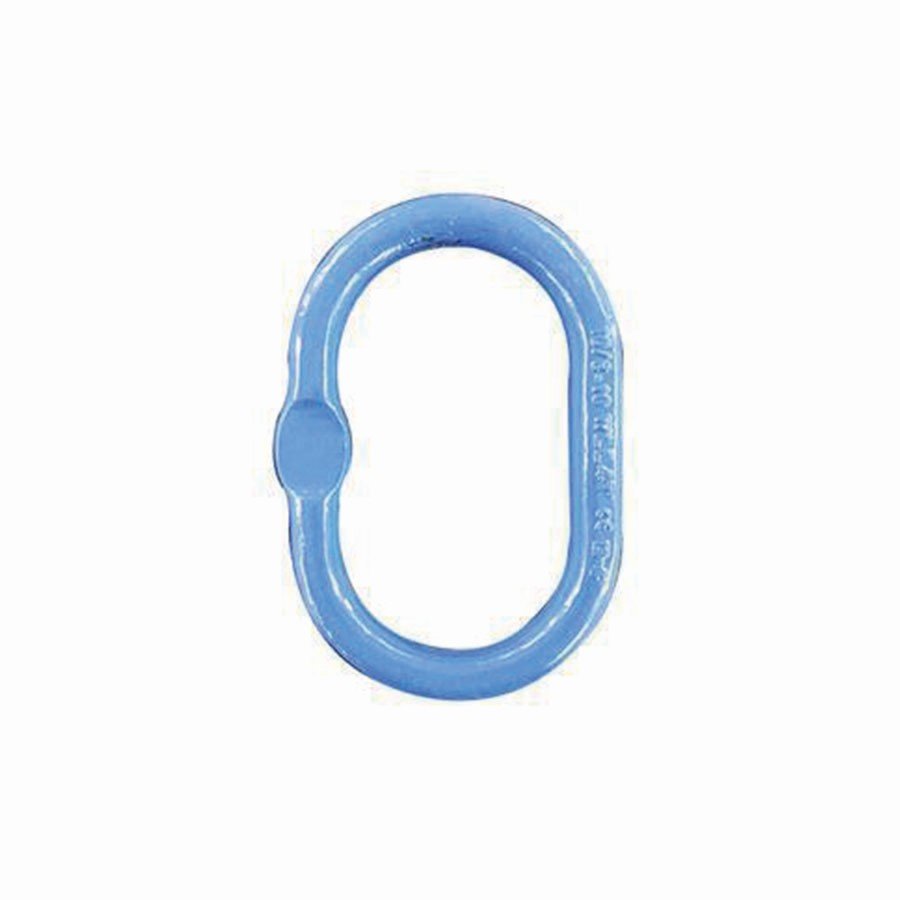

SR1014 G100 ULTRA-LARGE FORGED MASTER LINK
● All sizes are forged.
● Ultra-large dimension (big inside width and big inside length).
Product Description
Parameters (Unit: mm)
Item Code | G100 Chain Diametermm | Weight (kg) | Working load limit(t) | Dimension (mm) | |||
1 Leg Sling | 2 Leg Sling | A | B | D | |||
8-SR1014-108 | 8/10 | 8 | 3.7 | 4 | 340 | 180 | 25 |
8-SR1014-1310 | 13 | 10 | 4.7 | 6.7 | 340 | 180 | 28 |
8-SR1014-1613 | 16 | 13 | 7.1 | 10 | 340 | 180 | 34 |
8-SR1014-2016 | 20 | 16 | 8.9 | 16 | 340 | 180 | 42 |
Ultimate load is 4 times the Working Load Limit.
All sizes: there will be pressing flat only on request.
The pressing flat is for use with SLR1027-G100 OMEGA LINK.
