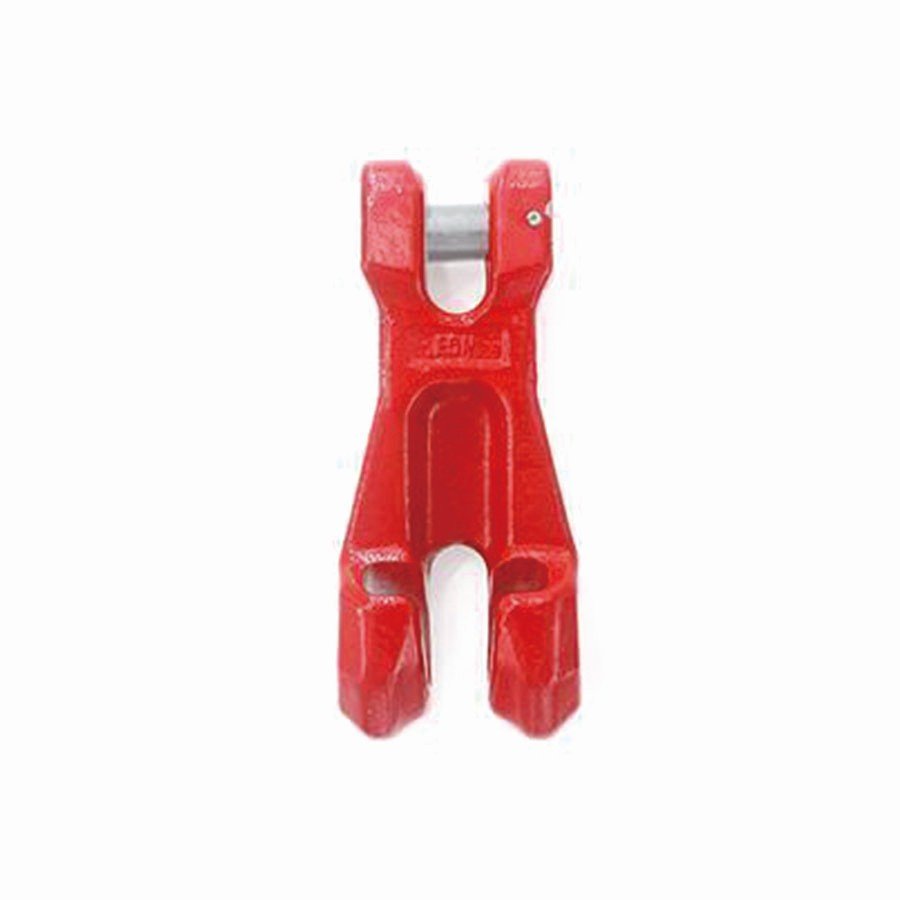

Alloy Steel Clevis Shortening Clutch

Alloy Steel Clevis Shortening Clutch

● It can be matched with sling and G80 chains which can meet the standard EN818-2;

● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Powder plastified. Surface treatment:
● Color code: red RAL3020/yellow RAL1003.


Product Description


Parameters (Unit: mm)

Item Code

Weight (kg)

Woring Load Limit (t)

Breaking Load (t)

P±0.5

C±0.5

A±0.3

B±2

H±1

S±0.3

L±2

D±0.5

8-SR073-06

0.17

1.12

4.48

7.5

7.5

8

44

10.3

12

73.5

7.8

8-SR073-7/8

0.37

2

8

9.5

9.5

10.5

61.7

14

17

101

9.2

8-SR073-10

0.97

3.15

12.6

13

13

12.4

92

18.4

28

138

13.2

8-SR073-13

2.01

5.3

21.2

16.5

16.5

16

115

22.7

34.5

177

16.2

8-SR073-16

3.32

8

32

21

21

19.5

143

28.5

40

220

20

8-SR073-20

6.2

12.5

50

23.5

23.5

23

152

33.6

46

238

24.3

8-SR073-22

8.5

15

60

25.5

25.5

26

195

39

57.5

295

28.1
