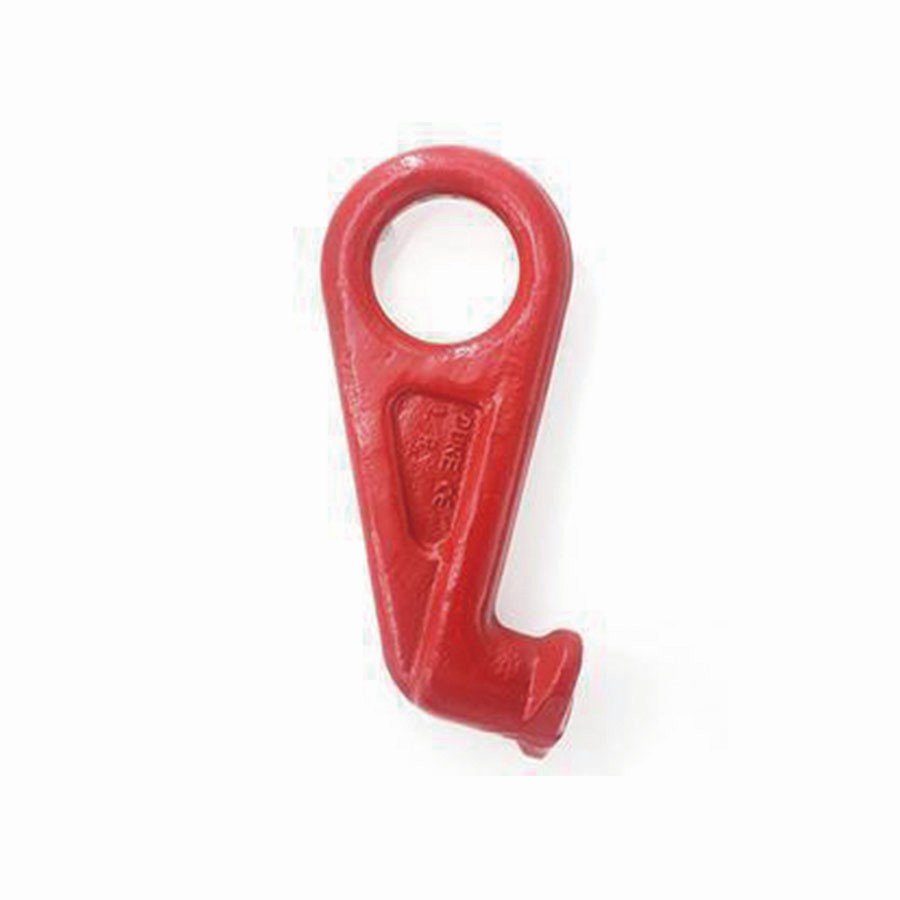

Alloy Steel Container Lifting Lug
Features
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.
Product Description

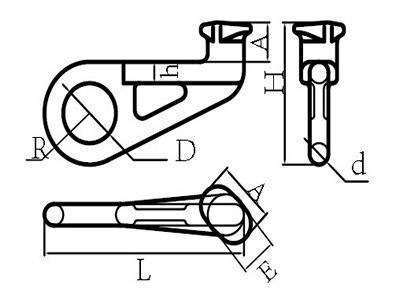

Parameters (Unit: mm)
Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | A±1 | M±1 | H±2 | h±1 | E±1 | R±1 | D±1 | d±1 | L±2 |
SR-633-S | 4 | 12.5 | 50 | 46 | 75 | 166 | 25 | 48 | 60 | 70 | 25 | 265 |

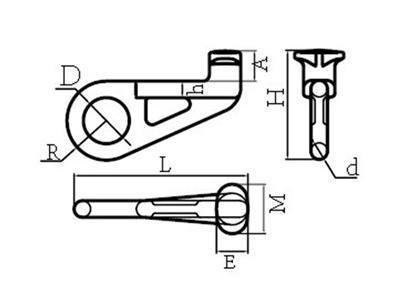

S LR633-G80 CONTAINER LIFTING LUG LEFT TYPE 45°
Parameters (Unit: mm)
Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | A±1 | M±1 | H±2 | h±1 | E±1 | R±1 | D±1 | d±1 | L±2 |
SR-633-L | 4 | 12.5 | 50 | 46 | 75 | 166 | 25 | 48 | 60 | 70 | 25 | 265 |

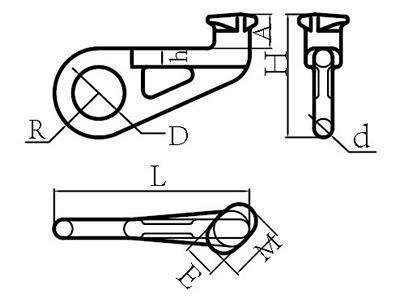

SR633-G80 CONTAINER LIFTING LUG RIGHT TYPE 45°
Parameters (Unit: mm)
Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | A±1 | M±1 | H±2 | h±1 | E±1 | R±1 | D±1 | d±1 | L±2 |
SR-633-R | 4 | 12.5 | 50 | 46 | 75 | 166 | 25 | 48 | 60 | 70 | 25 | 265 |
