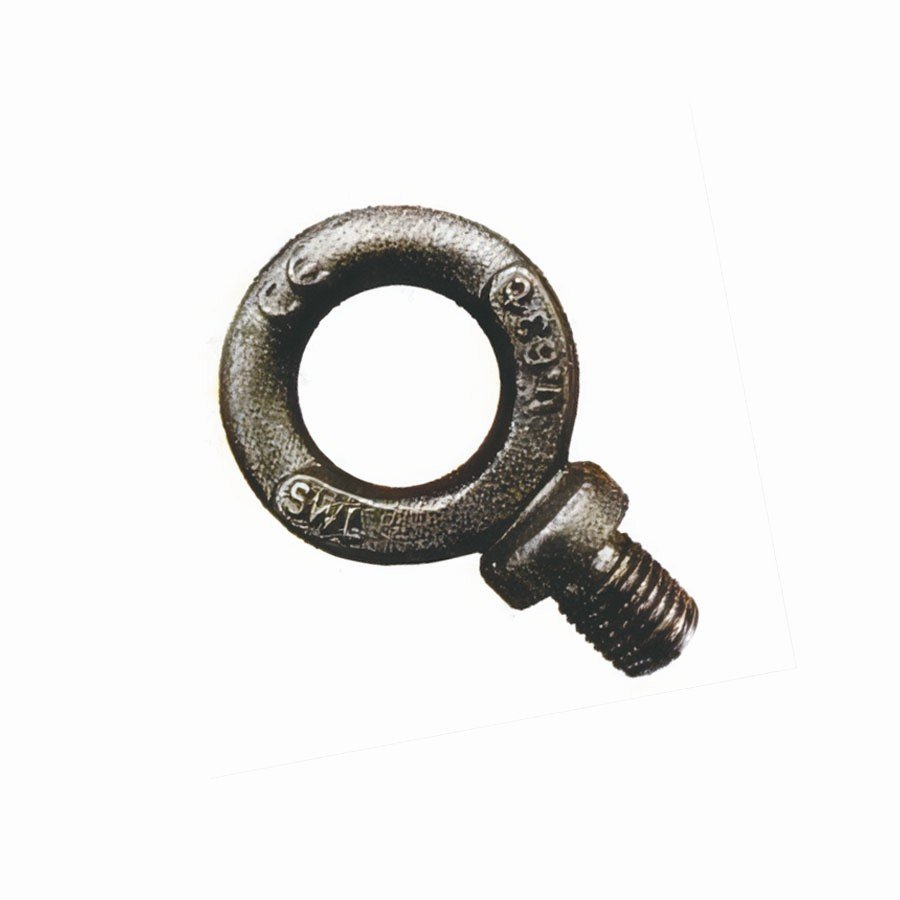

Dynamo Eye Bolts
DYNAMO Eye Bolts,Drop Forged,BS 4278 Table 3, Dynamo Eyebolts Coarse Metric Thread
Dynamo eyebolts metric coarse thread.
Hardened and tempered.
MBL equals 5 x SWL (tested 8 times).
Materil: Mild Steel or Customer Requirments.
Finished: Hot Drop Forged with self-color or E-Galv. or Hot Dipped Galv or Upon Request.
Product Description
ART. NO. | Safe Working Load tonnes | Metric Thread dia | B mm | C mm | D mm | E mm | F mm | G mm | H mm | J mm | K mm |
SRDEB01 | 0.32 | 12 | 17 | 14 | 5 | 22 | 9 | 27 | 18 | 1 | 3 |
SRDEB02 | 0.63 | 16 | 23 | 18 | 6 | 29 | 11 | 34 | 23 | 1 | 3 |
SRDEB03 | 1.25 | 20 | 32 | 25 | 9 | 40 | 15 | 47 | 32 | 1 | 5 |
SRDEB04 | 2 | 24 | 40 | 32 | 12 | 51 | 19 | 60 | 40 | 2 | 6 |
SRDEB05 | 3.2 | 30 | 51 | 41 | 14 | 64 | 24 | 76 | 51 | 2 | 7 |
SRDEB06 | 5 | 36 | 63 | 50 | 18 | 79 | 30 | 95 | 63 | 3 | 9 |
SRDEB07 | 6.3 | 42 | 70 | 56 | 20 | 88 | 33 | 105 | 70 | 3 | 10 |
SRDEB08 | 8 | 48 | 79 | 63 | 22 | 99 | 37 | 118 | 79 | 3 | 11 |
SRDEB09 | 10 | 52 | 89 | 71 | 26 | 112 | 42 | 134 | 89 | 3 | 13 |
