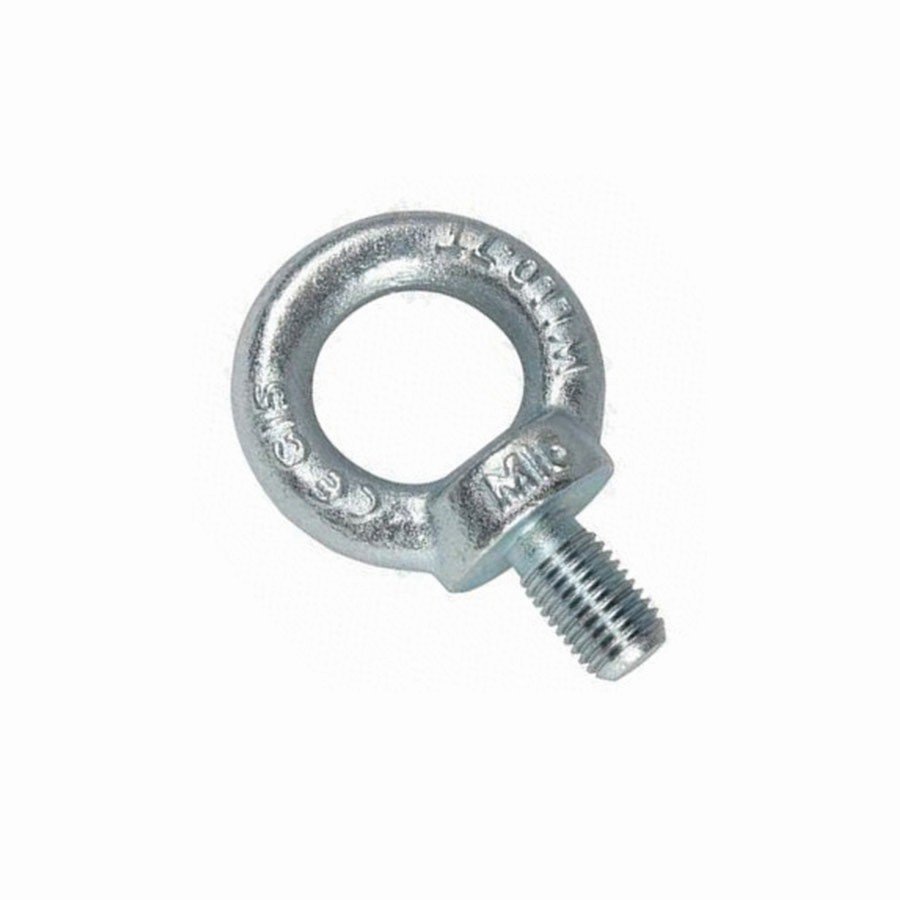

JIS1168 Type Eye Bolt

3
JIS1168 Type Eye Bolt

JIS1168 Type Eye Bolt

Material: Carbon Steel.
Surface: Self-colored, Zinc Plated.

Also available in stainless steel 304/316, stainless steel eye bolt/nut.


Product Description

ART. NO.

Size

Dimension(in)

S.W.L.

Weight

MM

INCH

A

B

C

D

H

L

(Ton)

(lbs)

SRJISEB01

M8

5/16∪

1.28

0.79

0.25

0.63

1.31

0.59

0.08

0.09

SRJISEB02

M10

3/8∪

1.61

0.98

0.31

0.79

1.63

0.71

0.15

0.15

SRJISEB03

M12

1/2∪

1.97

1.18

0.39

0.98

2.01

0.87

0.22

0.31

SRJISEB04

M16

5/8∪

2.36

1.38

0.49

1.18

2.36

1.06

0.45

0.57

SRJISEB05

M20

3/4∪

2.83

1.57

0.63

1.38

2.8

1.18

0.63

0.95

SRJISEB06

M22

7/8∪

3.15

1.73

0.71

1.57

3.11

1.38

0.79

1.23

SRJISEB07

M24

1∪

3.54

1.97

0.79

1.77

3.54

1.5

0.95

1.87

SRJISEB08

M30

1-1/4∪

4.33

2.36

0.98

2.36

4.33

1.77

1.5

3.74

SRJISEB09

M36

1-1/2∪

5.24

2.76

1.24

2.76

5.18

2.17

2.3

6.61

SRJISEB10

M42

1-3/4∪

5.94

3.15

1.4

3.15

5.93

2.56

3.4

9.91

SRJISEB11

M48

2∪

6.69

3.54

1.57

3.54

6.69

2.76

4.5

14.76

SRJISEB12

M64

8.27

4.33

1.97

4.33

8.27

3.54

9

24.89

SRJISEB13

M80

10.47

5.51

2.48

5.12

10.35

4.13

15

SRJISEB14

M90

11.89

6.3

2.8

5.91

11.85

4.72

18

SRJISEB15

M100

13.39

7.09

3.15

6.69

13.98

5.12

20
