Material: Aluminum, or steel
Finish: Self Color
Other types: DIN3090 Aluminium Sleeves, Oval Sleeves, Stop buttons Type,Hourglass sleeves Type, Flemish EYE Steel Swaging Sleeves(S-505),Cooper Hourglass Sleeves, Cooper Ferrules..etc .

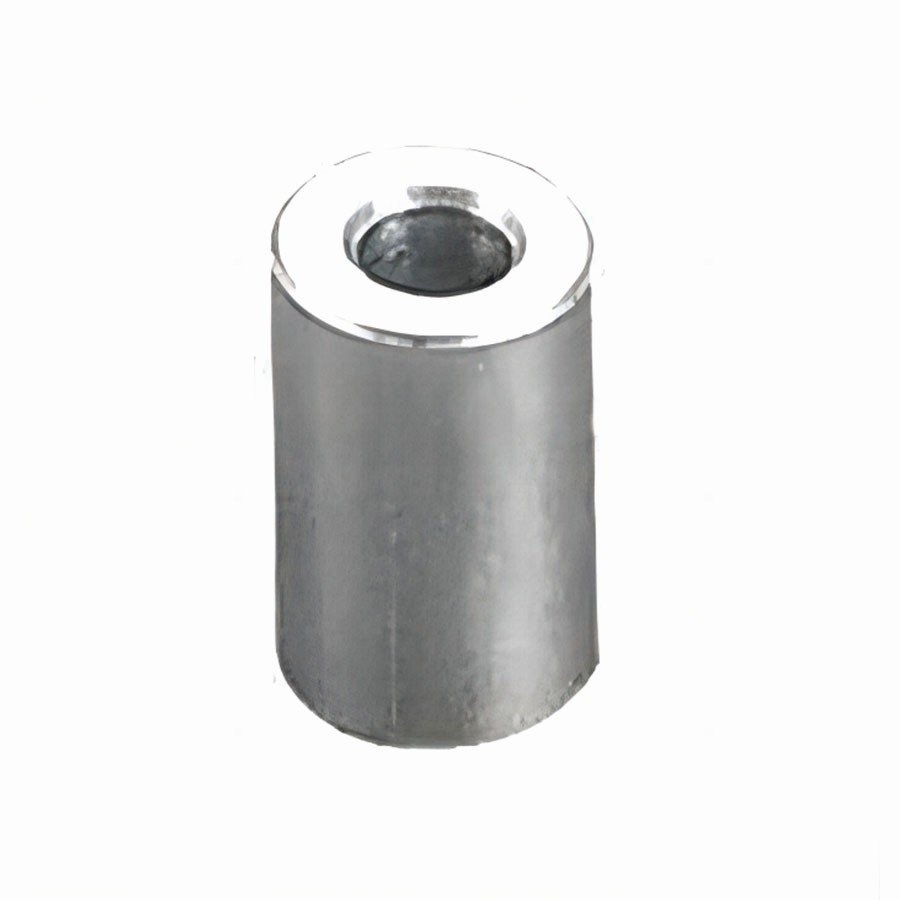

Aluminium Stop Buttons
Material: Aluminum, or steel
Finish: Self Color
Other types: DIN3090 Aluminium Sleeves, Oval Sleeves, Stop buttons Type,Hourglass sleeves Type, Flemish EYE Steel Swaging Sleeves(S-505),Cooper Hourglass Sleeves, Cooper Ferrules..etc .
Product Description
PART NO. | FOR SIZE(inch) | A(in) | D(in) | L(in) | MAX.AFTER SWAGE | WEIGHT |
DIMENSIONS | Lbs/100Pcs | |||||
(inch) | ||||||
SRSSB01 | 1/8 | 0.14 | 0.44 | 0.5 | 0.4 | 2 |
SRSSB02 | 3/16 | 0.2 | 0.56 | 0.7 | 0.52 | 4 |
SRSSB03 | 1/4 | 0.3 | 0.63 | 1.06 | 0.58 | 8 |
SRSSB04 | 5/16 | 0.36 | 0.88 | 1.13 | 0.77 | 16 |
SRSSB05 | 3/8 | 0.42 | 0.88 | 1.48 | 0.77 | 15 |
SRSSB06 | 7/16 | 0.48 | 1.13 | 1.63 | 1.03 | 30 |
SRSSB07 | 1/2″ | 0.55 | 1.31 | 1.89 | 1.16 | 50 |
SRSSB08 | 9/16 | 0.61 | 1.44 | 2.02 | 1.29 | 70 |
SRSSB09 | 5/8 | 0.67 | 1.56 | 2.42 | 1.42 | 100 |
SRSSB10 | 3/4 | 0.79 | 1.69 | 2.73 | 1.55 | 131 |
SRSSB11 | 7/8 | 0.94 | 2 | 3.27 | 1.8 | 220 |
SRSSB12 | 1 | 1.06 | 2.25 | 3.67 | 2.05 | 310 |
SRSSB13 | 1-1/8 | 1.19 | 2.56 | 4.05 | 2.3 | 450 |
SRSSB14 | 1-1/4 | 1.33 | 2.81 | 4.58 | 2.56 | 650 |
