Other types: DIN3090 Aluminium Sleeves, Oval Sleeves, Stop buttons Type,Hourglass sleeves Type, Flemish EYE Steel Swaging Sleeves(S-505),Cooper Hourglass Sleeves, Cooper Ferrules..etc.

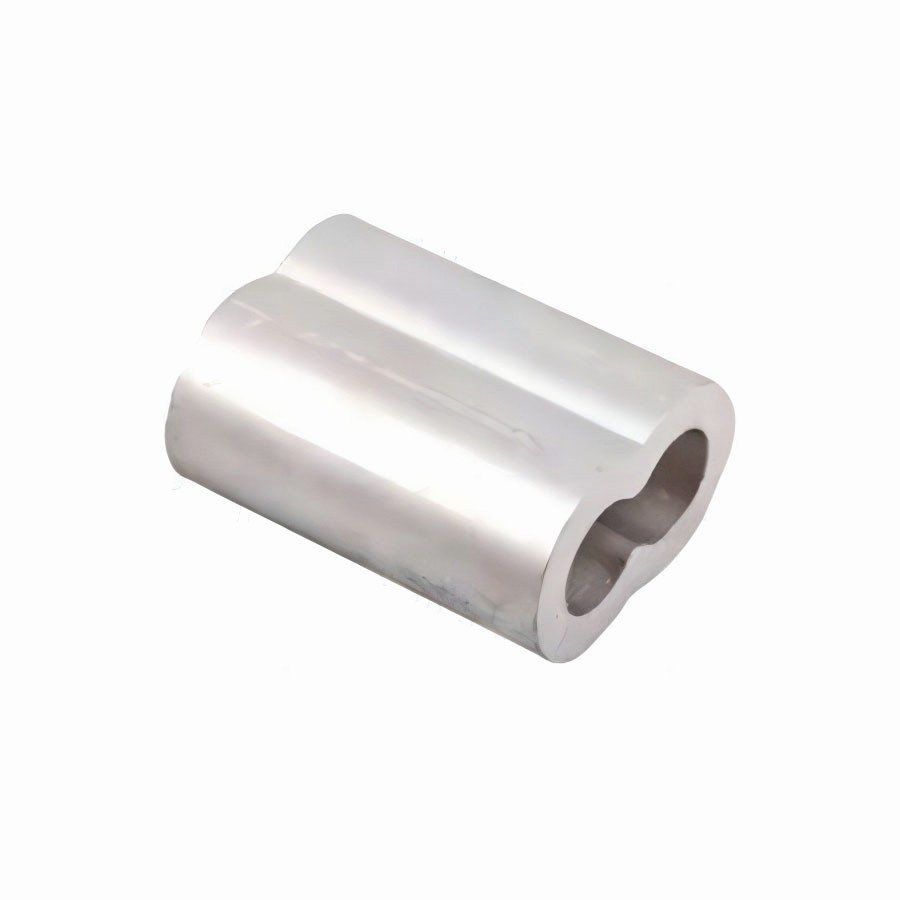

Hourglass Sleeves
Other types: DIN3090 Aluminium Sleeves, Oval Sleeves, Stop buttons Type,Hourglass sleeves Type, Flemish EYE Steel Swaging Sleeves(S-505),Cooper Hourglass Sleeves, Cooper Ferrules..etc.
Product Description
Part No. | SIZE | A | B | C | D | L | WEIGHT | |
in | mm | mm | mm | mm | mm | mm | Kgs/1000Pcs | |
SRAHS01 | 3/64″ | 1.19 | 1.59 | 3.18 | 3.6 | 5.2 | 9.5 | 0.276 |
SRAHS02 | 1/16″ | 1.58 | 1.98 | 3.97 | 4.4 | 6.4 | 9.5 | 0.433 |
SRAHS03 | 5/64″ | 1.98 | 2.38 | 4.76 | 5.2 | 7.9 | 9.5 | 0.645 |
SRAHS04 | 3/32″ | 2.38 | 3.18 | 6.35 | 7.1 | 10.3 | 12.7 | 1.45 |
SRAHS05 | 1/8″ | 3.18 | 3.97 | 7.94 | 8.7 | 12.7 | 16 | 2.7 |
SRAHS06 | 5/32″ | 3.97 | 4.76 | 9.53 | 9.53 | 14.3 | 17 | 3.67 |
SRAHS07 | 3/16″ | 4.76 | 5.56 | 11.11 | 11.11 | 16.7 | 25 | 7.18 |
SRAHS08 | 7/32″ | 5.56 | 6.35 | 12.7 | 12.7 | 19 | 26 | 10 |
SRAHS09 | 1/4″ | 6.35 | 7.14 | 14.29 | 13.5 | 20.6 | 28 | 11.76 |
SRAHS10 | 9/32″ | 7.14 | 7.94 | 15.88 | 14.3 | 22.2 | 30 | 13.62 |
SRAHS11 | 5/16″ | 7.94 | 9.53 | 19.05 | 17.5 | 26.2 | 32 | 20.94 |
SRAHS12 | 3/8″ | 9.53 | 11.11 | 22.23 | 19.1 | 29.4 | 36 | 28.18 |
SRAHS13 | 7/16″ | 11.11 | 12.7 | 25.4 | 23.8 | 36.5 | 42 | 52 |
SRAHS14 | 1/2″ | 12.7 | 14.29 | 28.58 | 27 | 41.3 | 50 | 80.15 |
SRAHS15 | 9/16″ | 14.29 | 15.88 | 31.75 | 28.6 | 44.5 | 54 | 99.88 |
SRAHS16 | 5/8″ | 15.88 | 17.46 | 34.93 | 31.8 | 49.2 | 64 | 139.78 |
