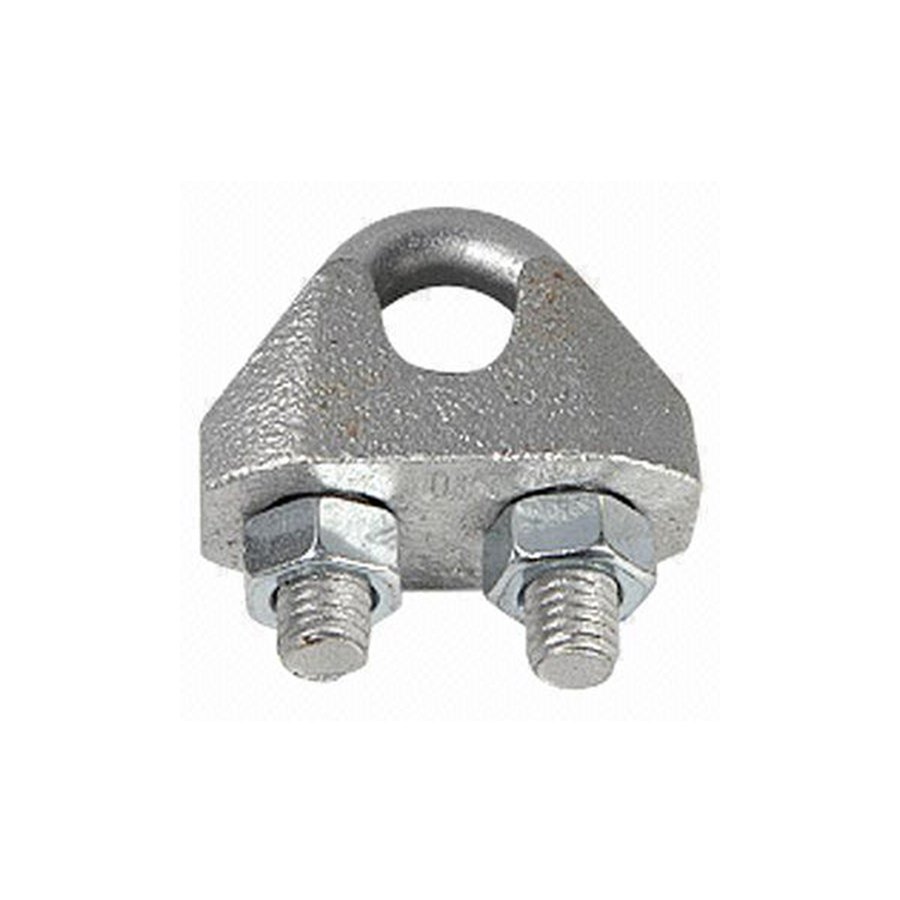

DIN1142 Wire Rope Clip
Product Description
ART NO. | SIZE | A | B | C | D | E | F | G | 100/WT |
mm | mm | mm | mm | mm | mm | mm | mm | kg | |
SRC114201 | 5 | 12 | 13 | 25 | 5 | 13 | 13 | 25 | 2.08 |
SRC114202 | 6.5 | 14 | 16 | 30 | 6 | 14 | 17 | 32 | 4 |
SRC114203 | 8 | 18 | 20 | 39 | 8 | 18 | 20 | 41 | 8.2 |
SRC114204 | 11 | 20 | 20 | 40 | 8 | 21 | 24 | 46 | 9.2 |
SRC114205 | 13 | 27 | 28 | 55 | 12 | 29 | 30 | 64 | 27.5 |
SRC114206 | 16 | 32 | 32 | 64 | 14 | 35 | 35 | 76 | 43 |
SRC114207 | 19 | 36 | 32 | 68 | 14 | 40 | 36 | 83 | 49 |
SRC114208 | 22 | 40 | 34 | 74 | 16 | 44 | 40 | 96 | 68 |
SRC114209 | 26 | 46 | 38 | 84 | 20 | 51 | 50 | 111 | 117 |
SRC114210 | 30 | 54 | 41 | 95 | 20 | 59 | 55 | 127 | 140 |
SRC114211 | 34 | 60 | 45 | 105 | 22 | 67 | 60 | 141 | 213 |
SRC114212 | 40 | 68 | 49 | 117 | 24 | 77 | 65 | 159 | 268 |
