• Size – 5mm-28mm
• Material – carbon steel
• Surface – Galvanized,painted and others
• Technology – casting, forging

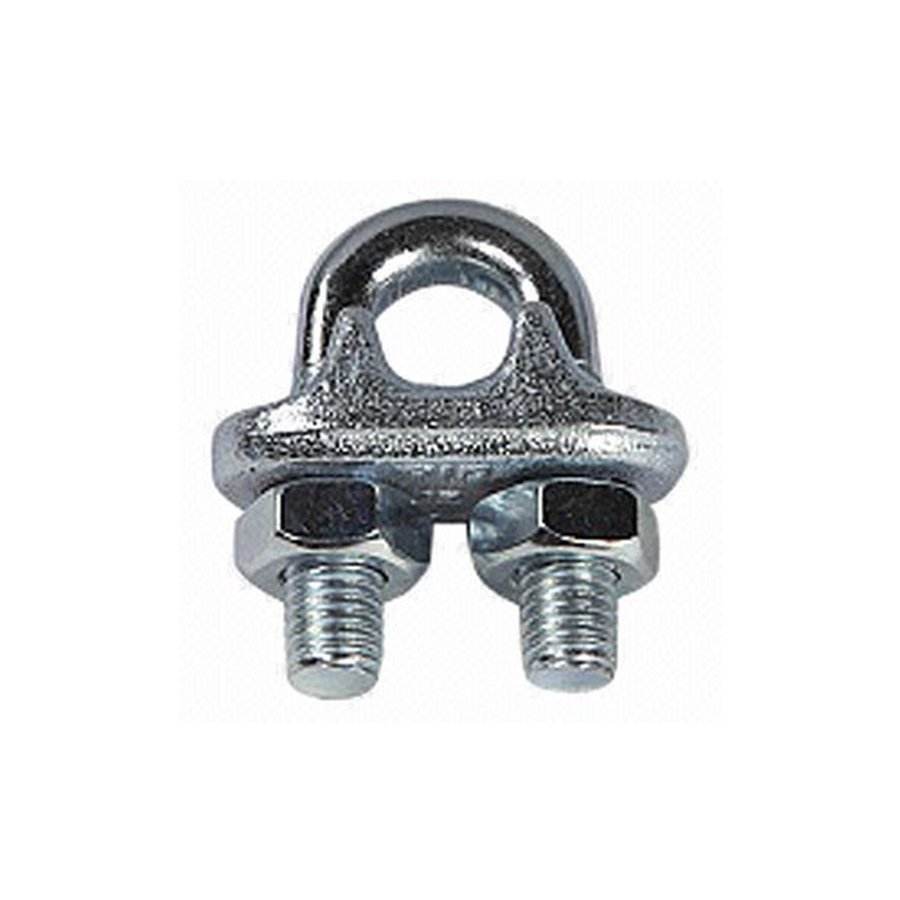

Drop Forged Italy Type Wire Rope Clip
• Size – 5mm-28mm
• Material – carbon steel
• Surface – Galvanized,painted and others
• Technology – casting, forging
Product Description
SIZE | A | B | C | D | I | L | L1 |
M3-4 | 21 | 14 | 9 | 4 | 9 | 20 | 12 |
M5 | 25 | 17 | 10 | 5 | 11 | 24 | 13 |
M6 | 30 | 19 | 11 | 6 | 14 | 33 | 18 |
M8 | 34 | 20 | 12 | 6 | 16 | 35 | 18 |
M10 | 38 | 22 | 14 | 8 | 18.5 | 44 | 22 |
M11 | 41 | 24 | 14 | 8 | 22 | 44 | 22 |
M12 | 45 | 25 | 16 | 10 | 24 | 55 | 30 |
M14 | 46 | 27 | 17 | 10 | 24 | 55 | 30 |
M16 | 53 | 31 | 18 | 10 | 30 | 65 | 33 |
M18 | 59 | 33 | 20 | 12 | 30 | 78 | 38 |
M20 | 60 | 34 | 22 | 12 | 34 | 78 | 38 |
M22 | 66 | 35 | 23 | 12 | 36 | 81 | 45 |
M24-25 | 70 | 40 | 24 | 12 | 39 | 86 | 45 |
M28 | 80 | 43 | 30 | 14 | 42 | 110 | 55 |
M32 | 92 | 45 | 34 | 16 | 49 | 115 | 60 |
M38 | 95 | 51 | 39 | 16 | 57 | 130 | 63 |
