G-411 meets the performance requirements of Federal Specification FF-T-276b
Type Ⅱ,except for those provisions required of the contractor.
Hot Dip Galvanized steel.
The standard choice for light duty applications and loading conditions.

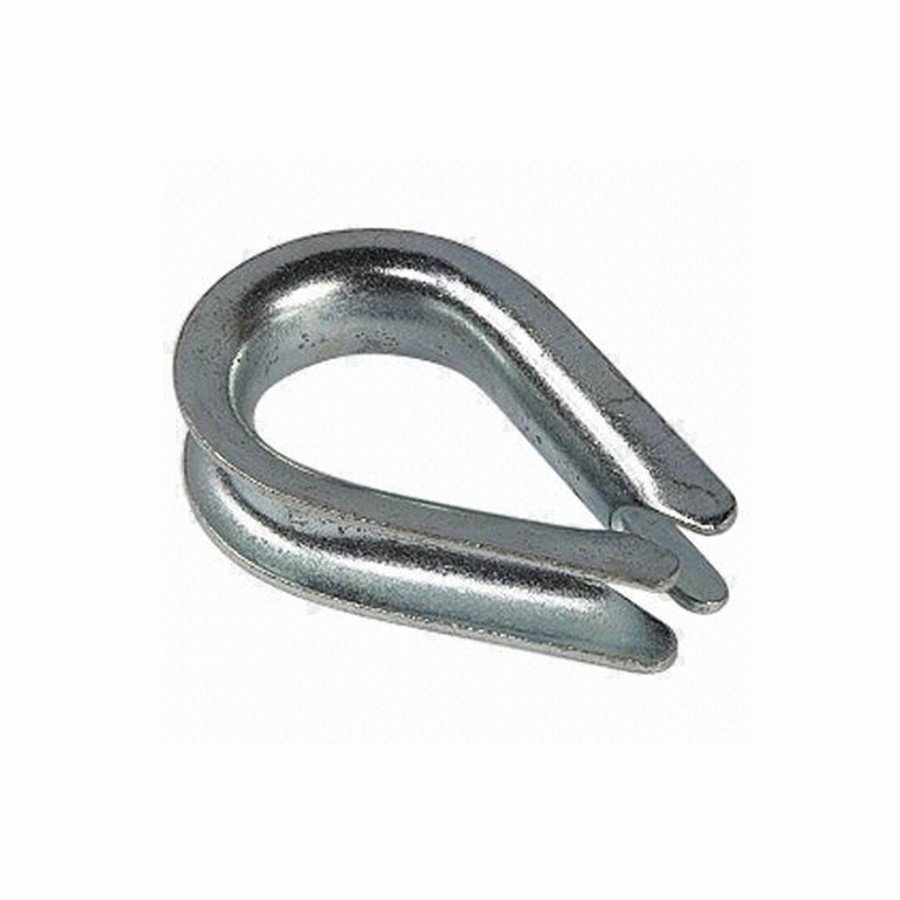

Light Duty US Type Wire Rope Thimble G411
G-411 meets the performance requirements of Federal Specification FF-T-276b
Type Ⅱ,except for those provisions required of the contractor.
Hot Dip Galvanized steel.
The standard choice for light duty applications and loading conditions.
Product Description
PART NO. | ROPE DIA. | DIMENSIONS | |||||||
(inch) | |||||||||
(inch) | A | B | C | D | E | F | G | H | |
RLDT0108 | 1/8 | 1.94 | 1.31 | 1.06 | 0.69 | 0.25 | 0.16 | 0.05 | 0.13 |
RLDT0316 | 3/16 | 1.94 | 1.31 | 1.06 | 0.69 | 0.31 | 0.22 | 0.05 | 0.13 |
RLDT0104 | 1/4 | 1.94 | 1.31 | 1.06 | 0.69 | 0.38 | 0.28 | 0.05 | 0.13 |
RLDT0516 | 5/16 | 2.13 | 1.5 | 1.25 | 0.81 | 0.44 | 0.34 | 0.05 | 0.13 |
RLDT0308 | 3/8 | 2.38 | 1.63 | 1.47 | 0.94 | 0.53 | 0.41 | 0.06 | 0.16 |
RLDT0102 | 1/2 | 2.75 | 1.88 | 1.75 | 1.13 | 0.69 | 0.53 | 0.08 | 0.19 |
RLDT0508 | 5/8 | 3.5 | 2.25 | 2.38 | 1.38 | 0.91 | 0.66 | 0.13 | 0.34 |
RLDT0304 | 3/4 | 3.75 | 2.5 | 2.69 | 1.63 | 1.08 | 0.78 | 0.14 | 0.34 |
RLDT0708 | 7/8 | 5 | 3.5 | 3.19 | 1.88 | 1.27 | 0.94 | 0.16 | 0.44 |
RLDT1000 | 1 | 5.69 | 4.25 | 3.75 | 2.5 | 1.39 | 1.06 | 0.16 | 0.41 |
RLDT1108 | 1-1/8-1-1/4 | 6.25 | 4.5 | 4.31 | 2.75 | 1.75 | 1.31 | 0.22 | 0.5 |
