Forged steel turnbuckle frames din1478 type.
DIN1478 turnbuckle body

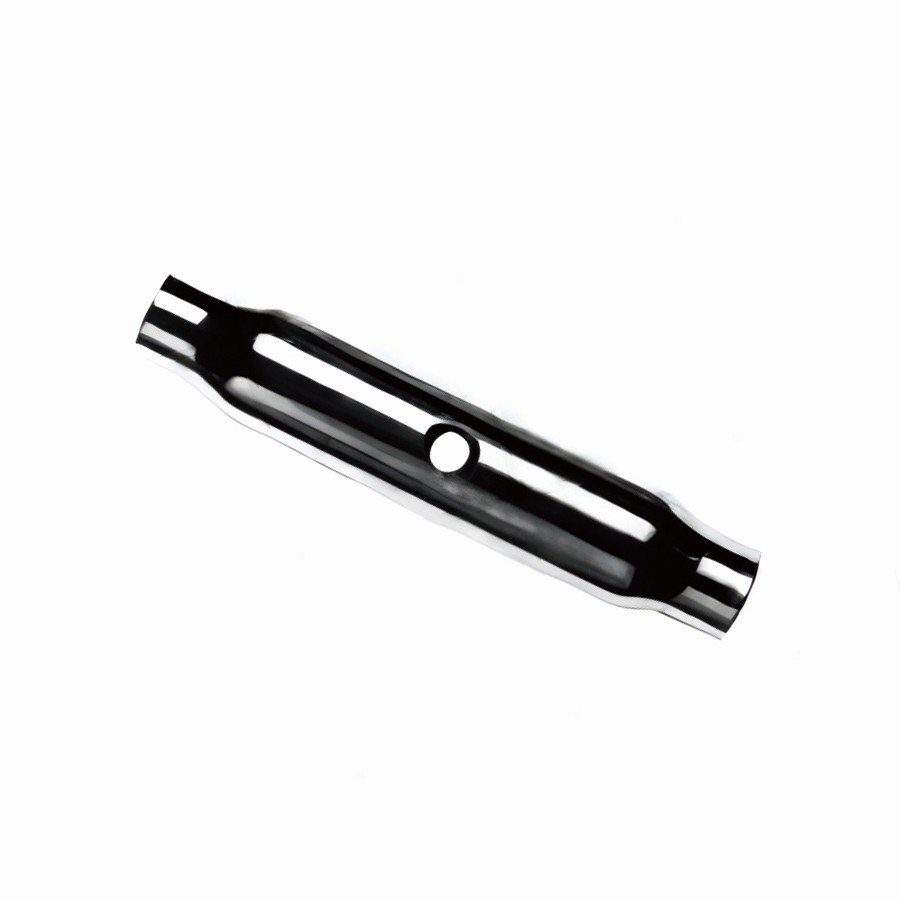

Turnbuckle Frames DIN 1478, Electrical Galvanized
Forged steel turnbuckle frames din1478 type.
DIN1478 turnbuckle body
Product Description

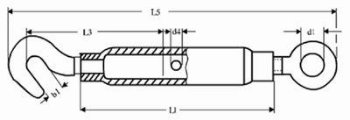

Item No. | Thread | Body length L1 | Adjustable | D4 | Hook | Eye | Total length | ||
Screwed in | |||||||||
L3 | b1 | L3 | d1 | L5 | |||||
MM | MM | MM | MM | MM | MM | MM | MM | MM | |
SR147806 | M6 | 110 | 90 | 6 | 85 | 8.5 | 80 | 9 | 172 |
SR147808 | M8 | 110 | 85 | 8 | 85 | 11 | 84 | 10 | 182 |
SR147810 | M10 | 125 | 85 | 8 | 112 | 13.5 | 105 | 14 | 213 |
SR147812 | M12 | 125 | 90 | 10 | 117 | 15.5 | 115 | 16 | 238 |
SR147816 | M16 | 170 | 120 | 10 | 138 | 19 | 165 | 22 | 320 |
SR147820 | M20 | 200 | 140 | 12 | 170 | 20.5 | 167 | 24 | 367 |
SR147824 | M24 | 255 | 180 | 12 | 205 | 26 | 205 | 27 | 447 |
SR147830 | M30 | 255 | 160 | 16 | 225 | 33 | 255 | 31 | 512 |
SR147836 | M36 | 295 | 180 | 16 | 255 | 44 | 276 | 43 | 568 |
SR147842 | M42 | 330 | 200 | 20 | 340 | 48 | 260 | 49 | 683 |
SR147848 | M48 | 355 | 210 | 20 | 360 | 58 | 300 | 58 | 755 |
