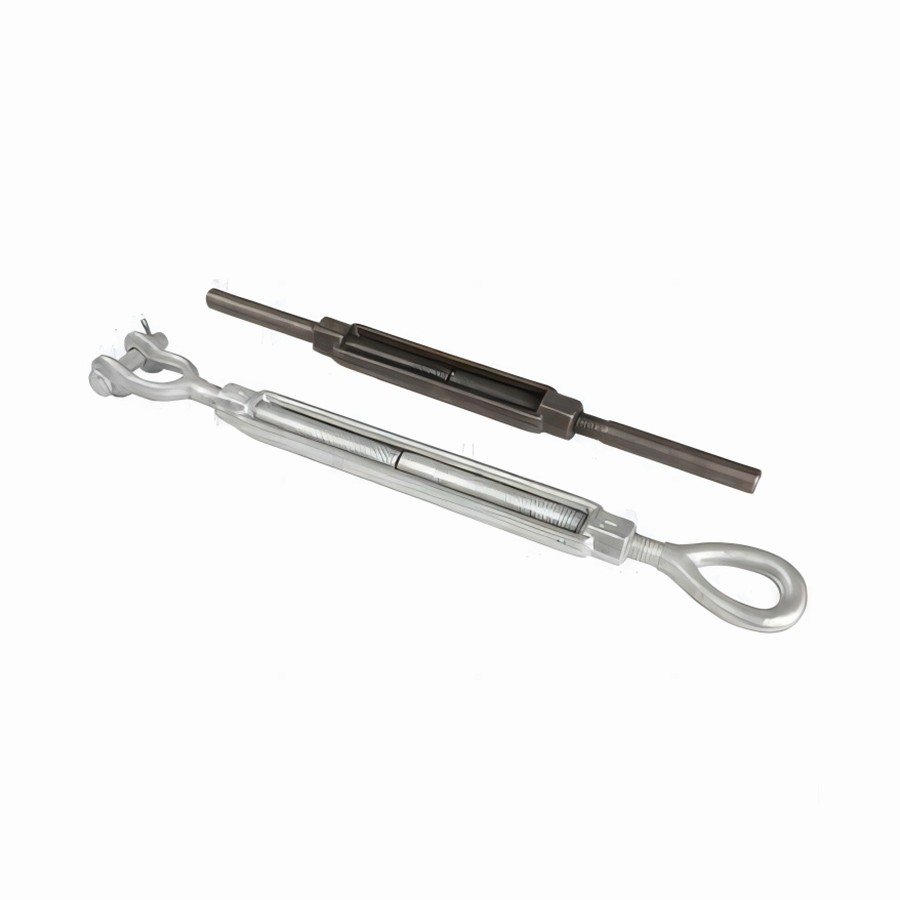

US Type Drop Forged Turnbuckle
Product name: U. S. Type Turnbuckle
Other model number: U. S. Type, DIN1480 type, Italy type, JIS frame type, DIN1478 type, Malleable iron type
Material: Carbon steel
Treatment: Drop Forged
Final: Galv. Or HDG or Self color
Packing: Cartons or Gunny bags, Pallet
Product Description
Item No. | Tread Dia & Take Up | Working Load Limit (lbs) | Weight Per 100 (lbs) | Dimensions (in) | |||||
A | B | C | D | E | F | ||||
SRTUS0606 | 3/8 x 6 | 1200 | 0.75 | 0.38 | 6 | 7.13 | 0.56 | 4.44 | 16 |
SRTUS0806 | 1/2 x 6 | 2200 | 1.25 | 0.5 | 6 | 7.5 | 0.75 | 4.25 | 16 |
SRTUS1006 | 5/8 x 6 | 3500 | 2.11 | 0.63 | 6 | 7.88 | 0.94 | 4.06 | 16 |
SRTUS1206 | 3/4 x 6 | 5200 | 3.27 | 0.75 | 6 | 8.25 | 1.13 | 4.38 | 17 |
SRTUS1406 | 7/8 x 6 | 7200 | 4.78 | 0.88 | 6 | 8.63 | 1.31 | 4.69 | 18 |
SRTUS1606 | 1 x 6 | 10000 | 6.36 | 1 | 6 | 9 | 1.5 | 5 | 19 |
SRTUS1612 | 1 x 12 | 10000 | 8.8 | 1 | 12 | 15 | 1.5 | 5 | 25 |
SRTUS1806 | 1 1/8 x 6 | 12400 | 8.88 | 1.13 | 6 | 9.13 | 1.56 | 4.94 | 19 |
SRTUS2006 | 1 1/4 x 6 | 15200 | 10.18 | 1.25 | 6 | 9.13 | 1.56 | 5.44 | 20 |
SRTUS2012 | 1 1/4 x 12 | 15200 | 13.6 | 1.25 | 12 | 15.12 | 1.56 | 5.44 | 26 |
SRTUS2412 | 1 1/2 x 12 | 21400 | 20.44 | 1.5 | 12 | 15.75 | 1.88 | 5.38 | 26.5 |
