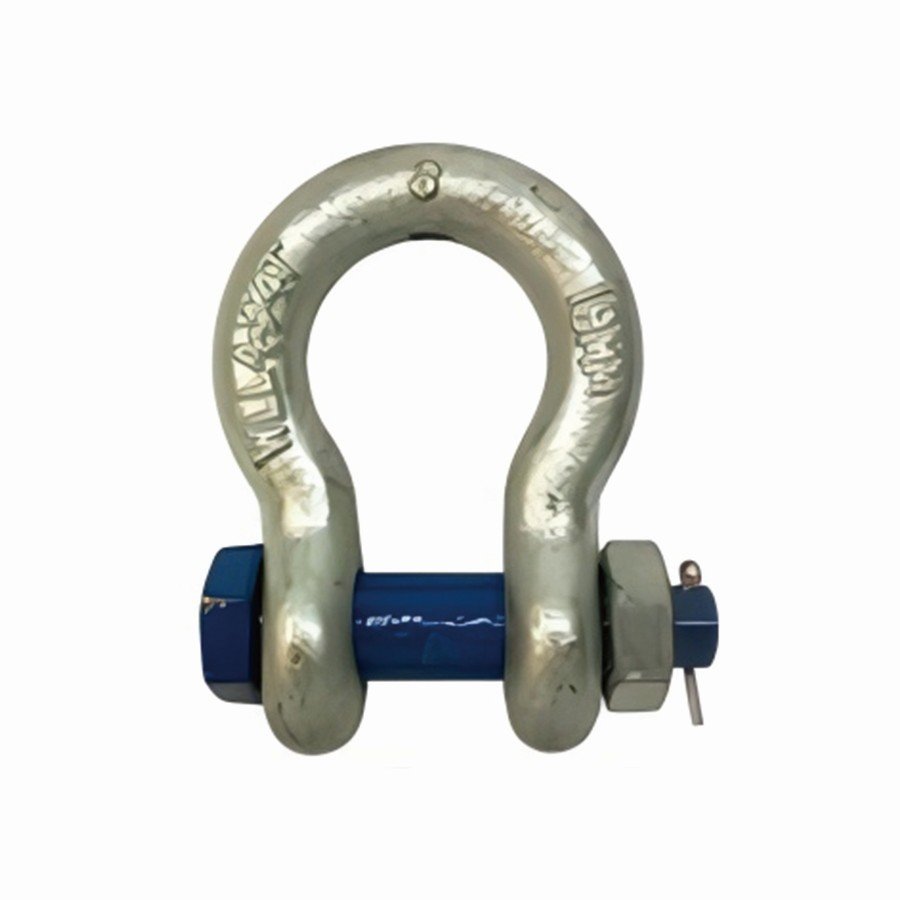

Grade S Bow Shackle With Safety Pin AS2741

 NO.

Size

Load

Each

+/-

(in.)

Limit

(lbs.)

(t)*

A

B

C

D

E

F

H

L

N

C

A

SR100551

3/16

1/3

0.06

0.38

0.25

0.88

0.19

0.6

0.56

1.47

0.98

0.19

0.06

0.06

SR100552

1/4

1/2

0.11

0.47

0.31

1.13

0.25

0.78

0.61

1.84

1.28

0.25

0.06

0.06

SR100553

5/16

3/4

0.22

0.53

0.38

1.22

0.31

0.84

0.75

2.09

1.47

0.31

0.06

0.06

SR100554

3/8

1

0.33

0.66

0.44

1.44

0.38

1.03

0.91

2.49

1.78

0.38

0.13

0.06

SR100555

7/16

1-1/2

0.49

0.75

0.5

1.69

0.44

1.16

1.06

2.91

2.03

0.44

0.13

0.06

SR100556

1/2

2

0.79

0.81

0.64

1.88

0.5

1.31

1.19

3.28

2.31

0.5

0.13

0.06

SR100557

5/8

3-1/4

1.68

1.06

0.77

2.38

0.63

1.69

1.5

4.19

2.94

0.69

0.13

0.06

SR100558

3/4

4-3/4

2.72

1.25

0.89

2.81

0.75

2

1.81

4.97

3.5

0.81

0.25

0.06

SR100559

7/8

6-1/2

3.95

1.44

1.02

3.31

0.88

2.28

2.09

5.83

4.03

0.97

0.25

0.06

SR100560

1

8-1/2

5.66

1.69

1.15

3.75

1

2.69

2.38

6.56

4.69

1.06

0.25

0.06

SR100561

1-1/8

9-1/2

8.27

1.81

1.25

4.25

1.13

2.91

2.69

7.47

5.16

1.25

0.25

0.06

SR100562

1-1/4

12

11.71

2.03

1.4

4.69

1.29

3.25

3

8.25

5.75

1.38

0.25

0.06

SR100563

1-3/8

13-1/2

15.83

2.25

1.53

5.25

1.42

3.63

3.31

9.16

6.38

1.5

0.25

0.13

SR100564

1-1/2

17

20.8

2.38

1.66

5.75

1.53

3.88

3.63

10

6.88

1.62

0.25

0.13

SR100565

1-3/4

25

33.91

2.88

2.04

7

1.84

5

4.19

12.34

8.8

2.25

0.25

0.13

SR100566

2

35

52.25

3.25

2.3

7.75

2.08

5.75

4.81

13.68

10.15

2.4

0.25

0.13

SR100567

2-1/2

55

98.25

4.13

2.8

10.5

2.71

7.25

5.69

17.9

12.75

3.13

0.25

0.25

SR100568

3

85

154

5

3.3

13

3.12

7.88

6.5

21.5

14.62

3.62

0.25

0.25

SR100569

3-1/2

120

265

5.25

3.76

14.63

3.62

9

8

24.88

17.02

4.38

0.25

0.25

SR100570

4

150

338

5.5

4.26

14.5

4

10

9

25.68

18

4.56

0.25

0.25
