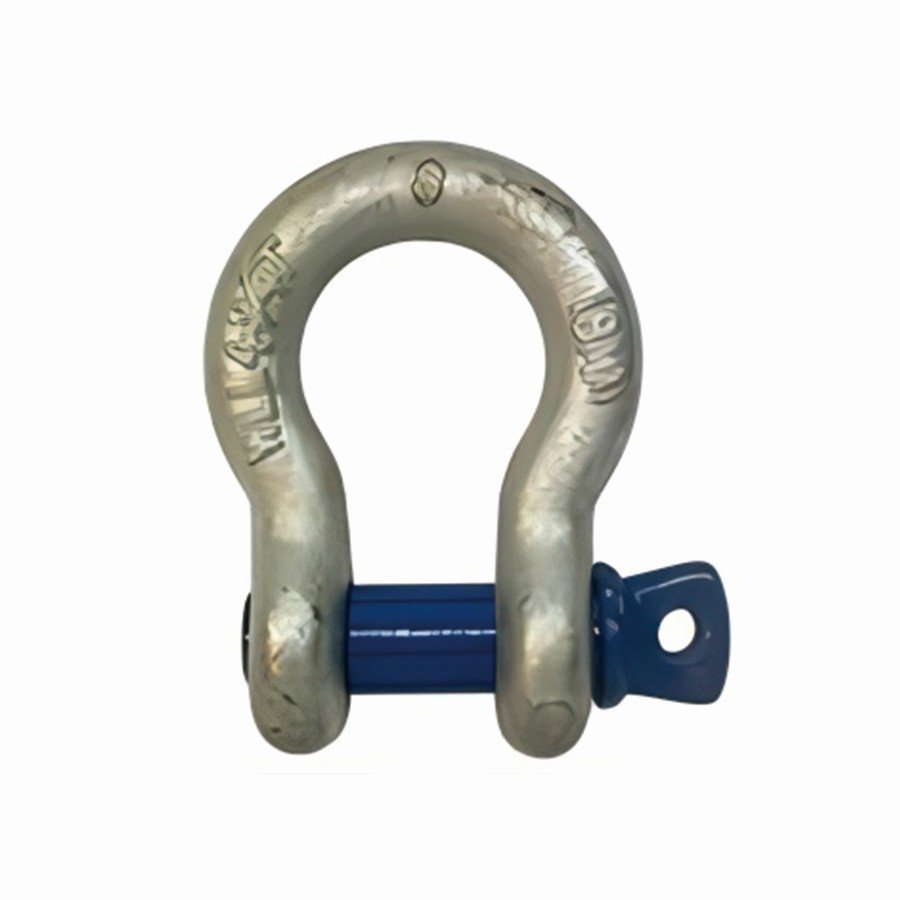

Grade S Bow Shackle With Screw Pin AS2741

3
Your current location:
Grade S Bow Shackle With Screw Pin AS2741

Grade S Bow Shackle With Screw Pin AS2741

Hot dip galvainzed surface finished.

Body forged carbon steel, and pin forged alloy steel.

Test load is 2.2times working load limit.

Ultimate load is 6times working load limit.


Product Description

  ITEM

Nominal

Working

Weight

Dimensions (in.)

Tolerance+/-

    NO.

Size(in.)

LoadLimit(t)*

Each(lbs.)

A

B

C

D

E

F

G

H

L

M

P

C

A

SR100501

3/16

1/3

0.06

0.38

0.25

0.88

0.19

0.6

0.56

0.98

1.47

0.16

1.12

0.19

0.06

0.06

SR100502

1/4

1/2

0.1

0.47

0.31

1.13

0.25

0.78

0.61

1.28

1.84

0.19

1.38

0.25

0.06

0.06

SR100503

5/16

3/4

0.19

0.53

0.38

1.22

0.31

0.84

0.75

1.47

2.09

0.22

1.66

0.31

0.06

0.06

SR100504

3/8

1

0.31

0.66

0.44

1.44

0.38

1.03

0.91

1.78

2.49

0.25

2.03

0.38

0.13

0.06

SR100505

7/16

1-1/2

0.38

0.75

0.5

1.69

0.44

1.16

1.06

2.03

2.91

0.31

2.38

0.44

0.13

0.06

SR100506

1/2

2

0.72

0.81

0.63

1.88

0.5

1.31

1.19

2.31

3.28

0.38

2.69

0.5

0.13

0.06

SR100507

5/8

3-1/4

1.37

1.06

0.75

2.38

0.63

1.69

1.5

2.94

4.19

0.44

3.34

0.69

0.13

0.06

SR100508

3/4

4-3/4

2.35

1.25

0.88

2.81

0.75

2

1.81

3.5

4.97

0.5

3.97

0.81

0.25

0.06

SR100509

7/8

6-1/2

3.62

1.44

1

3.31

0.88

2.28

2.09

4.03

5.83

0.5

4.5

0.97

0.25

0.06

SR100510

1

8-1/2

5.03

1.69

1.13

3.75

1

2.69

2.38

4.69

6.56

0.56

5.07

1.06

25

0.06

SR100511

1-1/8

9-1/2

7.41

1.81

1.25

4.25

1.16

2.91

2.69

5.16

7.47

0.63

5.59

1.25

0.25

0.06

SR100512

1-1/4

12

9.5

2.03

1.38

4.69

1.29

3.25

3

5.75

8.25

0.69

6.16

1.38

0.25

0.06

SR100513

1-3/8

13-1/2

13.53

2.25

1.5

5.25

1.42

3.63

3.31

6.38

9.16

0.75

6.84

1.5

0.25

0.13

SR100514

1-1/2

17

17.2

2.38

1.63

5.75

1.54

3.88

3.63

6.88

10

0.81

7.35

1.62

0.25

0.13

SR100515

1-3/4

25

27.78

2.88

2

7

1.84

5

4.19

8.86

12.34

1

9.08

2.25

0.25

0.13

SR100516

2

35

45

3.25

2.25

7.75

2.08

5.75

4.81

9.97

13.68

1.22

10.34

2.4

0.25

0.13

SR100517

2-1/2

55

85.75

4.13

2.75

10.5

2.71

7.25

5.69

12.87

17.84

1.38

13

3.13

0.25

0.25
