Material: Alloy Steel
Finishing: Hot Dip Galvanized/ Galvanized/ Self Colored
Heat treated: Tempered and Quenched
Minimun Utimate Strength: 6 Times /4 Times The Working Load Limit.
Packing: Gunny Bag / Carton, pallet

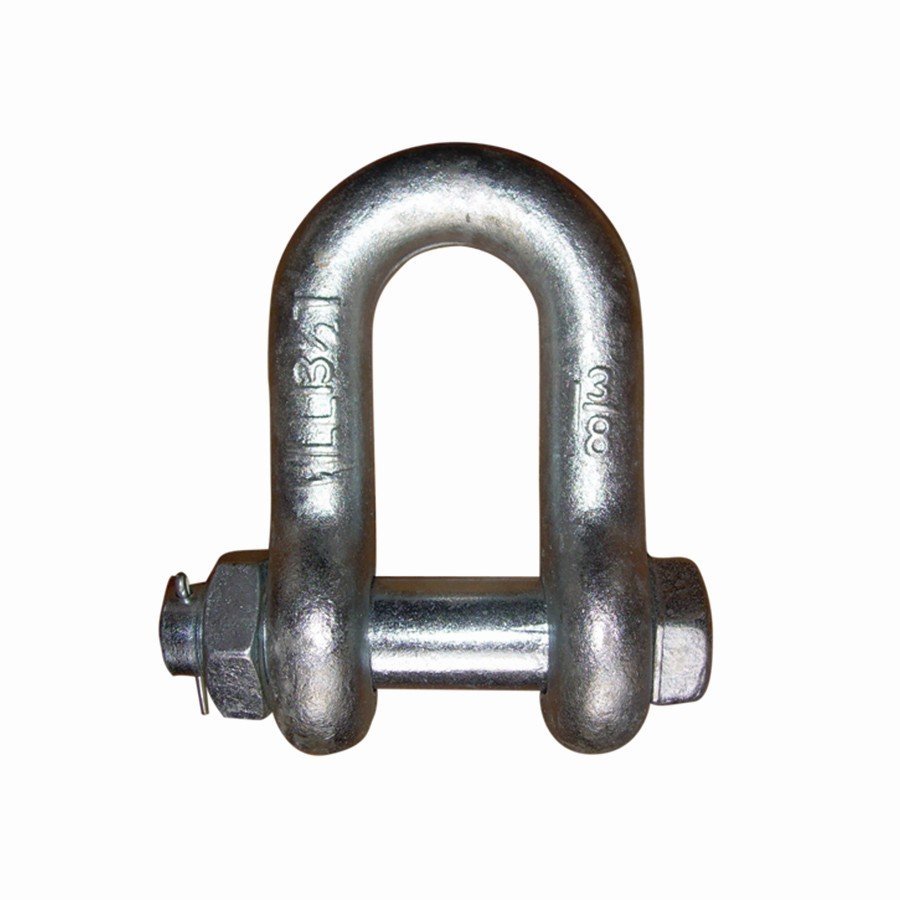

US Type Bolt Anchor Shackle G2150
Material: Alloy Steel
Finishing: Hot Dip Galvanized/ Galvanized/ Self Colored
Heat treated: Tempered and Quenched
Minimun Utimate Strength: 6 Times /4 Times The Working Load Limit.
Packing: Gunny Bag / Carton, pallet
Product Description
ITEM NO | Nominal | Working | Dimensions | Weight | ||||||||
Size | Load | (mm) | Each | |||||||||
Limit | (kg) | |||||||||||

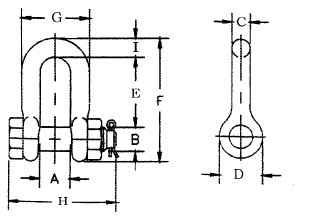

(in.) | (tons) | A | B | C | D | E | F | G | H | I | ||
SRBDS0832 | 1/4 | 1/2 | 11.90 | 7.85 | 6.35 | 15.50 | 19.10 | 40.40 | 24.60 | 39.60 | 6.35 | 0.06 |
SRBDS1032 | 5/16 | 3/4 | 13.50 | 9.65 | 7.85 | 19.10 | 25.40 | 48.50 | 29.50 | 46.20 | 7.85 | 0.10 |
SRBDS1232 | 3/8 | 1 | 16.80 | 11.20 | 9.65 | 23.10 | 31.00 | 58.50 | 35.80 | 55.00 | 9.65 | 0.15 |
SRBDS1432 | 7/16 | 1-1/2 | 19.10 | 12.70 | 11.20 | 26.90 | 36.10 | 67.50 | 41.10 | 63.50 | 11.20 | 0.22 |
SRBDS1632 | 1/2 | 2 | 20.60 | 16.00 | 12.70 | 30.20 | 41.40 | 77.00 | 46.00 | 71.00 | 12.70 | 0.34 |
SRBDS2032 | 5/8 | 3-1/4 | 26.90 | 19.10 | 16.00 | 38.10 | 51.00 | 95.50 | 58.50 | 89.50 | 16.00 | 0.67 |
SRBDS2432 | 3/4 | 4-3/4 | 31.80 | 22.40 | 19.10 | 46.00 | 60.50 | 115.00 | 70.00 | 103.00 | 20.60 | 1.14 |
SRBDS2832 | 7/8 | 6-1/2 | 36.60 | 25.40 | 22.40 | 53.00 | 71.50 | 135.00 | 81.00 | 120.00 | 24.60 | 1.74 |
SRBDS3232 | 1 | 8-1/2 | 42.90 | 28.70 | 25.40 | 60.50 | 81.00 | 151.00 | 93.50 | 135.00 | 25.40 | 2.52 |
SRBDS3632 | 1-1/8 | 9-1/2 | 46.00 | 31.80 | 28.70 | 68.50 | 91.00 | 172.00 | 103.00 | 150.00 | 31.80 | 3.45 |
SRBDS4032 | 1-1/4 | 12 | 51.50 | 35.10 | 31.80 | 76.00 | 100.00 | 191.00 | 115.00 | 165.00 | 35.10 | 4.90 |
SRBDS4432 | 1-3/8 | 13-1/2 | 57.00 | 38.10 | 35.10 | 84.00 | 111.00 | 210.00 | 127.00 | 183.00 | 38.10 | 6.24 |
SRBDS4832 | 1-1/2 | 17 | 60.50 | 41.40 | 38.10 | 92.00 | 122.00 | 230.00 | 137.00 | 196.00 | 41.10 | 8.39 |
SRBDS5632 | 1-3/4 | 25 | 73.00 | 51.00 | 44.50 | 106.00 | 146.00 | 279.00 | 162.00 | 230.00 | 54.00 | 14.20 |
SRBDS6432 | 2 | 35 | 82.50 | 57.00 | 51.00 | 122.00 | 172.00 | 312.00 | 184.00 | 264.00 | 51.00 | 21.20 |
SRBDS8032 | 2-1/2 | 55 | 105.00 | 70.00 | 66.50 | 145.00 | 203.00 | 377.00 | 238.00 | 344.00 | 66.50 | 38.60 |
SRBDS9632 | 3 | 85.00 | 127.00 | 82.50 | 76.00 | 165.00 | 216.00 | 429.00 | 279.00 | 419.00 | 89.00 | 56.00 |
