Material: Alloy Steel
Finishing: Hot Dip Galvanized/ Galvanized/ Self Colored
Heat treated: Tempered and Quenched
Minimun Utimate Strength: 6 Times /4 Times The Working Load Limit.
Packing: Gunny Bag / Carton, pallet

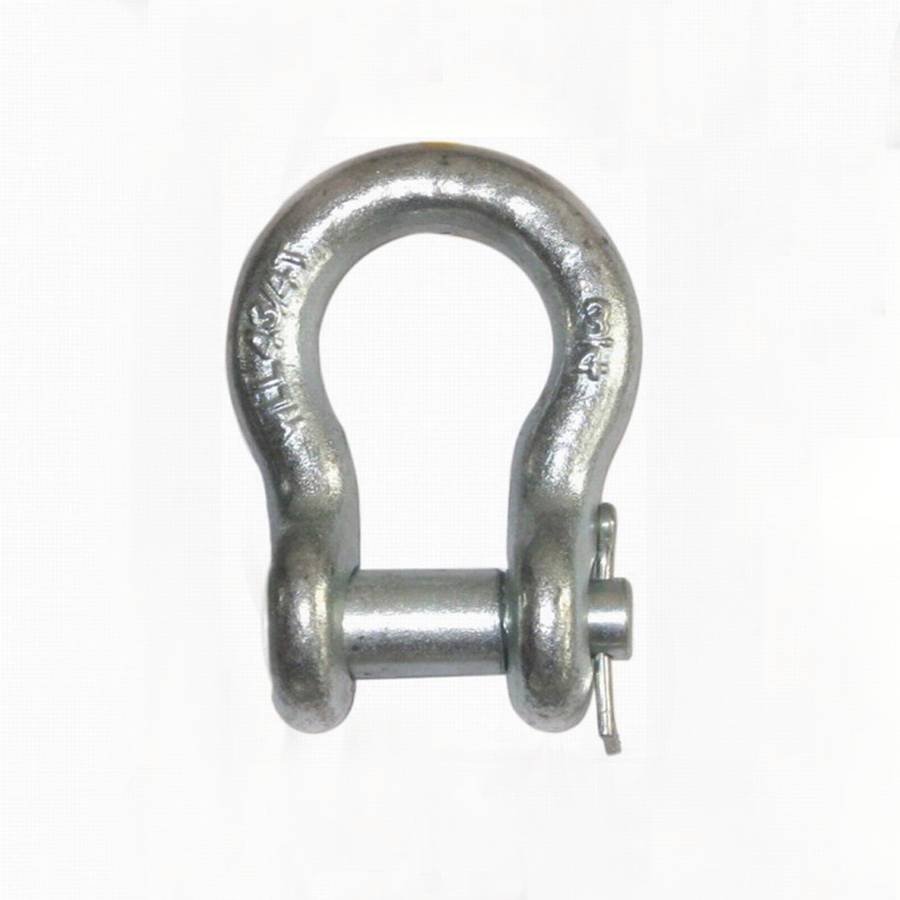

US Type Screw Pin Anchor Shackle G213
Material: Alloy Steel
Finishing: Hot Dip Galvanized/ Galvanized/ Self Colored
Heat treated: Tempered and Quenched
Minimun Utimate Strength: 6 Times /4 Times The Working Load Limit.
Packing: Gunny Bag / Carton, pallet
Product Description
ITEM NO | Nominal | Working | Dimensions | Weight | |||||||||
Size | Load | (mm) | Each | ||||||||||
Limit | (kg) | ||||||||||||
(in.) | (tons) | A | B | C | D | E | F | G | H | N | P | ||
SRBSC0832 | 1/4 | 1/2 | 11.90 | 7.85 | 28.70 | 6.35 | 19.80 | 15.50 | 32.50 | 46.70 | 34.00 | 6.35 | 0.06 |
SRBSC1032 | 5/16 | 3/4 | 13.50 | 9.65 | 31.00 | 7.85 | 21.30 | 19.10 | 37.30 | 53.00 | 40.40 | 7.85 | 0.08 |
SRBSC1232 | 3/8 | 1 | 16.80 | 11.20 | 36.60 | 9.65 | 26.20 | 23.10 | 45.20 | 63.00 | 47.20 | 9.65 | 0.13 |
SRBSC1432 | 7/16 | 1-1/2 | 19.10 | 12.70 | 42.90 | 11.20 | 29.50 | 26.90 | 51.50 | 74.00 | 54.00 | 11.20 | 0.17 |
SRBSC1632 | 1/2 | 2 | 20.60 | 16.00 | 47.80 | 12.70 | 33.30 | 30.20 | 58.50 | 83.50 | 60.50 | 12.70 | 0.32 |
SRBSC2032 | 5/8 | 3-1/4 | 26.90 | 19.10 | 60.50 | 16.00 | 42.90 | 38.10 | 74.50 | 103.00 | 74.00 | 16.00 | 0.68 |
SRBSC2432 | 3/4 | 4-3/4 | 31.80 | 22.40 | 71.50 | 19.10 | 51.00 | 46.00 | 89.00 | 126.00 | 87.00 | 20.60 | 1.05 |
SRBSC2832 | 7/8 | 6-1/2 | 36.60 | 25.40 | 84.00 | 22.40 | 58.00 | 53.00 | 102.00 | 148.00 | 96.50 | 24.60 | 1.58 |
SRBSC3232 | 1 | 8-1/2 | 42.90 | 28.70 | 95.50 | 25.40 | 68.50 | 60.50 | 119.00 | 167.00 | 115.00 | 25.40 | 2.27 |
SRBSC3632 | 1-1/8 | 9-1/2 | 46.00 | 31.80 | 108.00 | 28.70 | 74.00 | 68.50 | 131.00 | 190.00 | 130.00 | 31.80 | 3.16 |
SRBSC4032 | 1-1/4 | 12 | 51.50 | 35.10 | 119.00 | 31.80 | 82.50 | 76.00 | 146.00 | 210.00 | 140.00 | 35.10 | 4.42 |
SRBSC4432 | 1-3/8 | 13-1/2 | 57.00 | 38.10 | 133.00 | 35.10 | 92.00 | 84.00 | 162.00 | 233.00 | 156.00 | 38.10 | 6.01 |
SRBSC4832 | 1-1/2 | 17 | 60.50 | 41.40 | 146.00 | 38.10 | 98.50 | 92.00 | 175.00 | 254.00 | 165.00 | 41.10 | 7.82 |
SRBSC5632 | 1-3/4 | 25 | 73.00 | 51.00 | 178.00 | 44.50 | 127.00 | 106.00 | 225.00 | 313.00 | 197.00 | 54.00 | 13.40 |
SRBSC6432 | 2 | 35 | 82.50 | 57.00 | 197.00 | 51.00 | 146.00 | 122.00 | 253.00 | 348.00 | 222.00 | 51.00 | 20.80 |
