Material: steel and stainless steel
Standards: DIN94 and IFI
Spring, dowel, lynch, lock and double loop hairpins are also available
Non-standard are also available

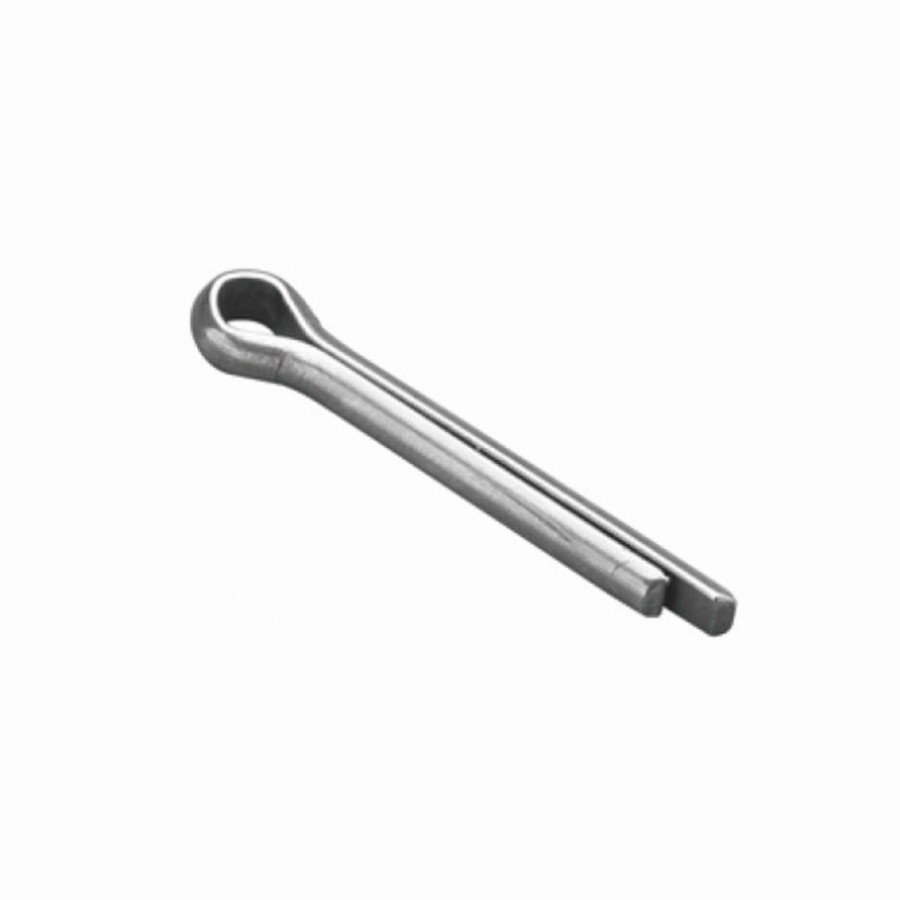

Spring Cotter Pin, Split Pins
Material: steel and stainless steel
Standards: DIN94 and IFI
Spring, dowel, lynch, lock and double loop hairpins are also available
Non-standard are also available
Product Description
d | c max | c min | b approx. | a max. |
1 | 1.5 | 1.6 | 3 | 1.6 |
1.6 | 2.8 | 2.4 | 3.2 | 2.5 |
2 | 3.6 | 3.2 | 4 | 2.5 |
2.5 | 4.6 | 4 | 5 | 2.5 |
3.2 | 5.8 | 5.1 | 6.4 | 3.2 |
4 | 7.4 | 6.5 | 8 | 4 |
5 | 9.2 | 8 | 10 | 4 |
6.3 | 11.8 | 10.3 | 12.6 | 4 |
8 | 15 | 13.1 | 16 | 4 |
10 | 19 | 16.6 | 20 | 6.3 |
12 | 24.8 | 21.7 | 26 | 6.3 |
*All measurements in millimeters (mm)*
Fasteners such as Threaded Rods ASTM A193-B7/B7M, B16 Heavy Hex Nuts A194 Gr. 2H/2HM, Gr. 7/7M, A563 Nuts, ASTM A325, A490 Structural Bolts, ASTM F436M Washers, Hex Nuts DIN934 and other metal parts with standard of ASTM, DIN, ANSI, etc.
Provide special fasteners according to customers’ drawing or samples.
