Materials: nylon, carbon steel and stainless steel
Sizes: M3-M27
Surface treatments: plain, black, brass, nickel and zinc plating
Standards: DIN and GB
Grades: 4, 5, 6, 8, 10 and 12

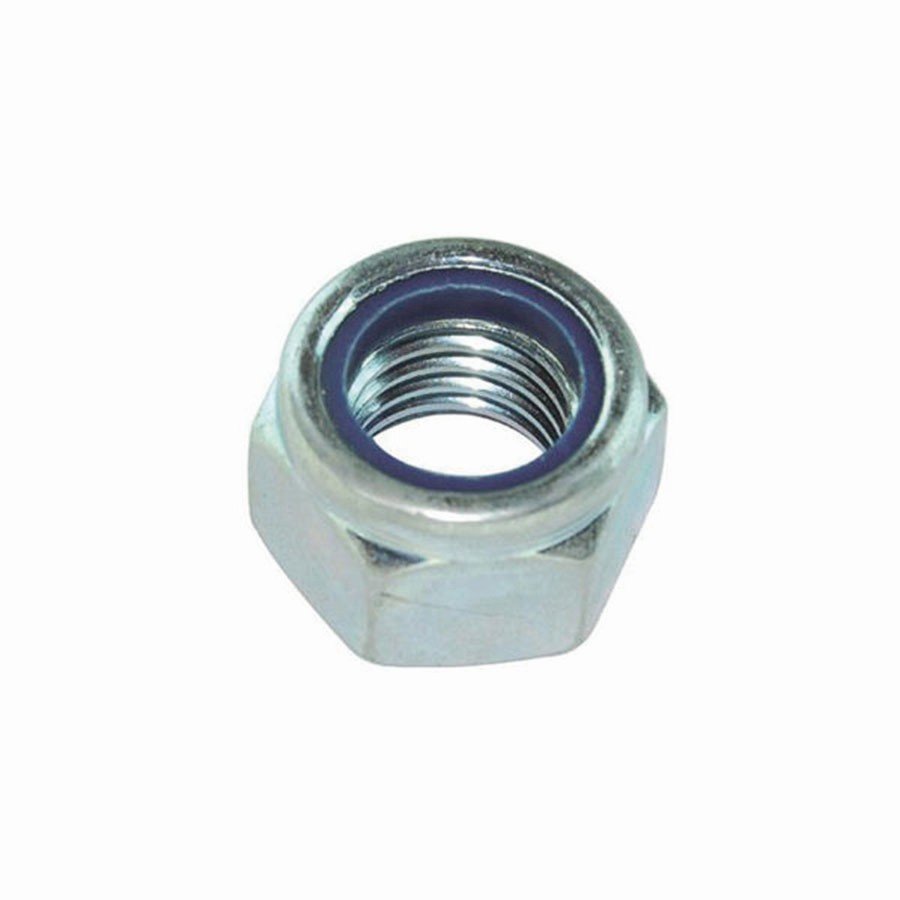

DIN985 Hex Nylon Self Locking Nut
Materials: nylon, carbon steel and stainless steel
Sizes: M3-M27
Surface treatments: plain, black, brass, nickel and zinc plating
Standards: DIN and GB
Grades: 4, 5, 6, 8, 10 and 12
Product Description
d | k | e | s |
M3 | 2 | 6.01 | 5.5 |
M4 | 2.8 | 7.66 | 7 |
M5 | 3.5 | 8.79 | 8 |
M6 | 4 | 11.05 | 10 |
M8 | 5.3 | 14.38 | 13 |
M10 | 6.4 | 18.9 | 17 |
M12 | 7.5 | 21.1 | 19 |
M14 | 8.8 | 24.49 | 22 |
M16 | 10 | 26.75 | 24 |
M18 | 11.5 | 30.14 | 27 |
M20 | 12.5 | 33.53 | 30 |
M22 | 14 | 35.72 | 32 |
M24 | 15 | 39.98 | 36 |
M27 | 17 | 45.2 | 41 |
M30 | 18.7 | 50.85 | 46 |
Fasteners such as Threaded Rods ASTM A193-B7/B7M, B16 Heavy Hex Nuts A194 Gr. 2H/2HM, Gr. 7/7M, A563 Nuts, ASTM A325, A490 Structural Bolts, ASTM F436M Washers, Hex Nuts DIN934 and other metal parts with standard of ASTM, DIN, ANSI, etc.
Provide special fasteners according to customers’ drawing or samples.
