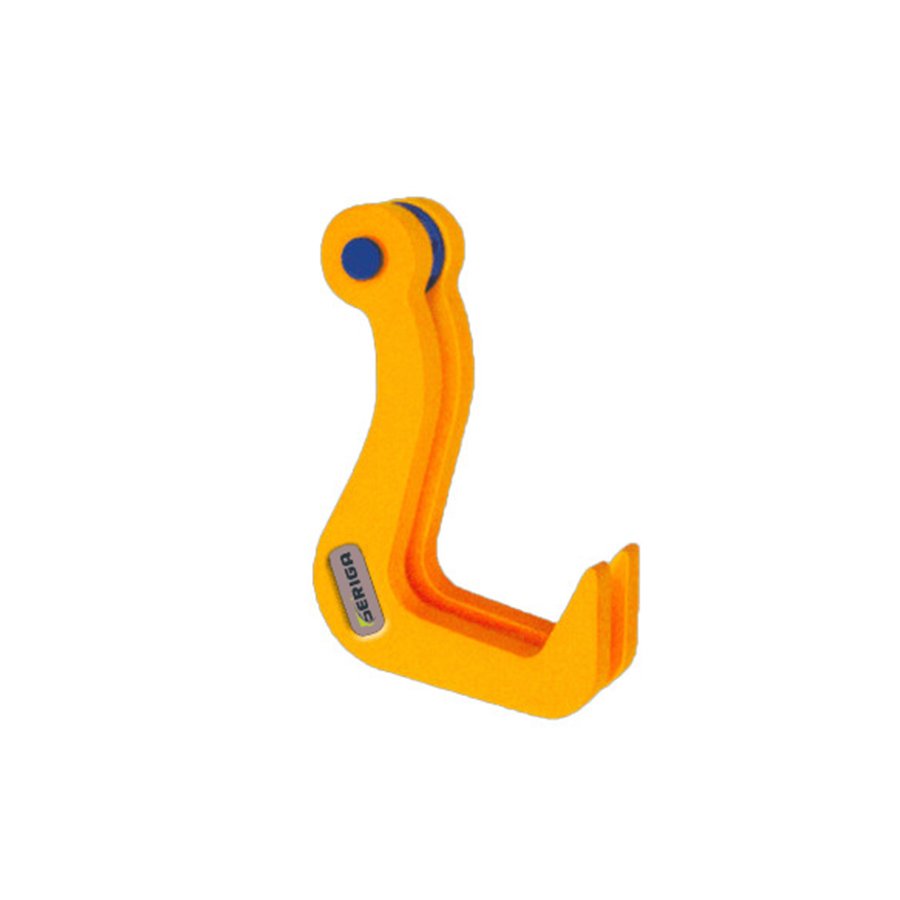

QS Series Double Steel Plate Lifting Clamps

QS Series Double Steel Plate Lifting Clamps

Use: Apply for the hoist of the horizon of the steel plate,I-steel and section steel.

Load range: 0-7tons

It is manufactured by low-carbon hi-quality alloy steel.

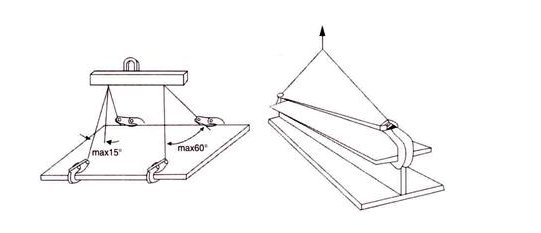

To test two of the rated load and lifting operations two or four group use.

During the hoist,hung articles are forbidden collision.

Don’t overload to use.

Product Description

Model

Biggest Work Load (t/2)

Aperture Size(mm)

Weight(kg)

QS1

1

0-40

2

QS2

2

0-50

3.5

QS3.2

3.2

0-60

6

QS5

5

0-70

14.5

QS7

7

0-90

22
