PDQ Single Steel Plate Lifting Clamps

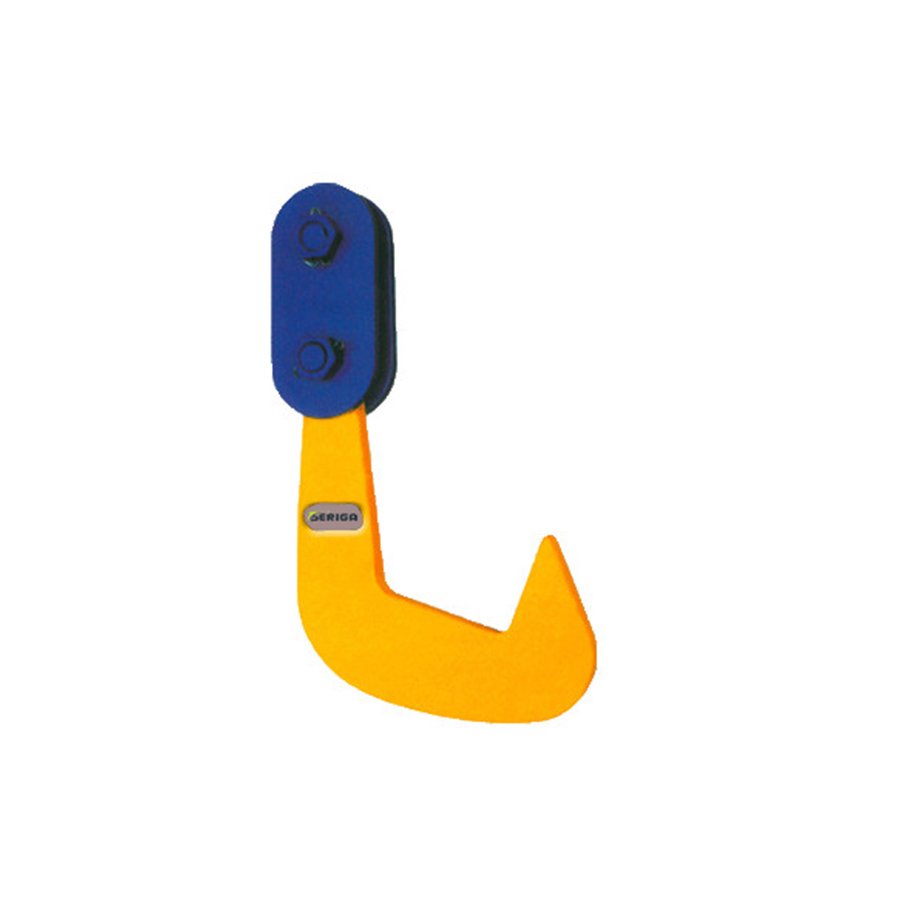

PDQ Single Steel Plate Lifting Clamps

Use: apply for steel-plate horizontal hoist

Load range:0-12tons

It is manufactured by low-carbon hi-quality alloy steel

Rated load caused by 2 tests is regarded as the standard,and four complementary use during the hoist.

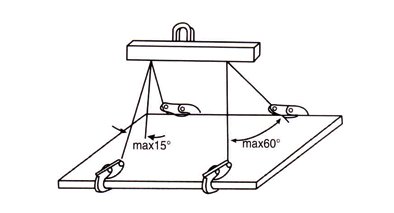

It must be used with the balance beam.During the hoist,hung articles are forbidden collision.

Unhook automatically

Test load is the max.operation load of 2 times.

Don’t overload to use.

Product Description

Model

Biggest Work Load (t/2)

Aperture Size(mm)

Weight(kg)

QS1

1

0-40

2

QS2

2

0-50

3.5

QS3.2

3.2

0-60

6

QS5

5

0-70

14.5

QS7

7

0-90

22
