Light Champion Double Snatch Block H418 H419

Light Champion Double Snatch Block H418 H419

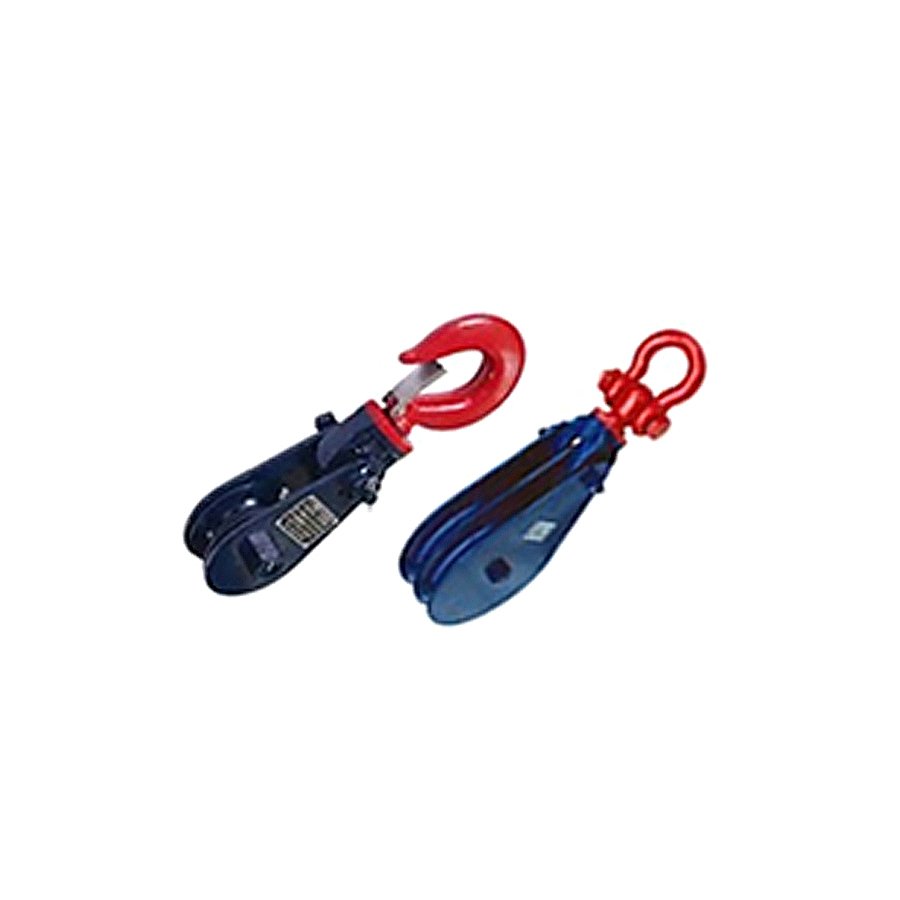

H419 snatch block with shackle

H418 snatch block with hook

Ultimate Load is 4 times the Working Load Limit.
Available in Bronze Bushed Only. May be furnished in other Wire Rope sizes.

Light champion snatch block as a double sheave block.

Drop forged swivel hook or swivel shackle.

Can be furnished with bronze bushings or roller bearings.

Opening feature permits easy insertion of wire rope in both sheaves with removal of one bolt.

Can be furnished with SS-4055 hook latch.

Pressure lube fittings.

Fatigue rated.

Product Description

1).  H419 Swivel Shackle Double Snatch Block With Shackle ( H419 Type)

Code

Size

S.W.L.

Dia of Rope

N.W.

(in)

(ton)

(in)

(kg)

SJR0905S

4 1/2

4

1/2”

11

SJR0906S

6

12

3/4”

23

SJR0908S

8

12

3/4”

28

SJR0910S

10

12

3/4”

40

SJR0912S

12

12

3/4”

53

SJR0914S

14

12

3/4”

66

SJR0916S

16

15

7/8”

108

SJR0918S

18

15

1

130

2).  H418 Swivel Shackle Double Snatch Block With Hook ( H418Type)

Code

Size

S.W.L.

Dia of Rope

N.W.

(in)

(ton)

(in)

(kg)

SJ0805H

4 1/2

4

1/2”

9.5

SJ0806H

6

12

3/4”

22

SJ0808H

8

12

3/4”

26

SJ08010H

10

12

3/4”

46

SJ0812H

12

12

3/4”

50

SJ0814H

14

12

3/4”

56

SJ0816H

16

15

7/8”

101

SJ0818H

18

15

1

116
